Honda Truck
>>
2003
>>
Element 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Splice and Junction Connector Details
>>

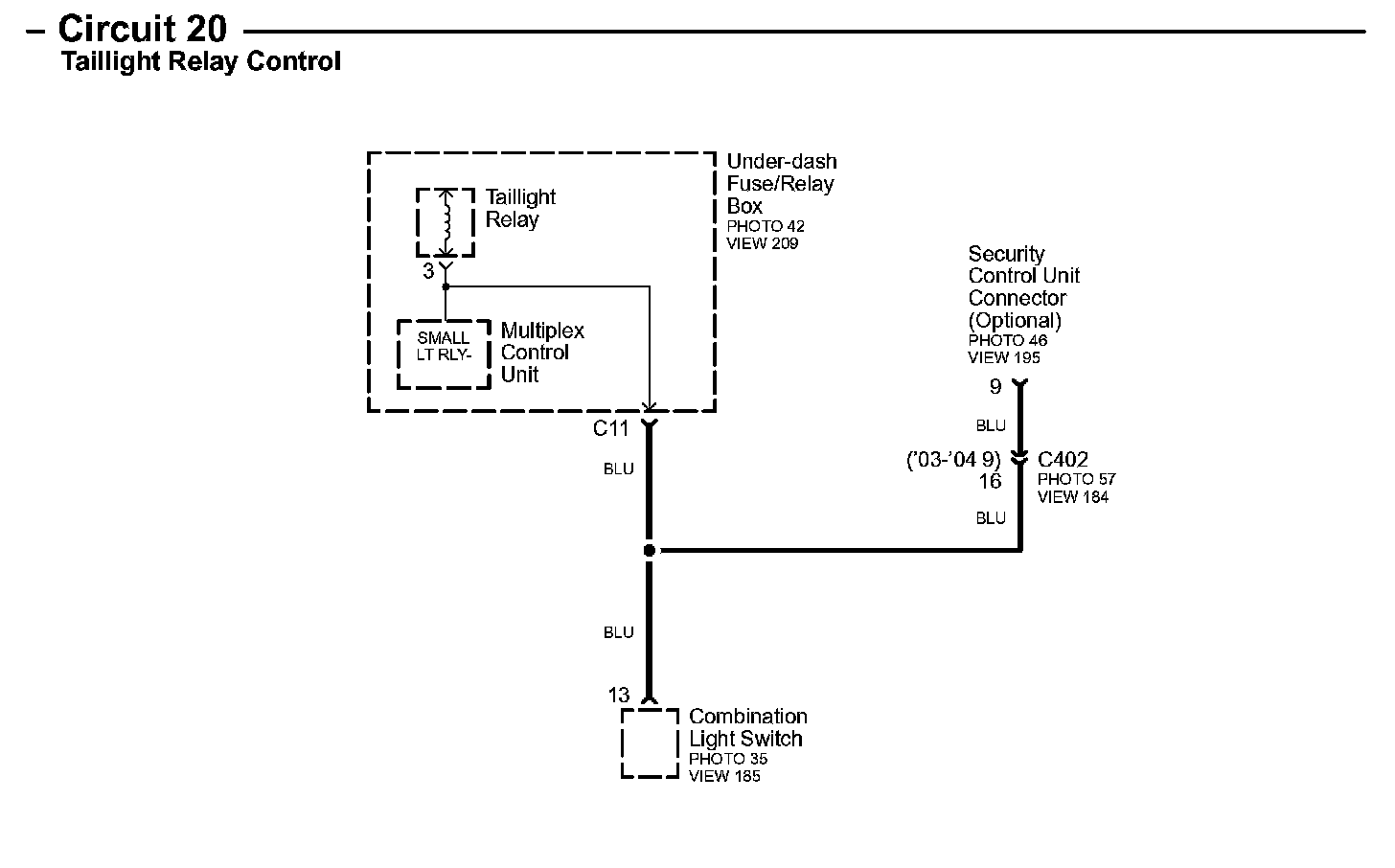

Circuit 20 Taillight Relay Control
Circuit 20 Taillight Relay Control
Circuit 20 Taillight Relay Control:
