Home >> Honda Truck >> 2003 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 26-50 >> 44

Views 26-50: 44

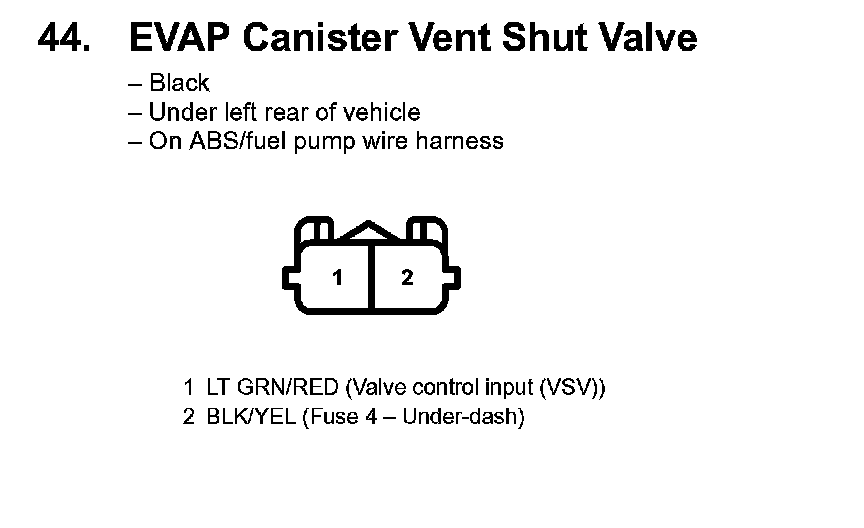

44. EVAP Canister Vent Shut Valve:
