Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda Truck
>>
2003
>>
Element 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>
Views 176-200
>>
197
Views 176-200: 197

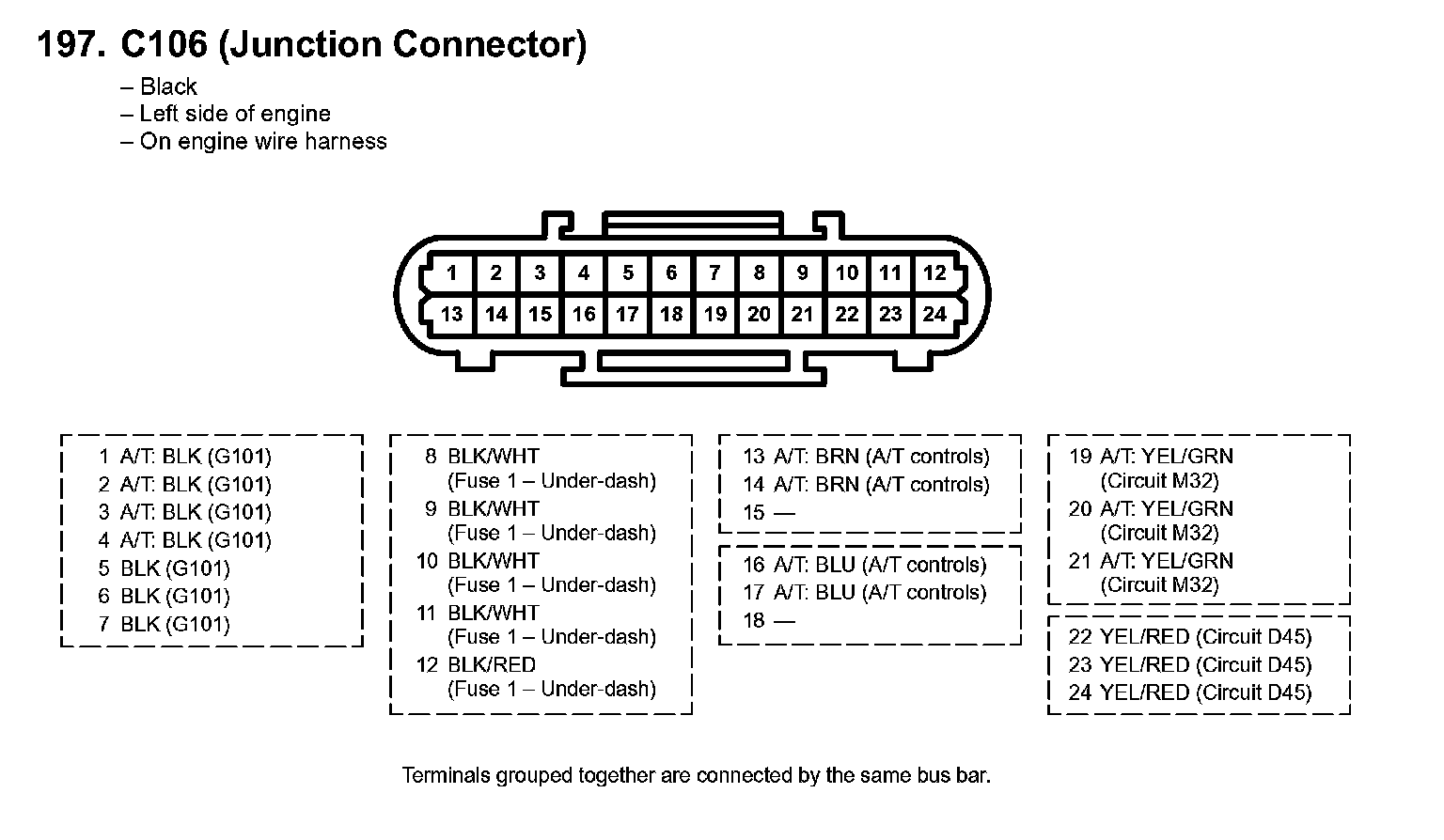

197. C106 (Junction Connector):
