Home >> Honda Truck >> 2003 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 176-200 >> 194

Views 176-200: 194

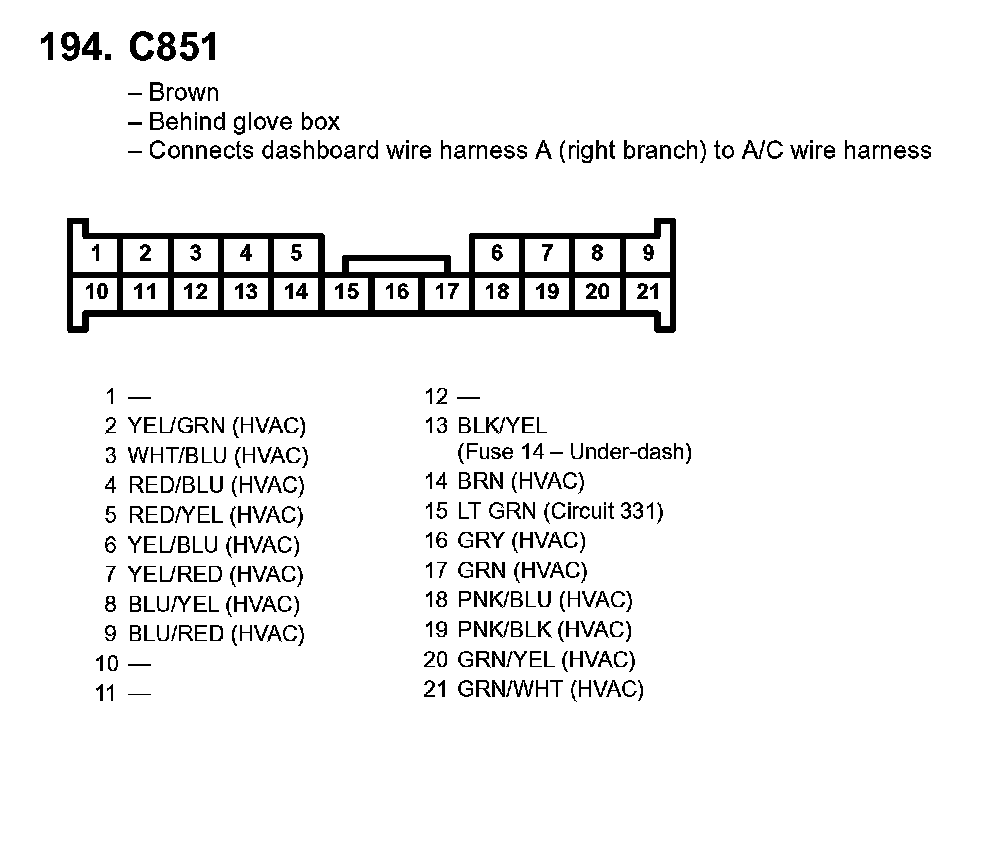

194. C851:
