ABS Indicator Does Not Come ON

ABS indicator does not come on
1. Turn the ignition switch ON (II), and watch the ABS indicator.
Does the ABS indicator come on?
YES - The system is OK at this time.
NO - Go to step 2.
2. Apply the parking brake.
Does the brake system indicator come on?
YES - Go to step 3.
NO - Repair open in the indicator power source circuit. If necessary, substitute a known-good gauge assembly, and rechecked
3. Turn the ignition switch OFF.
4. Disconnect the ABS control unit 47P connector.
5. Turn the ignition switch ON (II).
Does the ABS indicator come on?
YES - Check for loose terminals in the ABS control unit 47P connector. If necessary, substitute a known-good ABS modulator-control unit, and recheck.
NO - Go to step 6.
6. Turn the ignition switch OFF.
7. Remove the gauge assembly.
8. Disconnect gauge assembly connector A (30P).

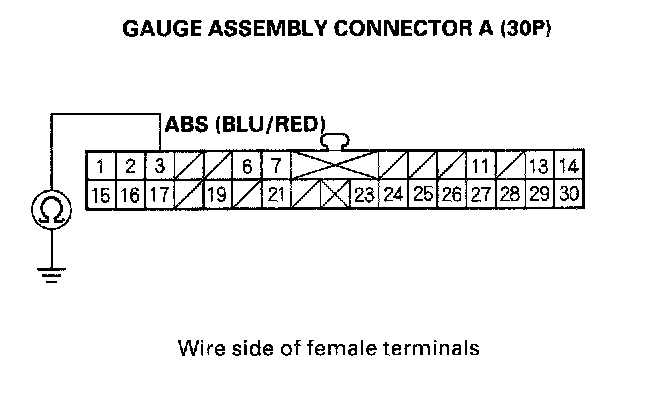

9. Check for continuity between gauge assembly connector A (30P) terminal No. 3 and body ground.
Is there continuity?
YES - Repair short to body ground in the wire between the gauge assembly and the ABS control unit.
NO - Go to step 10.

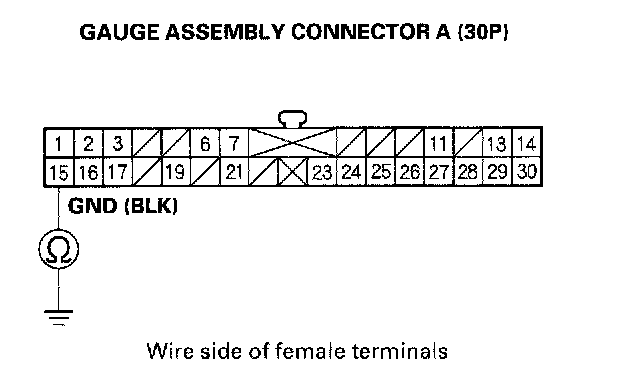

10. Cheek for continuity between gauge assembly connector A (30P) terminal No. 15 and body ground.
Is there continuity?
YES - Check for loose terminals in the gauge assembly connectors. If the terminals are OK, replace the gauge assembly.
NO - Repair open in the wire between the gauge assembly and body ground (G502). If the wire is OK, repair G502.
