Front Bumper Cover / Fascia: Service and Repair

Front Bumper Removal/Installation

NOTE:
- Have an assistant help you when removing and installing the front bumper.
- Take care not to scratch the front bumper and body.
- Put on gloves to protect your hands.

1. Remove the front grille cover.

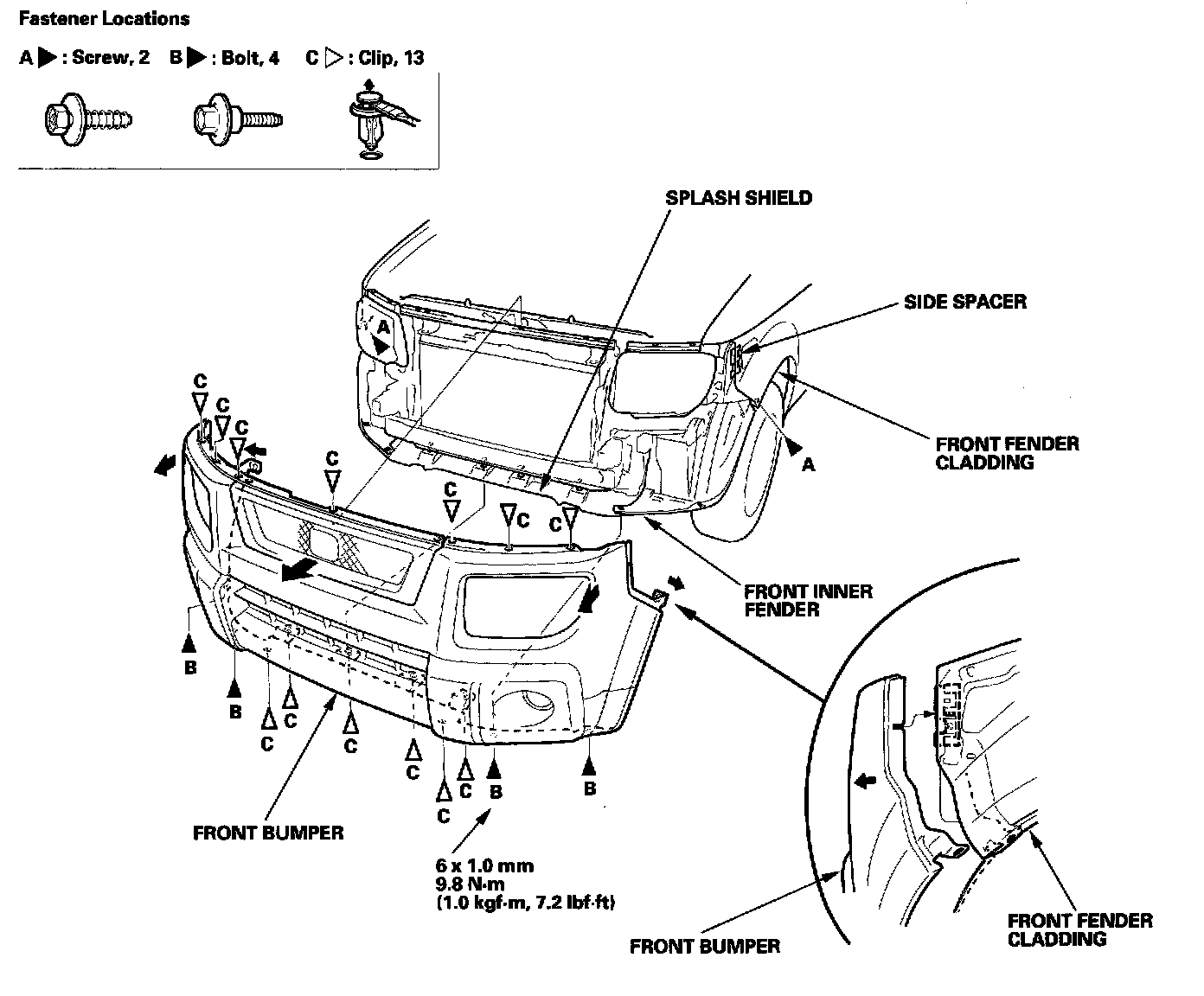

2. Remove the front bumper as shown.




3. Install the bumper in the reverse order of removal, and note these items:
- Make sure the front bumper engages the hooks of the side spacers and the front claddings on both sides securely.
- Check for damaged or stress-whitened clips, and replace them with new ones.
