Speaker: Service and Repair

Speaker Replacement

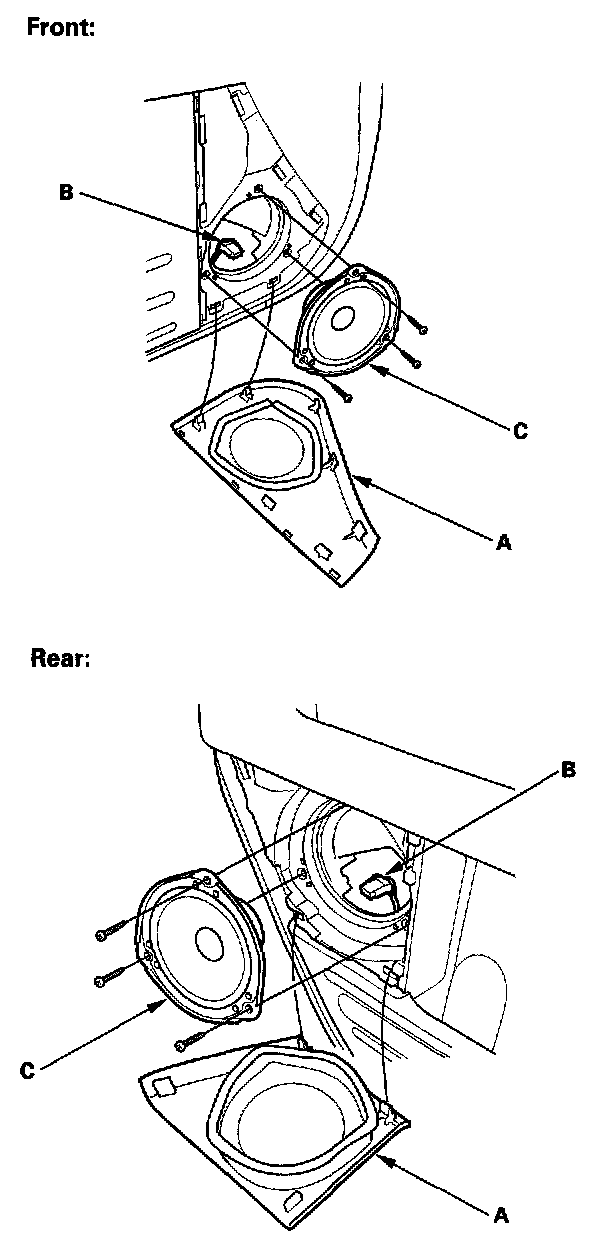

Door Speaker:

1. Remove the speaker cover (A).




2. Remove the three screws, then disconnect the 2P connector (B) from the speaker (C).

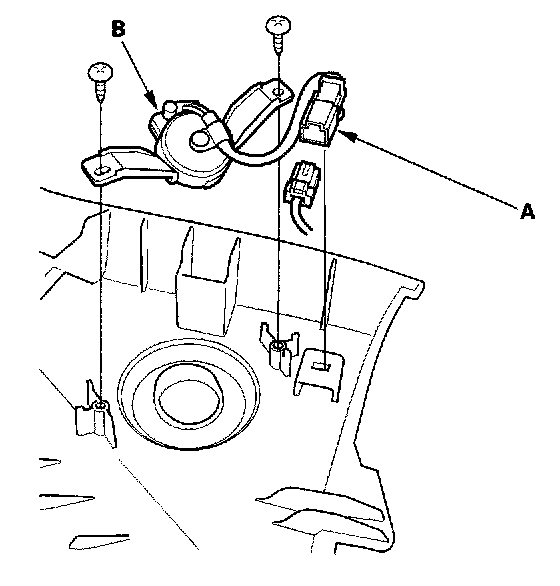

Tweeter (EX model):

1. Remove the A-pillar trim.




2. Disconnect the 2P connector (A).
3. Remove two mounting screws from the tweeter (B).

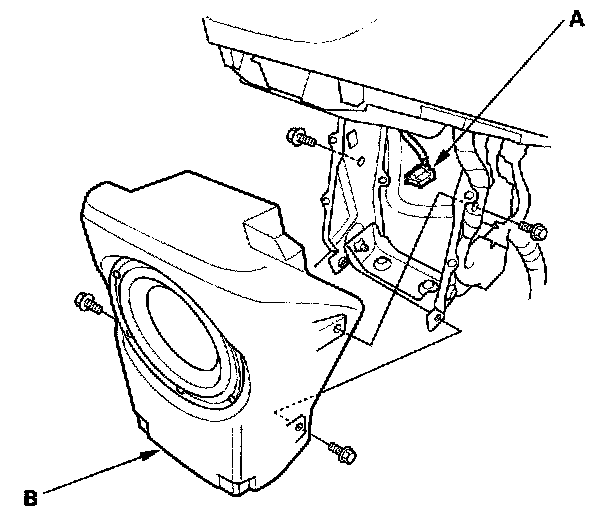

Woofer (EX model):

1. Remove the dashboard center lower cover.




2. Disconnect the 4P connector (A) from the woofer (B).
3. Remove the four mounting bolts from the woofer.
