Rear Window Wiper Lifter Replacement

Rear Window Wiper Lifter Replacement

1. Remove the tailgate lower trim panel.

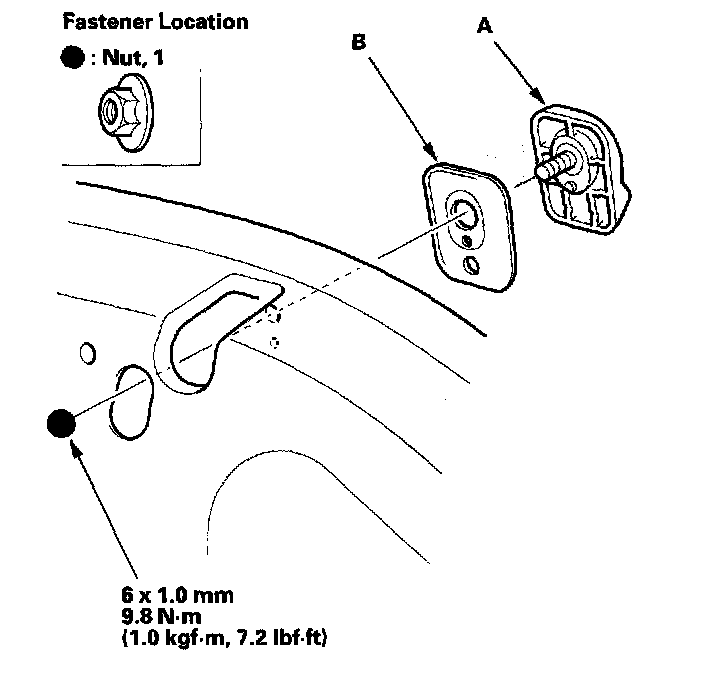

2. Remove the nut from inside the tailgate, then remove the rear window wiper lifter (A) and the seal (B).
3. Install the lifter in the reverse order of removal.
