Air Bag: Locations

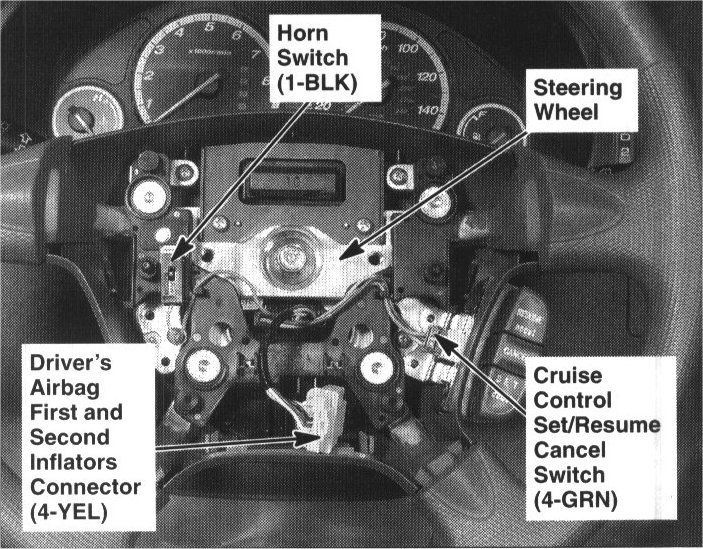

32. Steering Wheel (Airbag Inflator Removed):

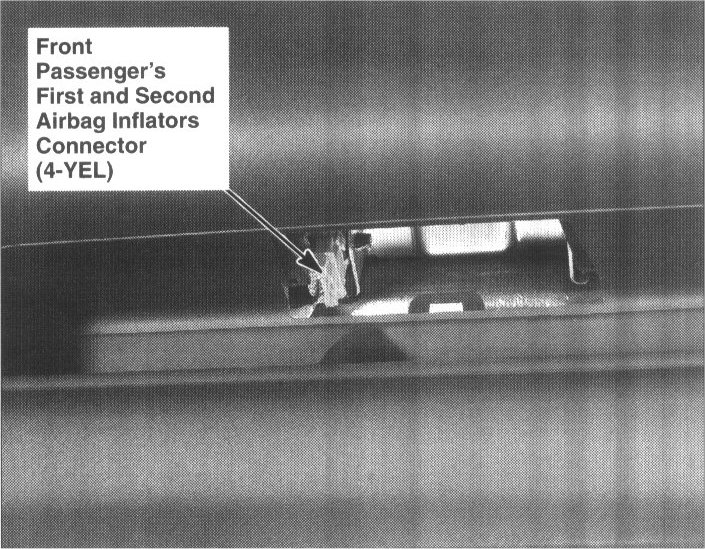

77. Under Right Side of Dash:

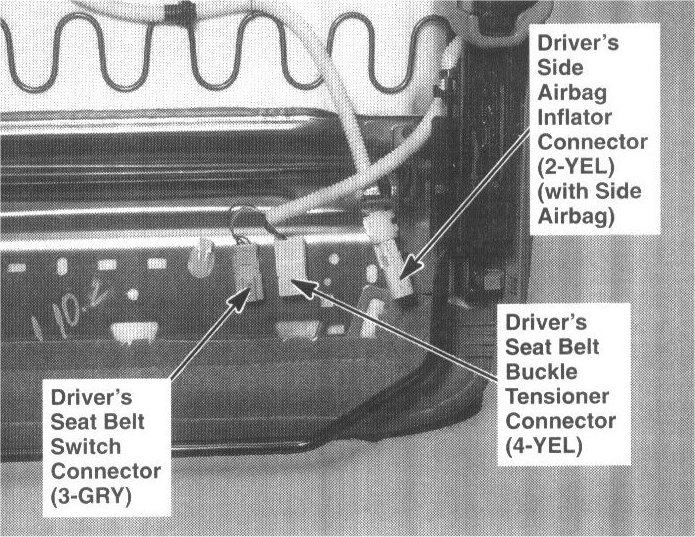

90. Under Driver's Seat:

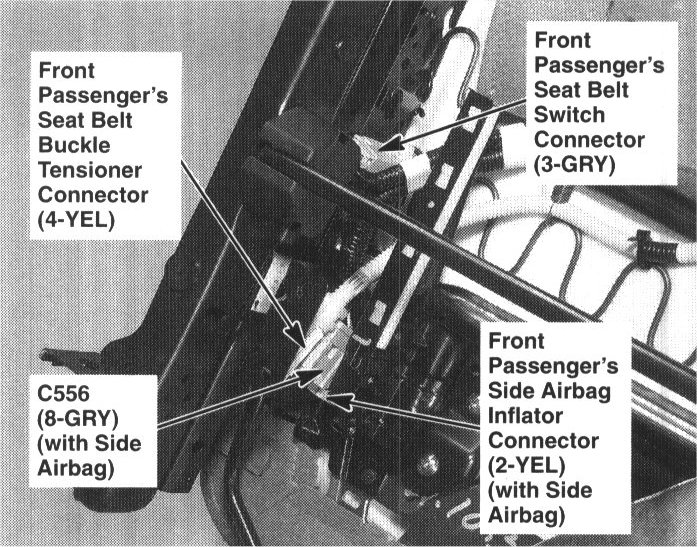

91. Under Front Passenger's Seat:
