Intake Manifold: Description and Operation

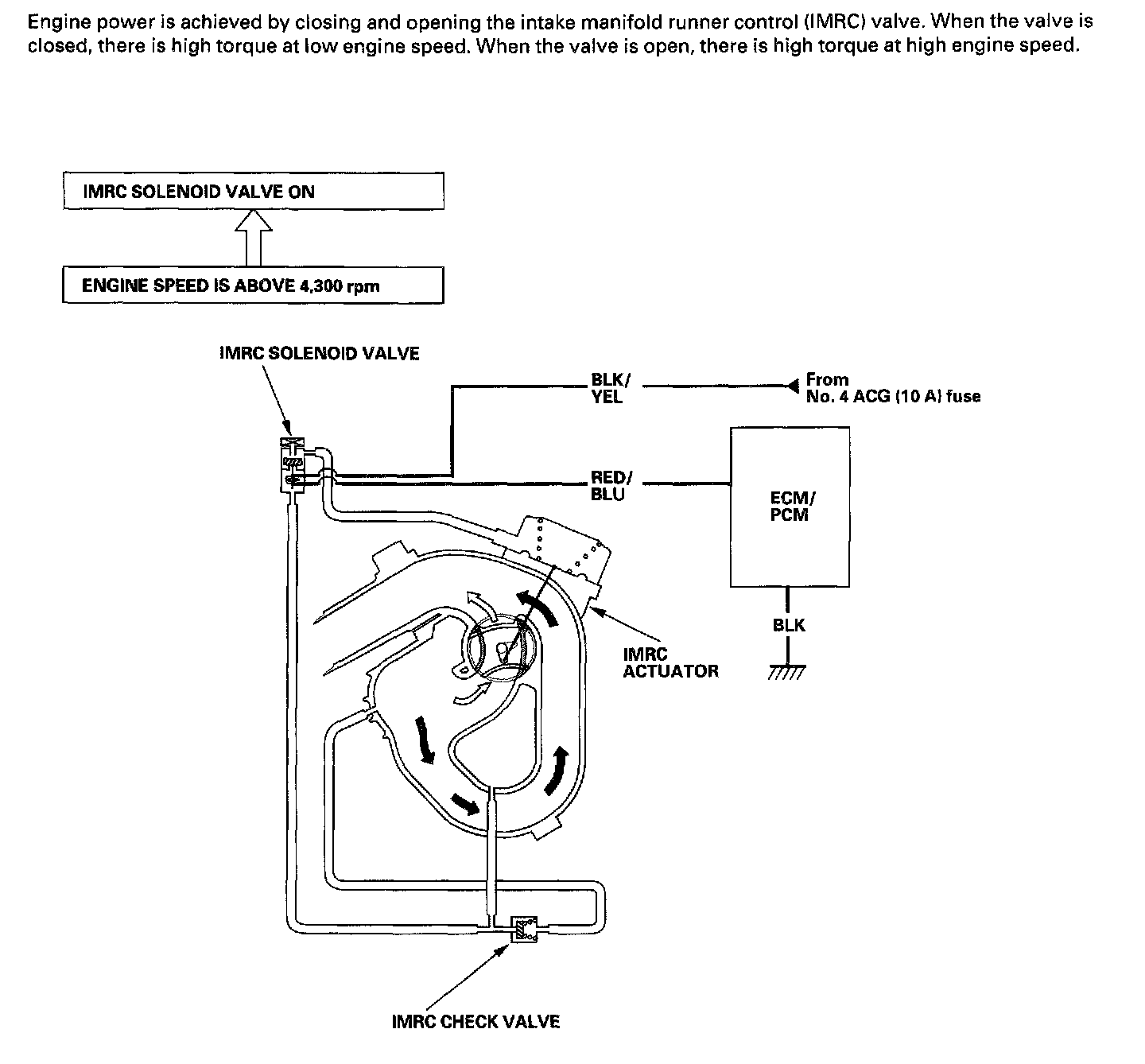

Intake Manifold Runner Control (IMRC) System:
Intake Manifold Runner Control (IMRC) System
For testing and service of this system refer to Variable Induction System.
Variable Induction System
