Circuit F20 - Sensor Ground For ECM/PCM Sensors
Circuit F20 - Sensor Ground For ECM/PCM Sensors

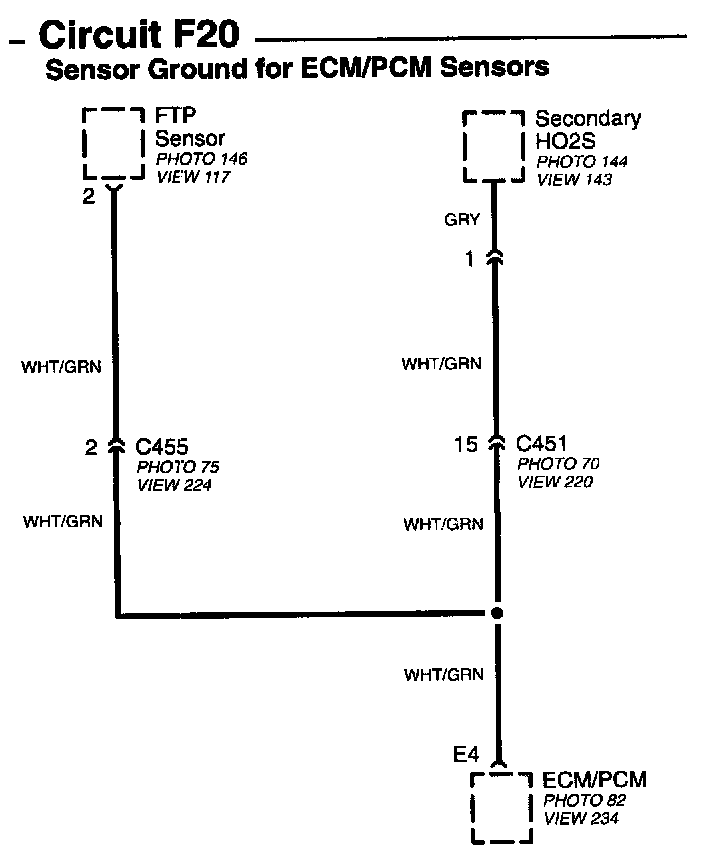

Circuit F20 - Sensor Ground For ECM/PCM Sensors:
