Right Rear Seat Cover

Right Rear Seat Cover Replacement

NOTE:
- Take care not to tear the seams or damage the seat covers.
- Put on gloves to protect your hands.

Seat-back Cover

1. Remove the right rear seat.
2. Remove the armrest.

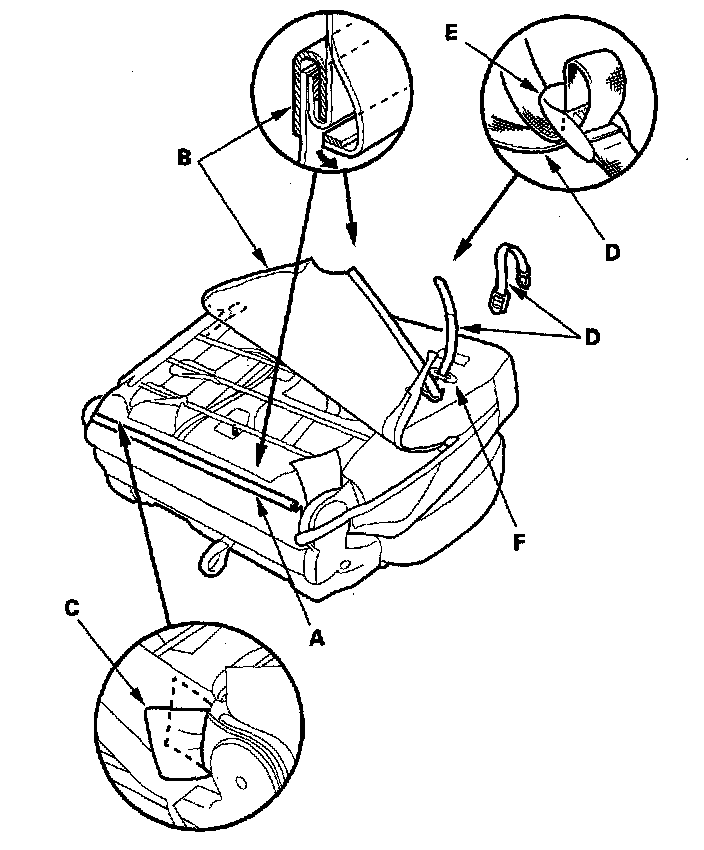

3. Release the bottom hook (A), unzip the seat-back cover (B), then fold back the cover. From between the left recline adjuster and the pad, remove a piece of cloth (C).
4. Loosen the seat-back strap (D) with the adjuster (E), and separate it into two pieces. Pull the strap secured on the seat-back frame inside the seat-back cover through the slot (F).

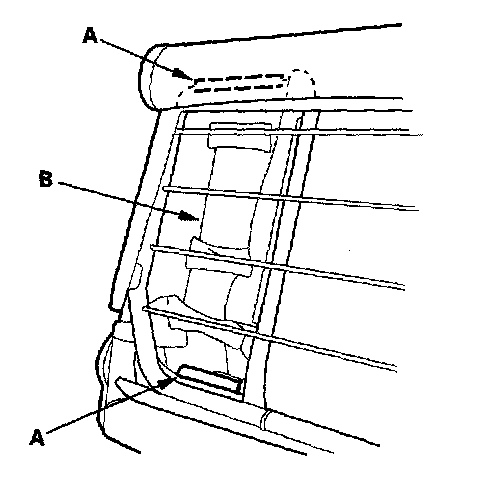

5. Release the hook strips (A) from the edge of the armrest back cover (B).

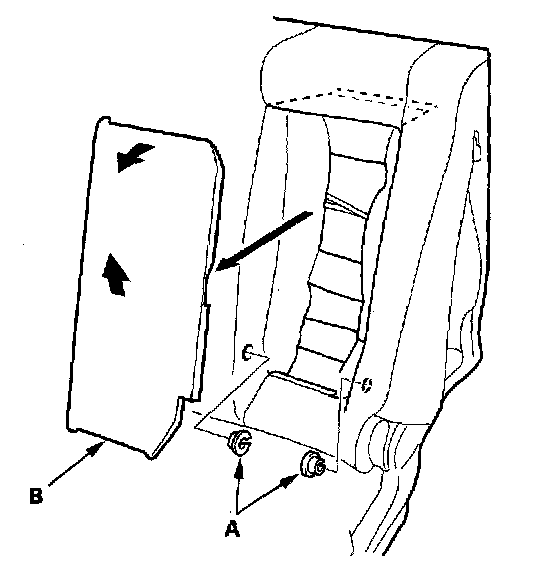

6. From the front of the seat-back, remove the armrest collars (A) and armrest back cover (B).

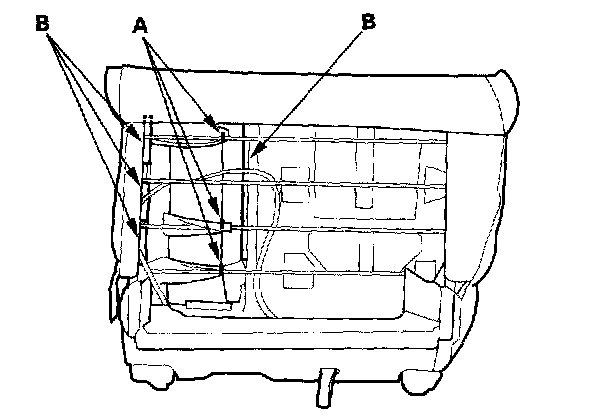

7. Release the clips (A) and hook strips (B) from the back of the seat-back.

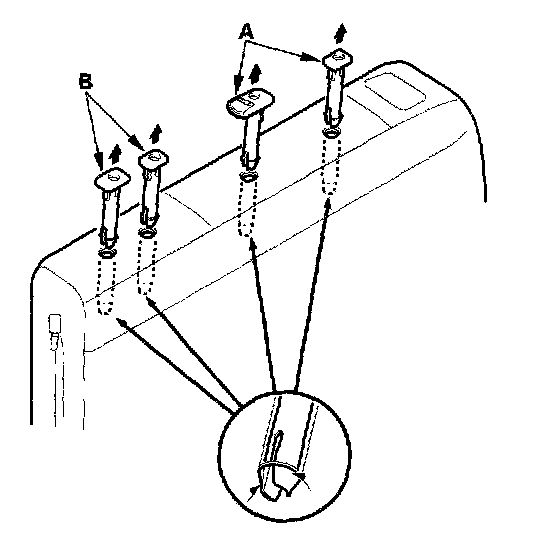

8. Pull out the headrest guides (A) and center headrest guides (B) while pinching the end of the guides, and remove them.

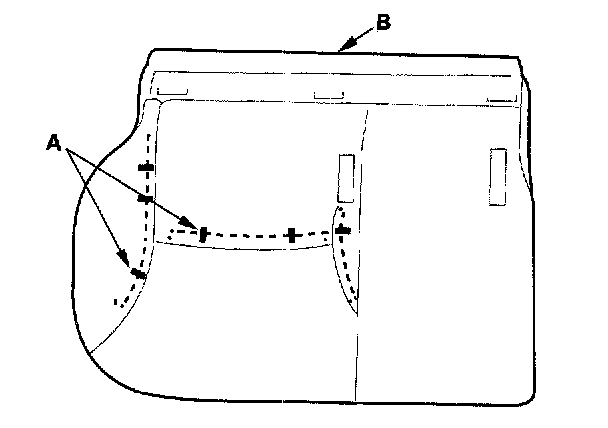

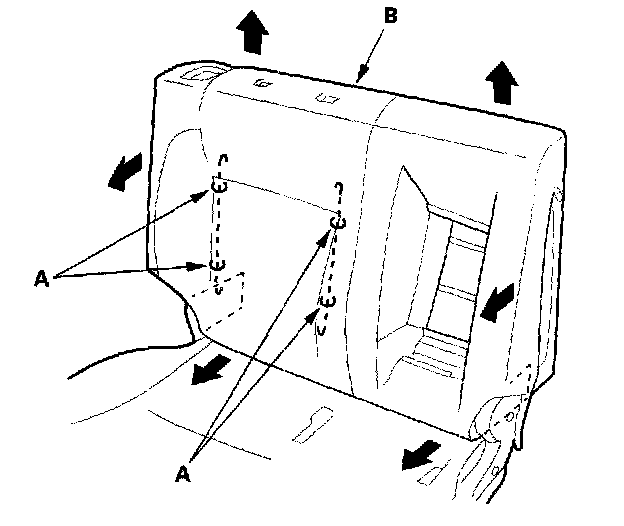

9. Pull back the edge of the seat-back cover all the way around, and release the clips (A), then remove the seat-back cover (B).




10. Install the seat-back cover in the reverse order of removal, and note these items:
- To prevent wrinkles when installing a seat-back cover, make sure the material is stretched evenly over the pad before securing the hook and clips.

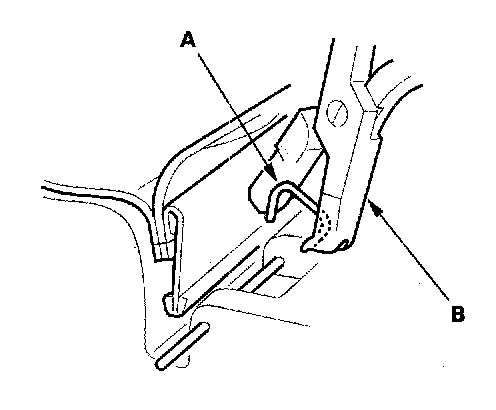

- Replace any clips (A) you removed with new ones using commercially available upholstery ring pliers (B).

Seat Cushion Cover

1. Remove the right rear seat.

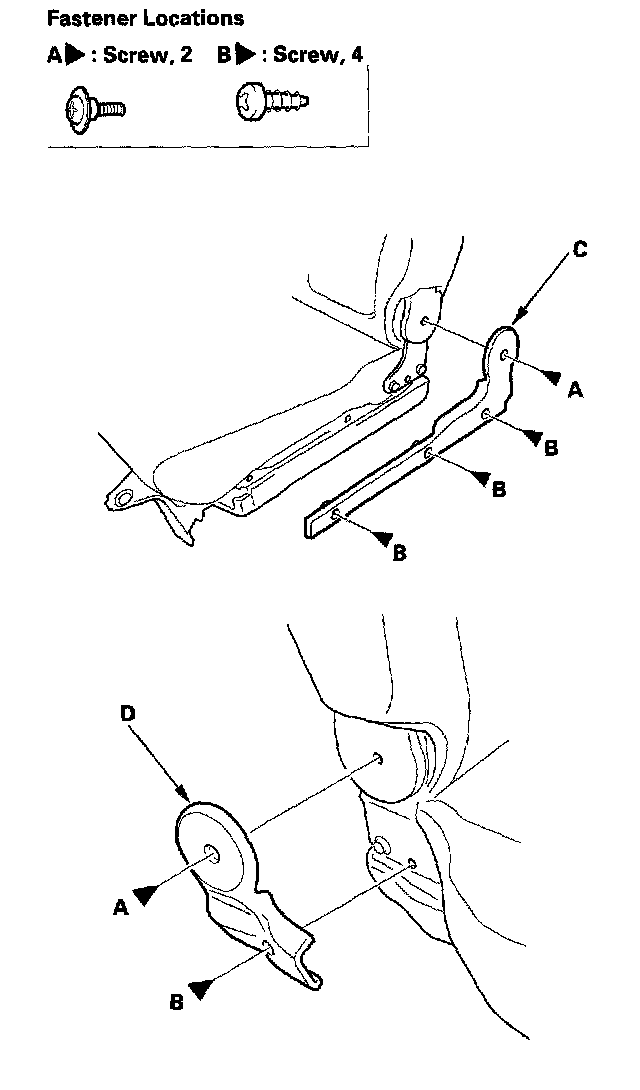

2. Remove the screws (A, B), then remove the recline cover (C) and the center cover (D).

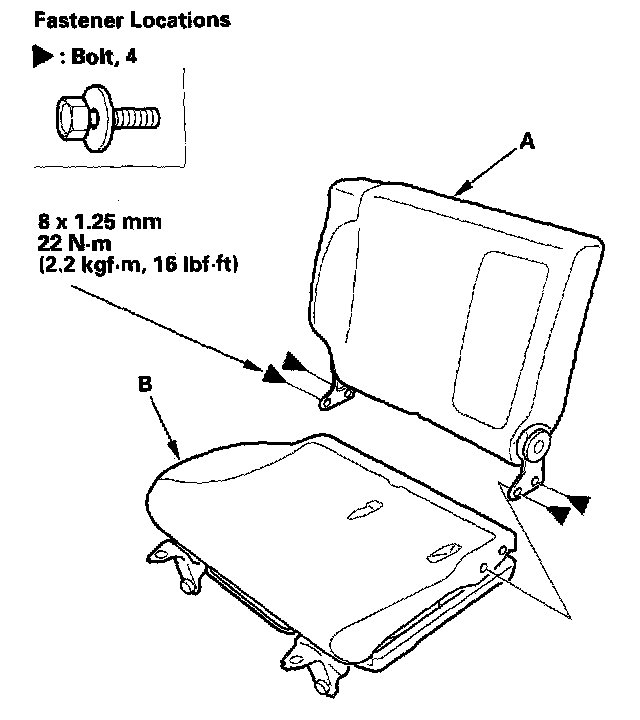

3. Remove the bolts securing the seat-back (A) and seat cushion (B), then separate them.

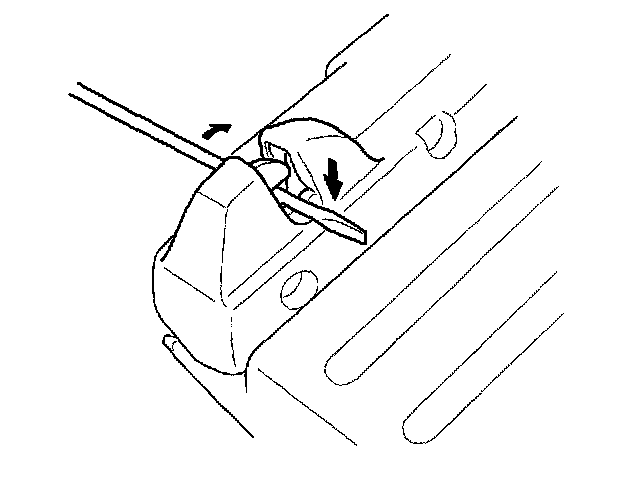

4. To allow the seat cushion to slide, use a screwdriver to close the latch.

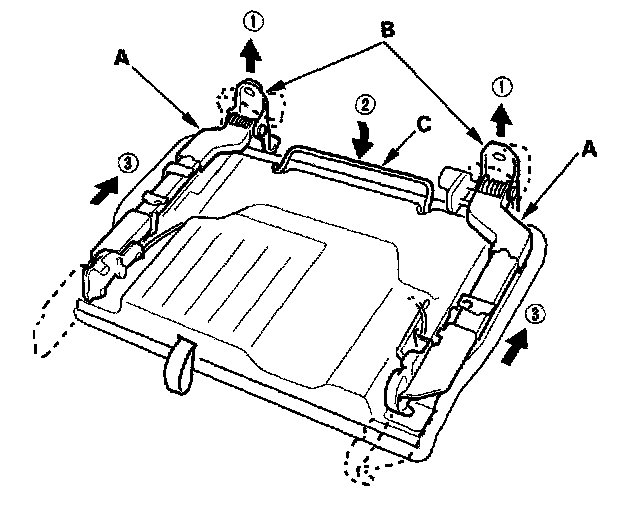

5. Slide both seat tracks (A) back fully.
1. Raise both mounting brackets (B), and place shop towels (C) between the brackets and the bottom cover (D).
2. Push the slide lever (E) down.
3. Slide both seat tracks back fully, taking care not to let the mounting brackets scratch the bottom cover.

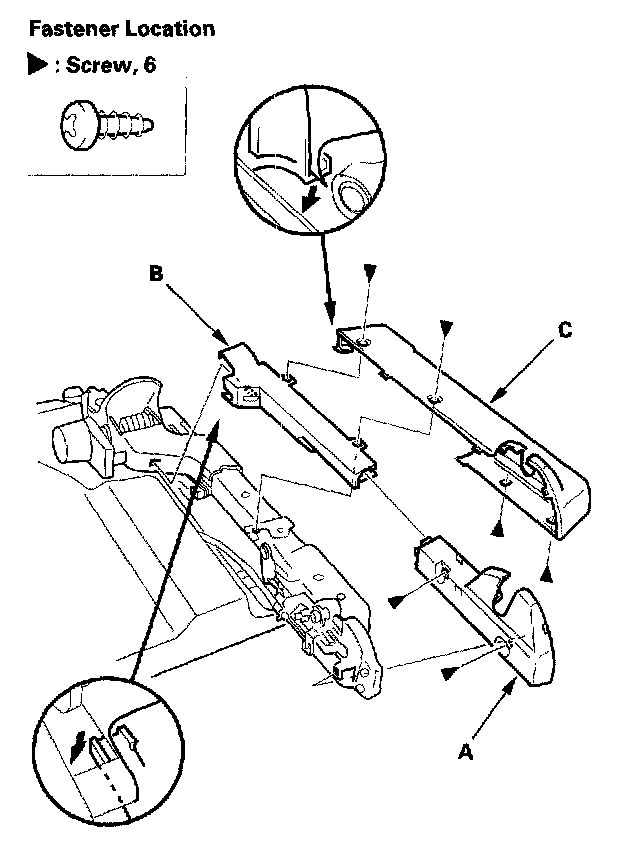

6. Remove the screws, then remove the latch cover (A), outer seat track cover B (B), and outer seat track cover A (C). The left seat track is shown, the right seat track is similar.

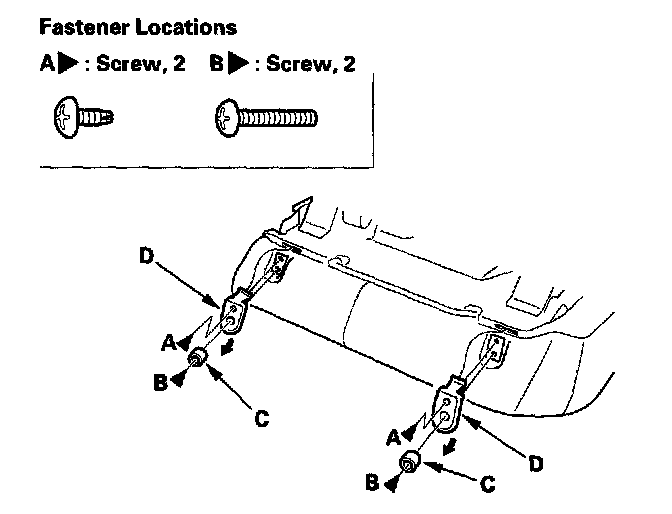

7. Remove the screws (A, B), then remove both dampers (C) and both damper covers (D).

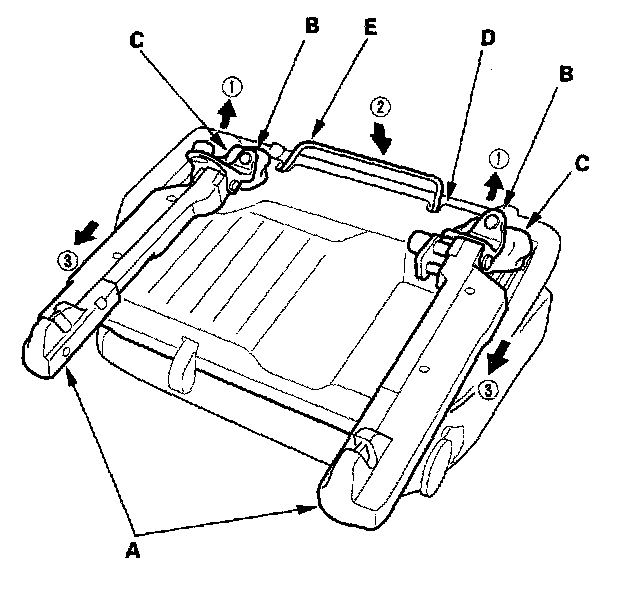

8. Slide both seat tracks (A) forward fully.
1. Raise both mounting brackets (B), and hold them.
2. Push the slide lever (C) down.
3. While holding both mounting brackets, slide both seat tracks forward fully.

NOTE: While sliding both seat tracks, keep both mounting brackets raised securely so they do not spring back.

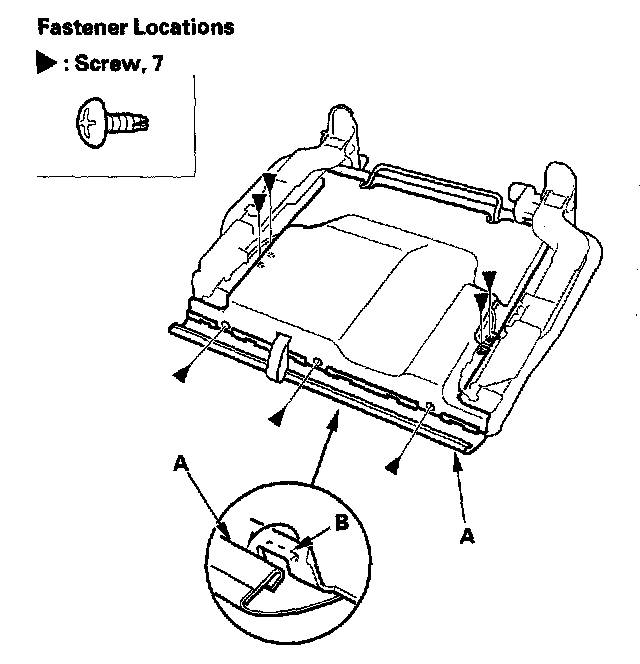

9. Pull back the rear edge of the seat cushion cover (A) to release it from the hooks (B), and remove the screws.




10. While pushing the slide lever (A) down, remove the under cover (B) by pulling it to release the hooks (C). Pass the strap (D) through its slot, and pass both side cables (E) through the side slots in the cover. Take care not to kink the cables.




11. Release all of the hook strips (A).
12. Remove the rear seat belt buckle and center seat belt detachable anchor.

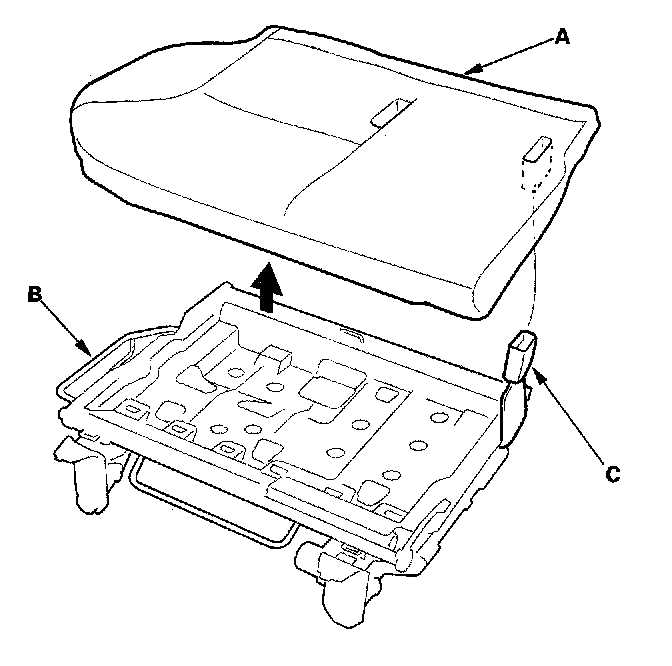

13. Remove the seat cushion cover (A) with the seat cushion pad from the seat cushion frame (B). Pass the center seat belt buckle (C) through a hole in the seat cushion cover.




14. Pull back the edge of the seat cushion coverall the way around, and release the clips (A), then remove the seat cushion cover (B).




15. Install the cover in the reverse order of removal, and note these items:
- To prevent wrinkles when installing a seat cushion cover, make sure the material is stretched evenly over the pad before securing the hook and clips.

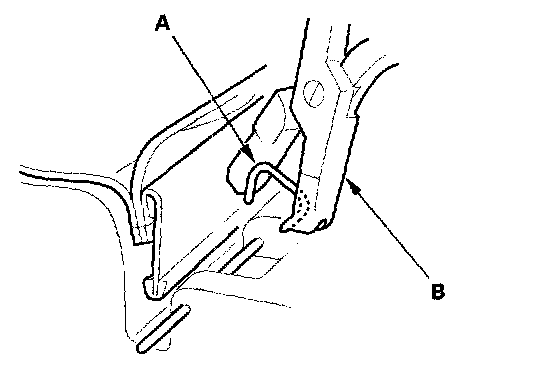

- Replace any clips (A) you removed with new ones using commercially available upholstery ring pliers (B).
