Trim Removal / Installation - Rear Side Pillar Area

Trim Removal/Installation - Rear Side Pillar Area

Special Tools Required
KTC trim tool set SOJATP2014

NOTE:
- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to bend or scratch the trim and panels.

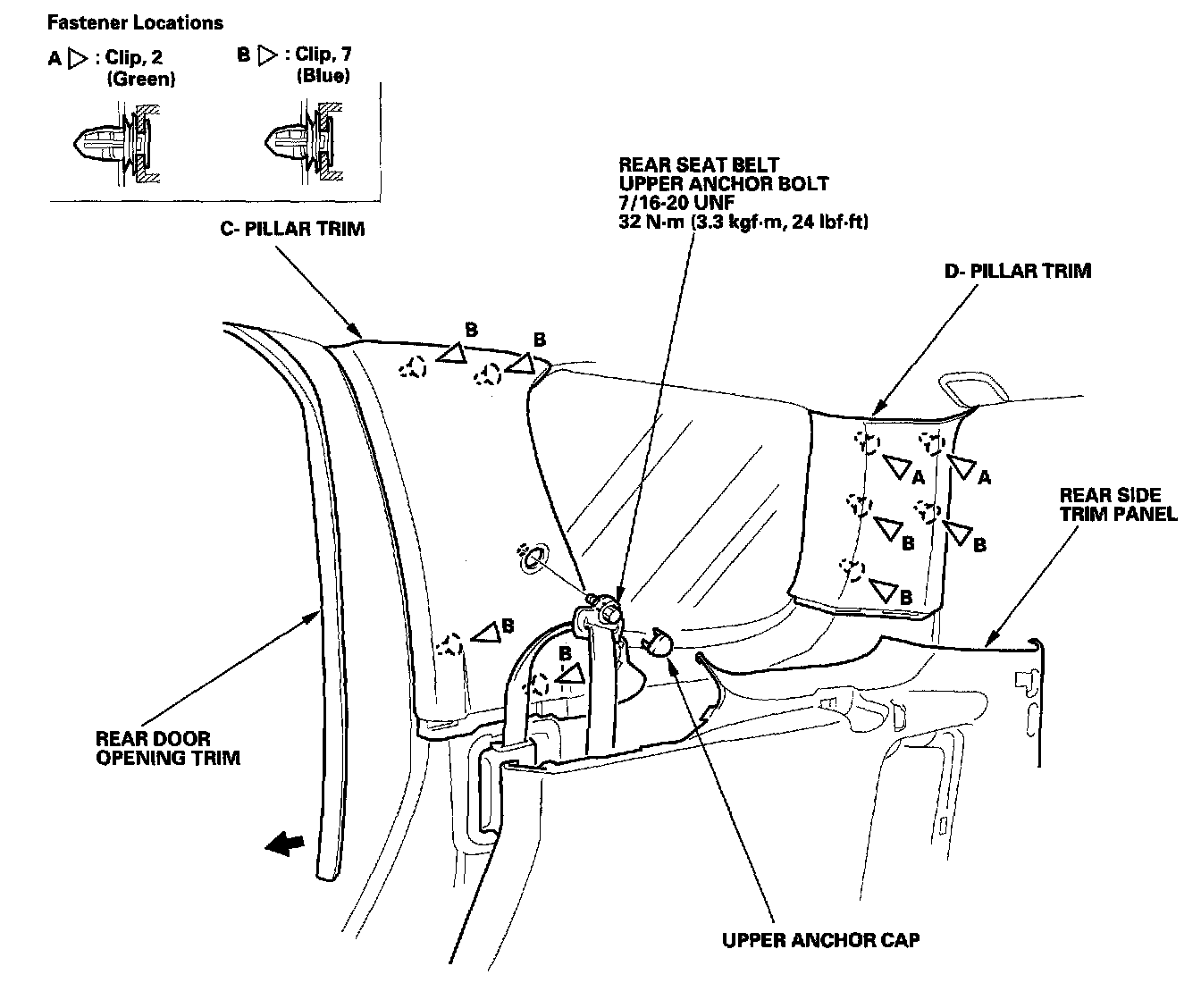

1. Remove the trim as shown. Remove the upper portion of the rear side trim panel as necessary .




2. Install the trim in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips into place securely.
- When installing the rear side trim panel, make sure there are no pinches in the seat belt.
- Apply liquid thread lock to the rear seat belt anchor bolt before installation.
- Before installing the anchor bolt, make sure there are no twists or kinks in the seat belt.
