Torque Specifications

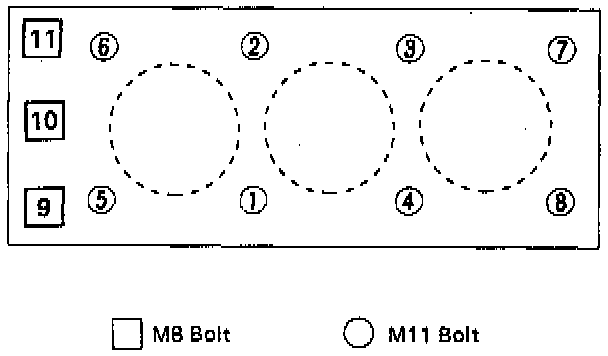

Cylinder Head Torque
M8 x 1.25 Bolts 21 Nm (15 ft. lbs.)
M11 x 1.5 Bolts 64 Nm (47 ft. lbs.)
NOTE: Do not reuse cylinder head gasket and M11 fixing bolts. Do not apply the oil to the bolt.

Intake Manifold:

Intake Manifold Torque

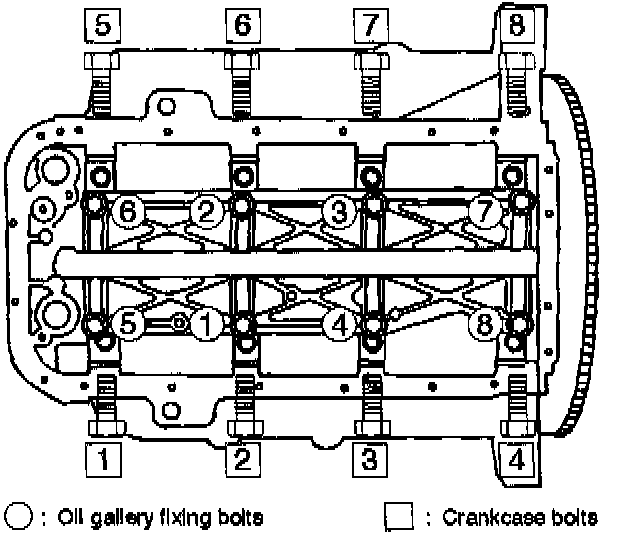

Crankshaft Main Bearing Torque Sequence

- Semi-tighten all Main Bearing bolts. Finally, tighten all the bolts to 39 Nm (29 ft. lbs.) in the order shown.





Crankcase Side Bolt Torque Sequence

- Tighten crankcase bolts in sequence shown to 39 Nm (29 ft. lbs.).

Cylinder Block:

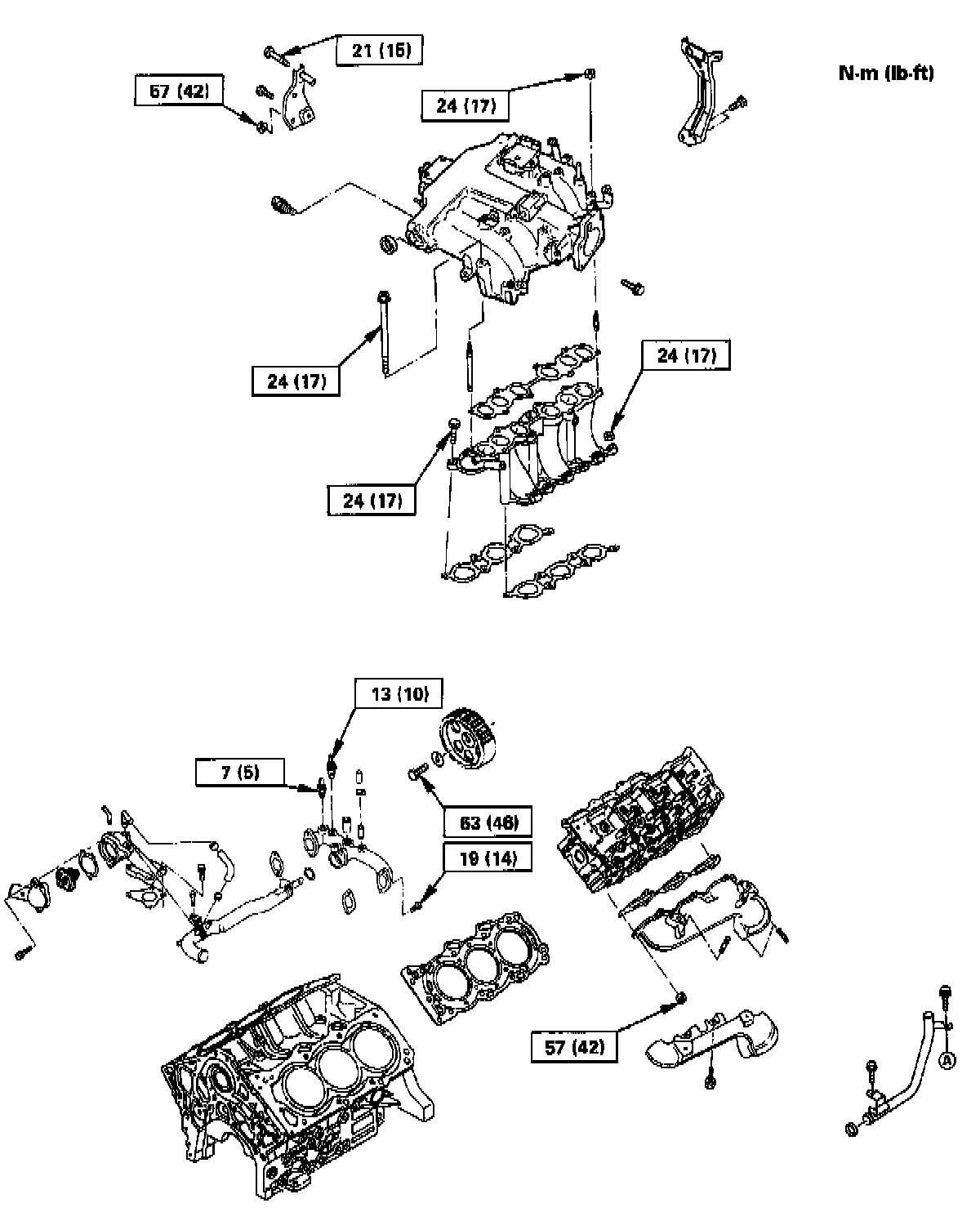

Cylinder Block Components




Flywheel Torque

Fig. 44 Rocker arm assembly tightening sequence:

Rocker Arm Torque Sequence




Exhaust Manifold Torque

Connecting Rod Cap Nuts 54 Nm (40 ft. lbs.)

Crankshaft Pulley Bolt 167 N.m. (123 lb. ft.)

Oil Pump 18 Nm (13 ft. lbs.)
