Alignment

CASTER
Nominal +2.75°
Minimum +2.00°
Maximum +3.50°

CAMBER
Nominal 0°
Minimum -0.50°
Maximum +0.50°

KING PIN INCLINATION
Nominal +12.50°
Minimum +12.00°
Maximum +13.00°

TOE-IN
Nominal 0 inch
Minimum -0.08 inch
Maximum +0.08 inch

MAXIMUM STEERING ANGLE
Inside
Nominal +34°
Minimum +34°
Maximum +32°

Outside 32°

TRIM HEIGHT

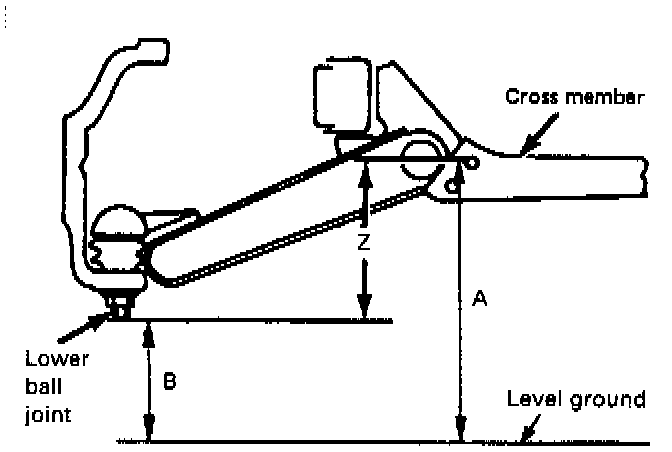

Trim Height (Z) 134 +/- 5 mm (5.28 +/- 0.2 in.)
