Electronic Brake Control Module: Service and Repair

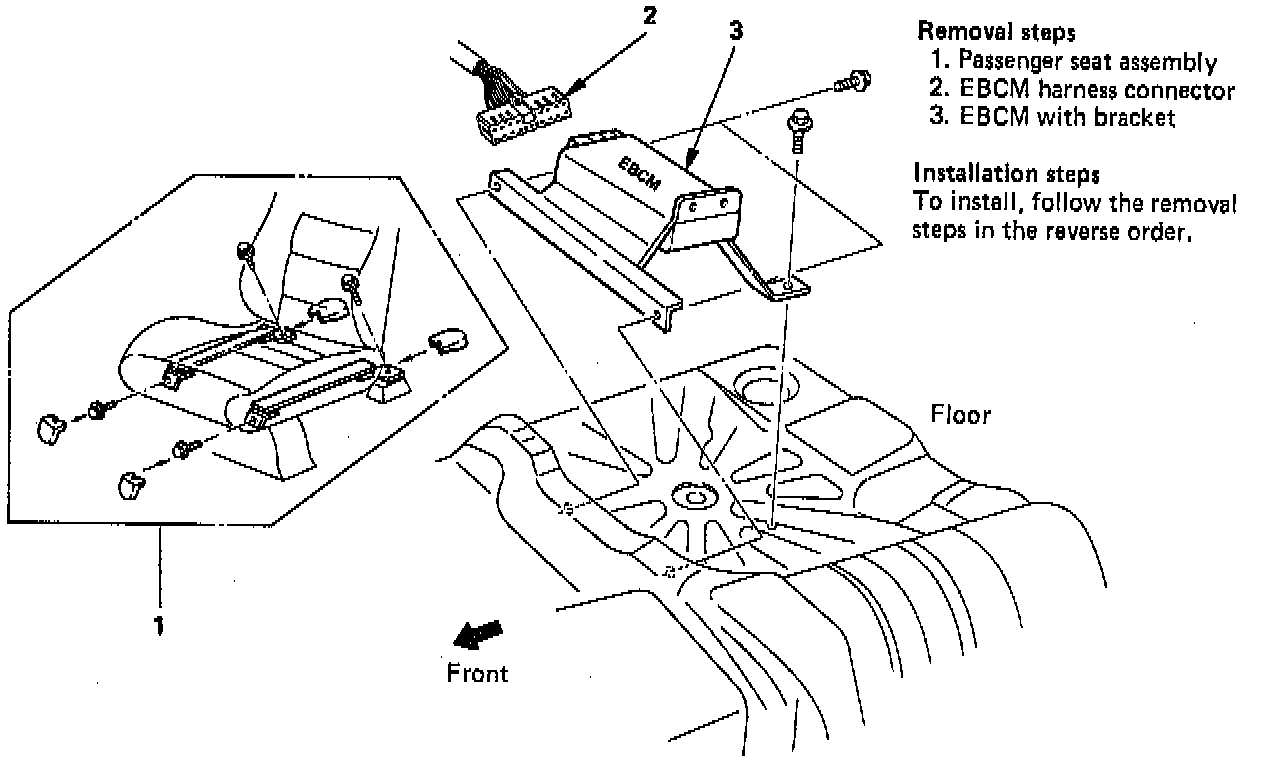

RWAL EBCM Replacement:

CAUTION: There are no replaceable parts inside the EBCM; it can only be replaced as an assembly. Do not replace the EBCM unless so instructed in the diagnosis chart.

1. Remove the passenger seat assembly.
2. With the ignition OFF, unplug the harness connector.
3. Remove the EBCM and bracket assembly.
4. Installation is the reverse of removal.
