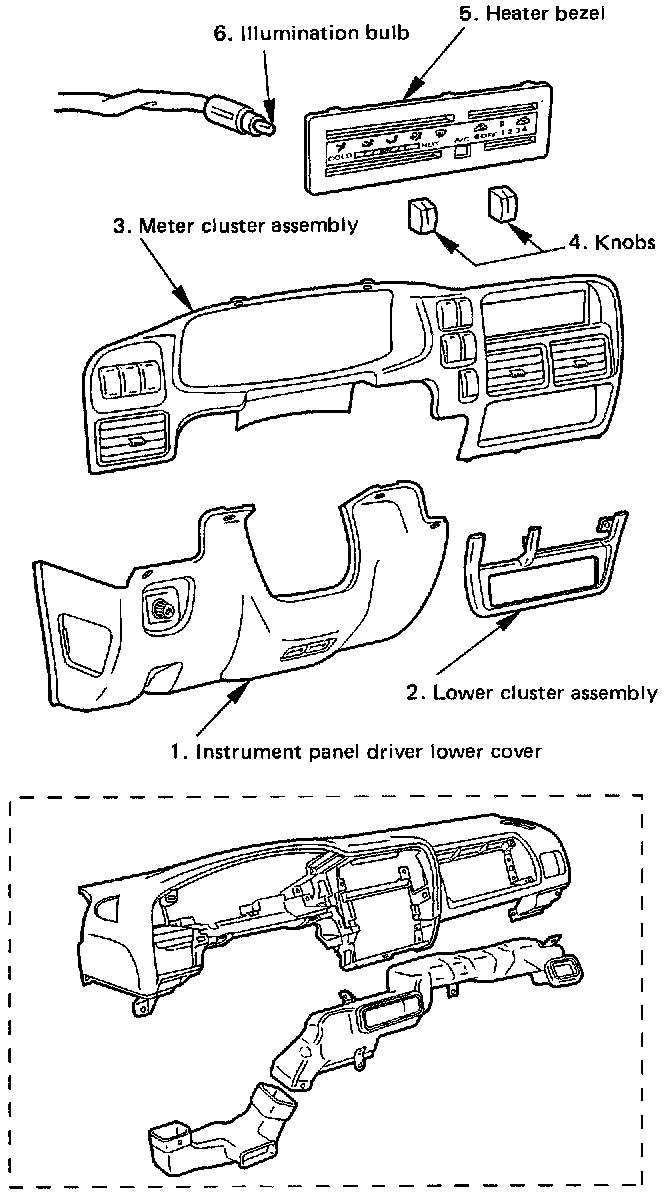

Control Panel Illumination Bulb and Associated Parts

REMOVAL
Preparation:
Battery ground cable
1. Instrument panel driver lower cover
2. Lower cluster assembly
3. Meter cluster assembly
4. Knobs
5. Heater bezel
6. Illumination bulb

INSTALLATION
To install, follow the removal steps in the reverse order.
