Home >> Honda Truck >> 1997 >> Passport EX 4WD V6-3.2L SOHC (6VD1) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Crankshaft Main Bearing >> Service Specifications

Service Specifications

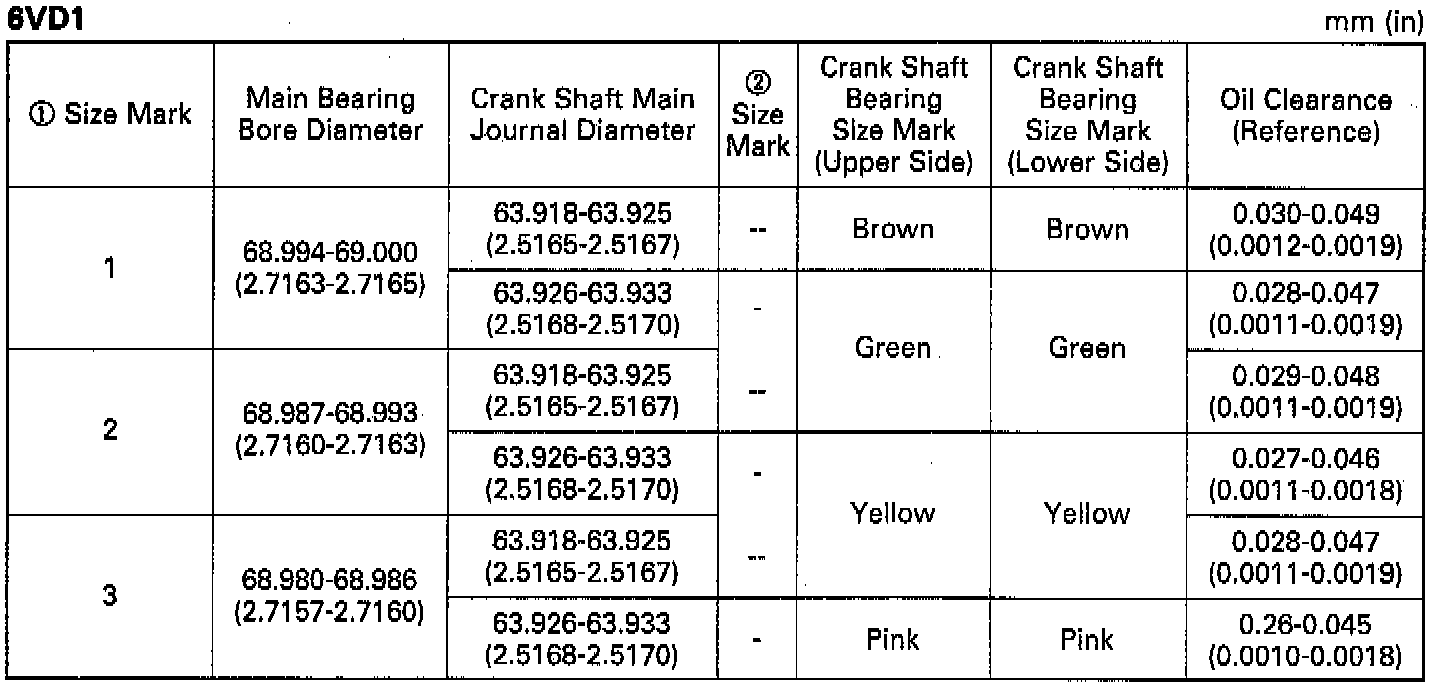

Crankshaft Main Bearing Codes

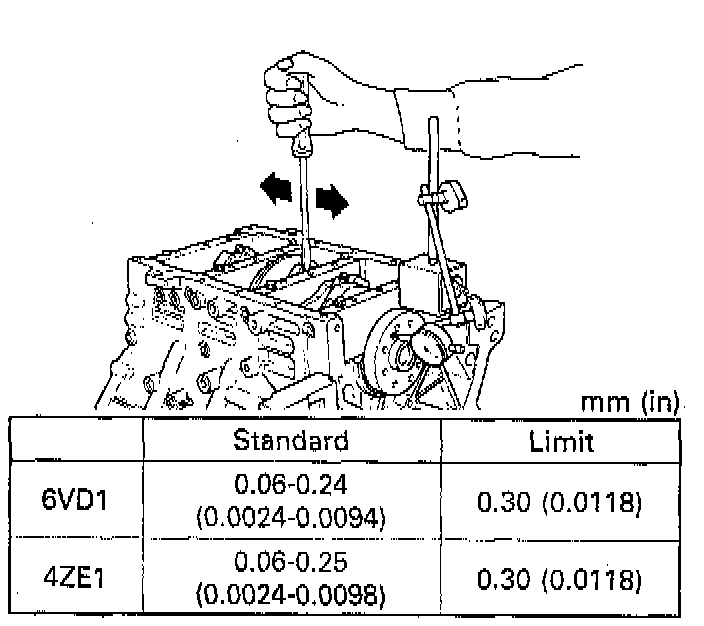

Thrust Clearance

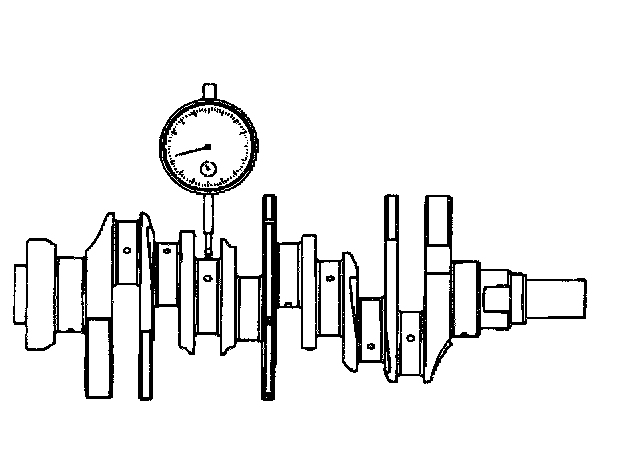

Crankshaft Runout

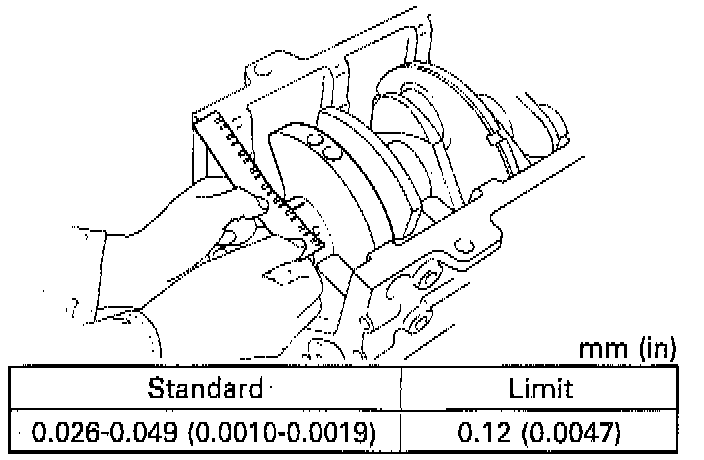

Crankshaft Main Bearing Oil Clearance
