Inline Connector Circuit Identification

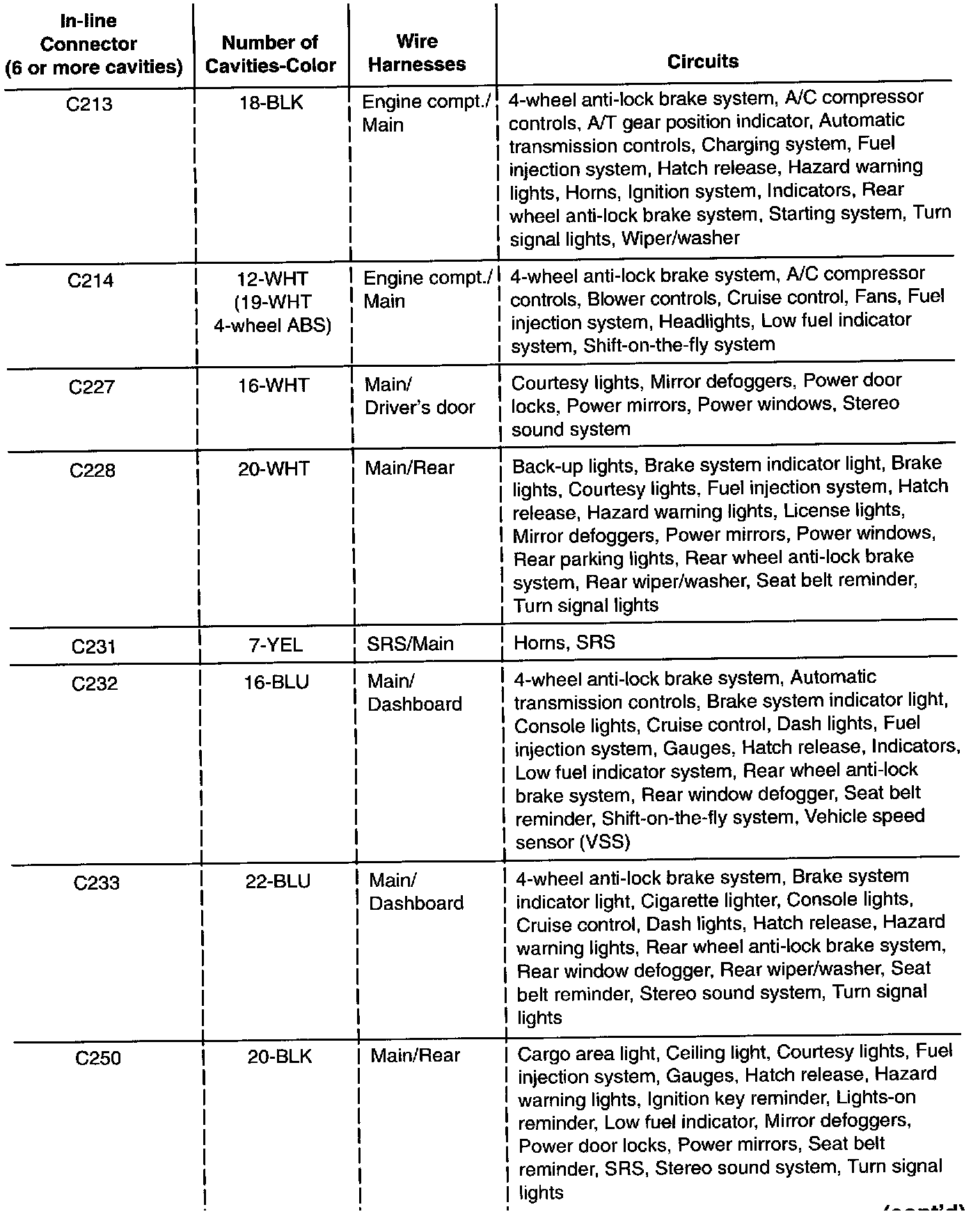

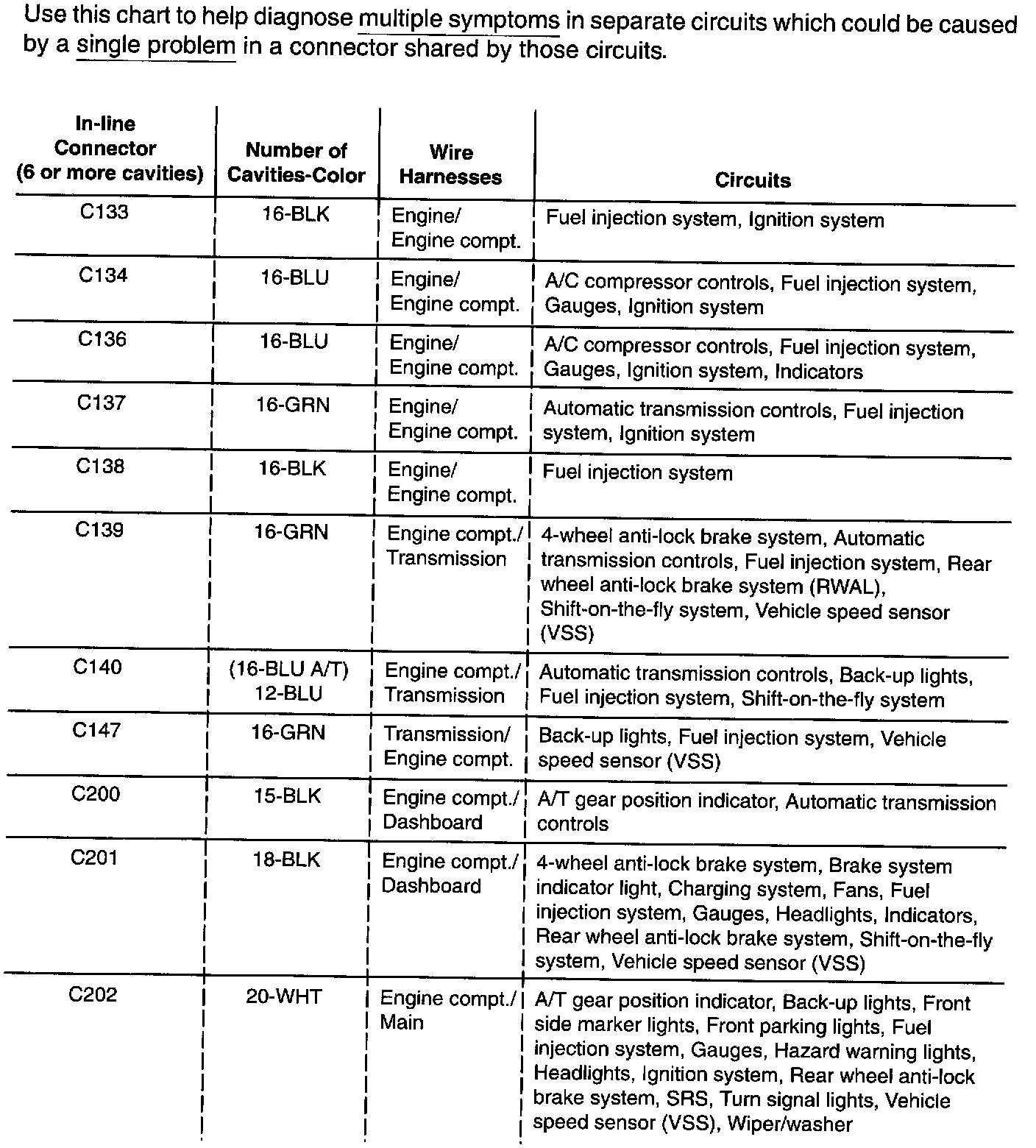

In-Line Connector Circuit Identification (Part 1 Of 3):




In-Line Connector Circuit Identification (Part 2 Of 3):




In-Line Connector Circuit Identification (Part 3 Of 3):
