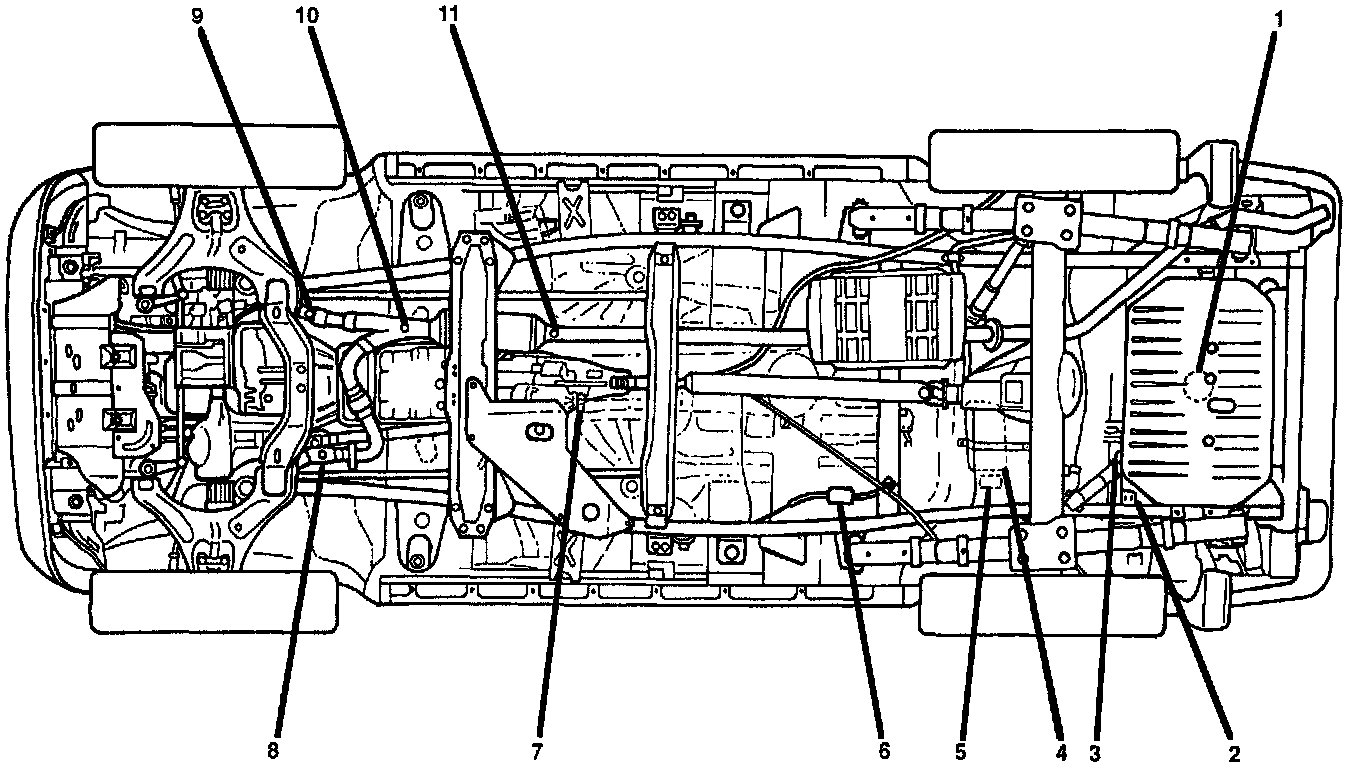

Undercarriage Component Locator Table

Automatic Transmission
1. Fuel Assembly and Fuel Tank Pressure Sensor
Installed in the top of the fuel tank

2. G-Sensor
On the top of the bracket that is located just in front of the fuel tank, on the right side of the vehicle

3. Fuel Gauge Unit
Installed in the front edge of the fuel tank, on the right side

4. Evaporative (EVAP) Canister
On bracket in right rear wheel well

5. EVAP Canister Vent Solenoid
On bracket in right rear wheel well

6. Fuel Filter
Located along the inside of the right frame rail, ahead of the rear axle

7. Vehicle Speed Sensor (VSS)
Protrudes from the transmission housing, just ahead of the propeller shaft

8. Heated Oxygen Sensor (Bank 1, HO2S 2)
Threaded into the exhaust pipe behind the right-hand catalytic converter

9. Heated Oxygen Sensor (Bank 1, HO2S 1)
Threaded into the exhaust pipe ahead of the right-hand catalytic converter

10. Heated Oxygen Sensor (Bank 2, HO2S 1)
Threaded into the exhaust pipe ahead the left-hand catalytic converter

11. Heated Oxygen Sensor (Bank 2, HO2S 2)
Threaded into the exhaust pipe behind the left-hand catalytic converter




Manual Transmission
1. Fuel Assembly and Fuel Tank Pressure Sensor
Installed in the top of the fuel tank

2. G-Sensor
On the top of the bracket that is located just in front of the fuel tank, on the right side of the vehicle

3. Fuel Gauge Unit
Installed in the front edge of the fuel tank, on the right side

4. Evaporative (EVAP) Canister
On bracket in right rear wheel well

5. EVAP Canister Vent Solenoid
On bracket in right rear wheel well

6. Fuel Filter
Located along the inside of the right frame rail, ahead of the rear axle

7. Vehicle Speed Sensor (VSS)
Protrudes from the transmission housing, just ahead of the propeller shaft

8. Heated Oxygen Sensor (Bank 1, HO2S 1)
Threaded into the exhaust pipe behind the right-hand cylinder bank

9. Heated Oxygen Sensor (Bank 2, HO2S 1)
Threaded into the exhaust pipe ahead of the left-hand cylinder bank

10. Heated Oxygen Sensor (Bank 1, HO2S 2)
Threaded into the exhaust pipe ahead of the catalytic converter

11. Heated Oxygen Sensor (Bank 1, HO2S 3)
Threaded into the exhaust pipe behind the catalytic converter
