Caster

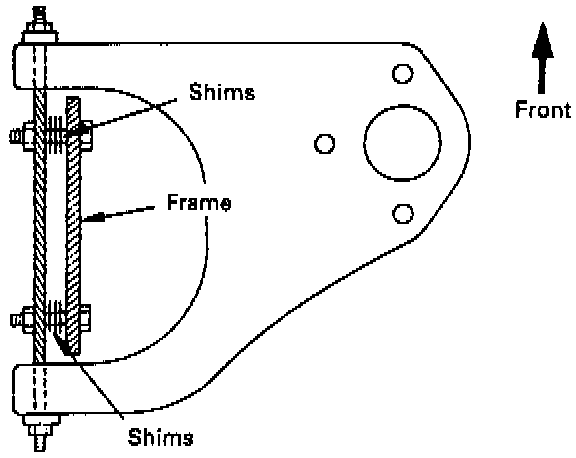

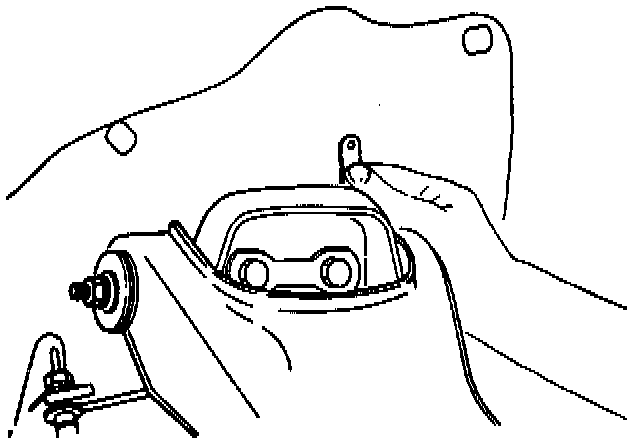

NOTE: The caster angle can be adjusted by means of the caster shims installed between the chassis frame and fulcrum pins.





CAUTION: Left and right side to be equal within 30'

Difference of the caster shim front/rear thickness shall be 3.6 mm (0.142 inch) or less. Overall thickness of caster shim and camber shim shall be 10.8 mm (0.425 inch) or less. Tighten the fulcrum pin bolt to 152 Nm (112 ft. lbs.).
