Camber

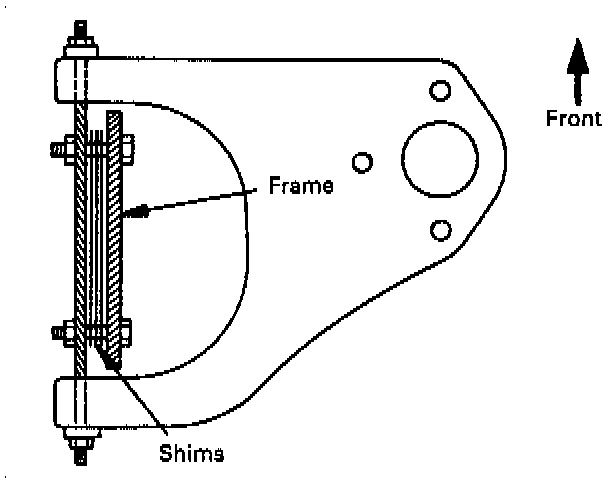

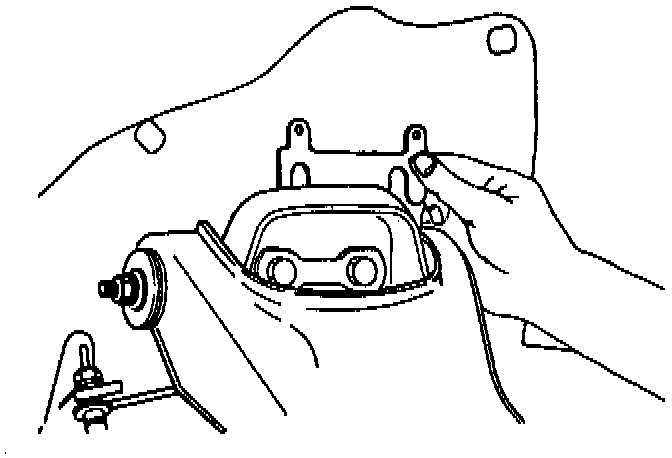

NOTE: The camber angle can be adjusted by means of the camber shims installed in position between the chassis frame and fulcrum pins.

CAUTION: Left and right side to be equal within 30'

Overall thickness of caster shim and camber shim shall be 10.8 mm (0.425 inch) or less. Tighten the fulcrum pin bolt to 152 Nm (112 ft. lbs.).
