Electronic Brake Control Module

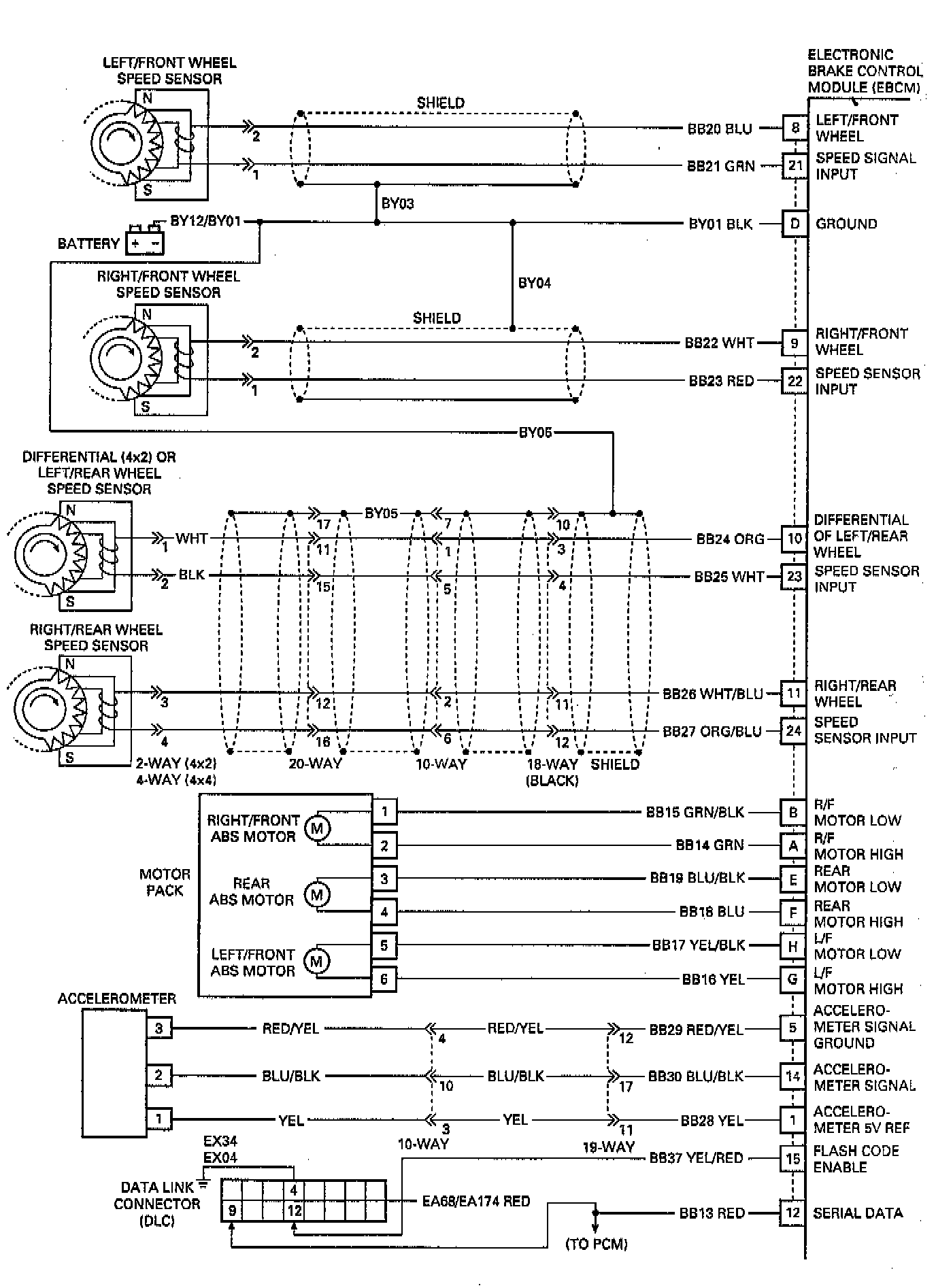

ABS Circuit Schematic (Part 1 Of 2):

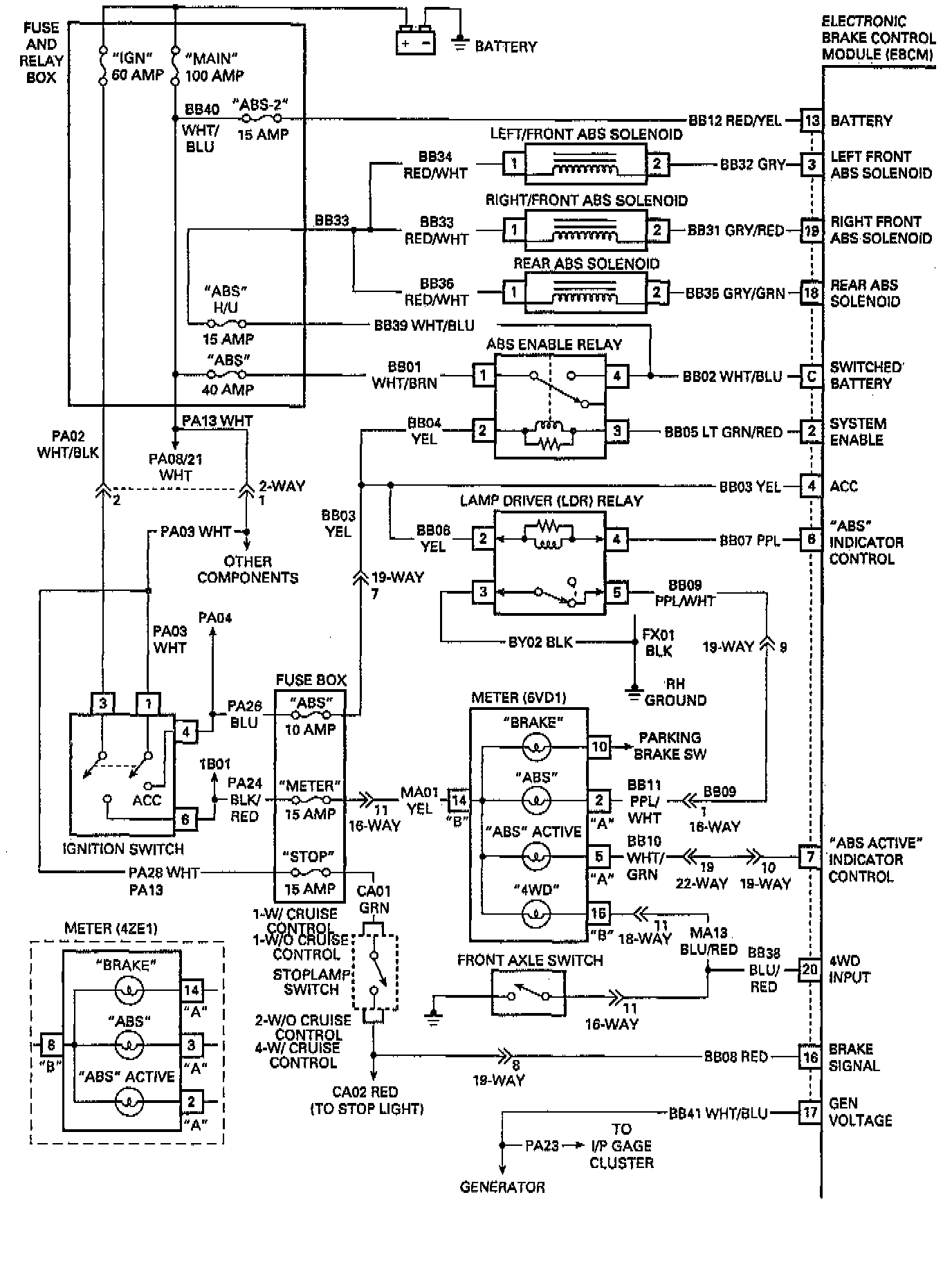

ABS Circuit Schematic (Part 2 Of 2):
