Electronic Brake Control Module
Electronic Brake Control Module

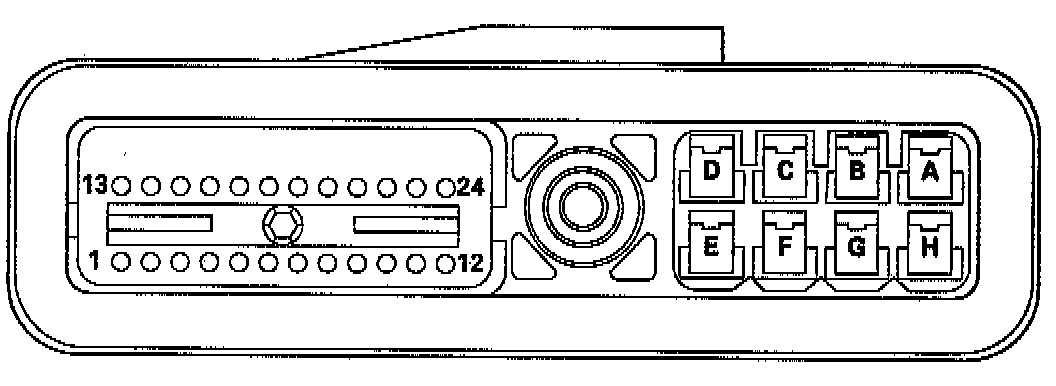

EBCM Connector View:

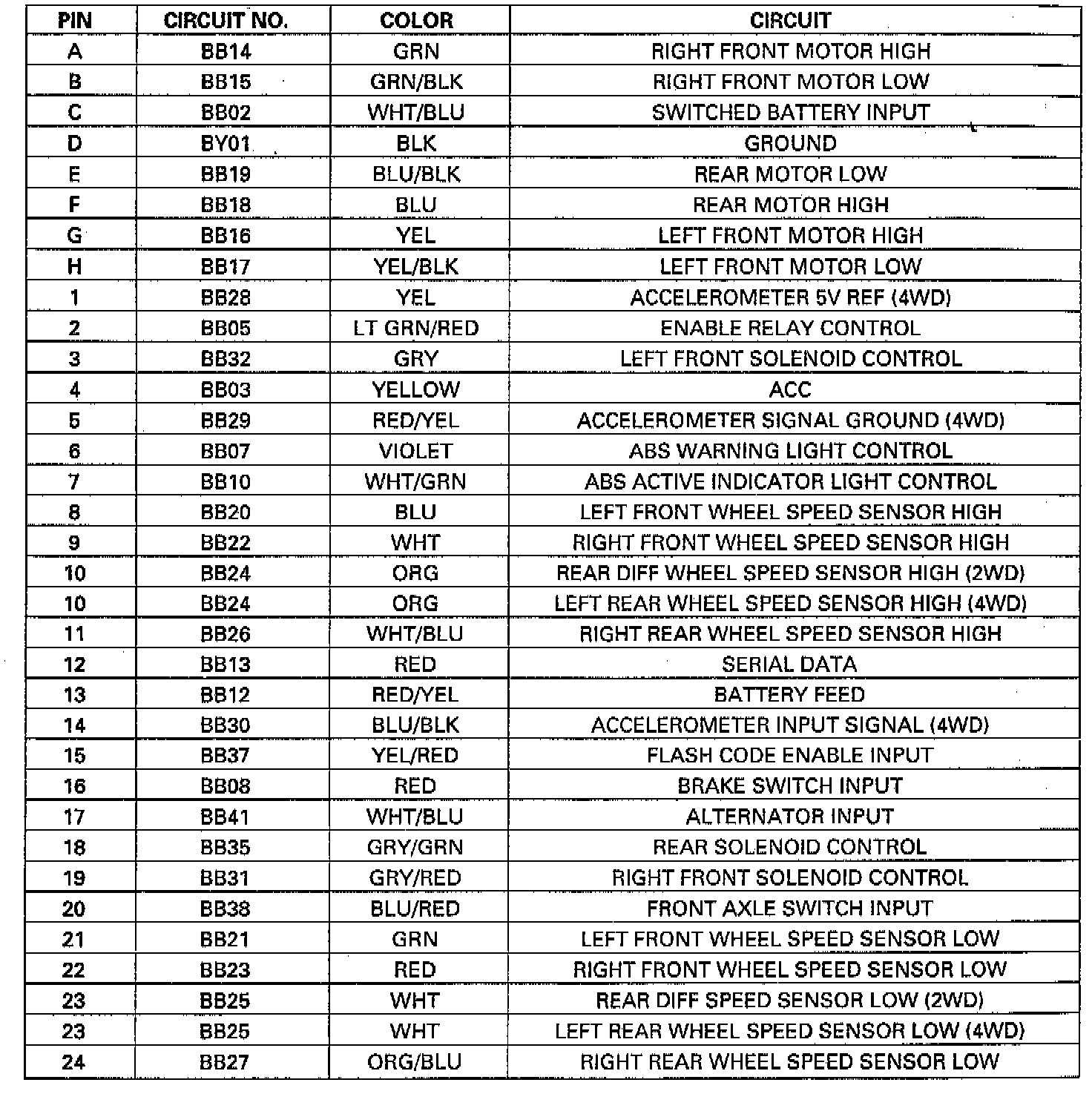

EBCM Connector Chart:
