Home >> Honda Truck >> 1997 >> Passport EX 4WD V6-3.2L SOHC (6VD1) >> Repair and Diagnosis >> Diagrams >> Components >> Fuses >> Fuse/Relay Box

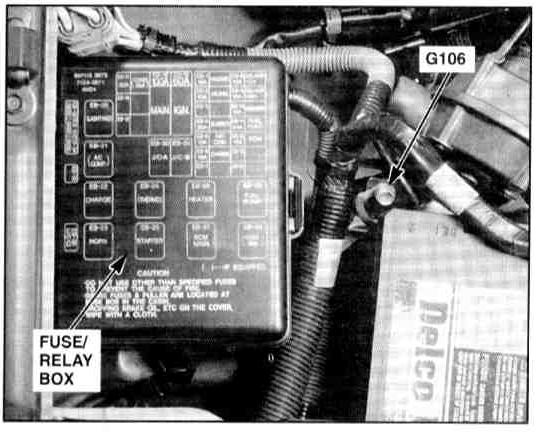

Fuse/Relay Box

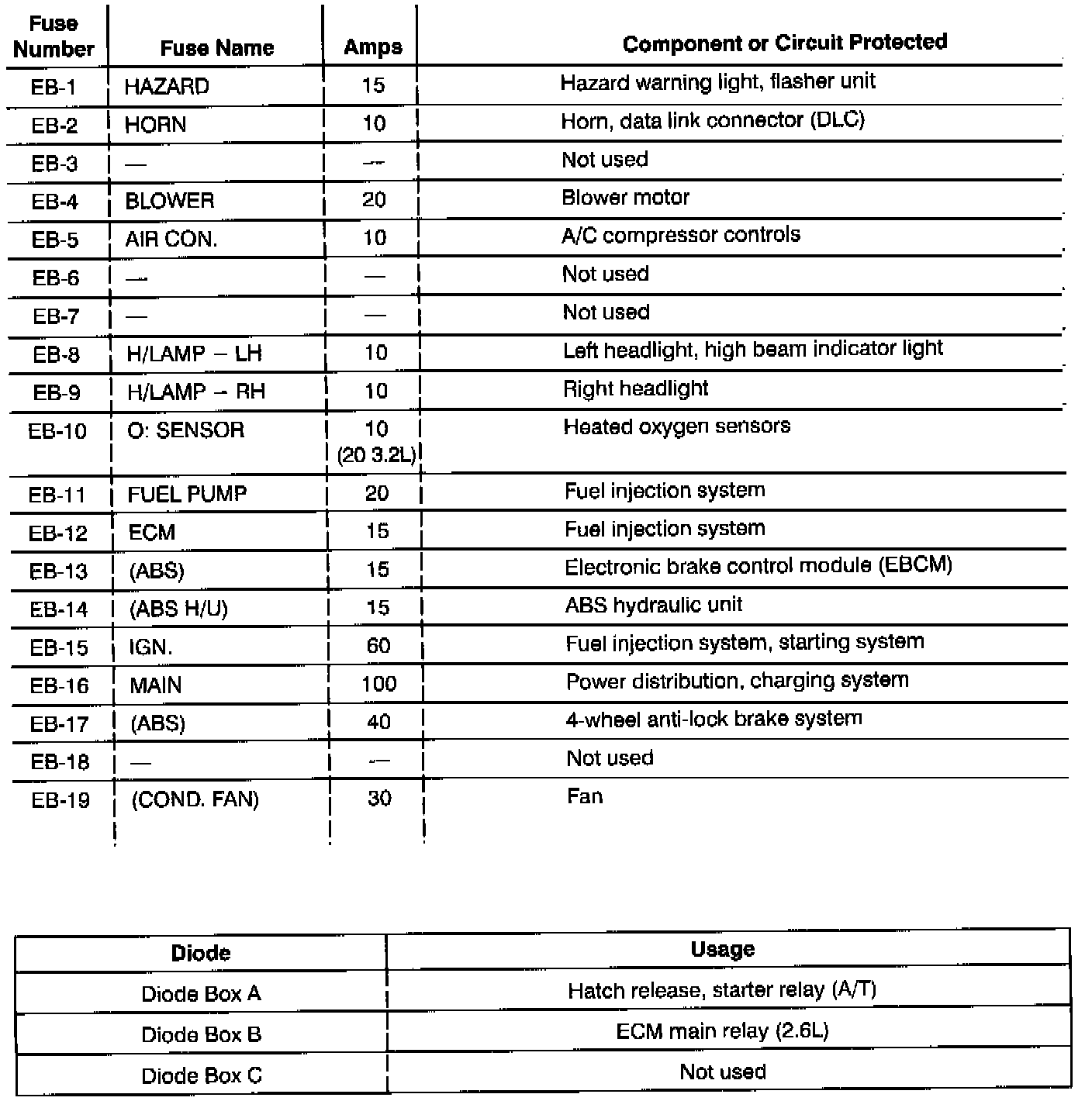

Fuse/Relay Box (Part 1 Of 2):

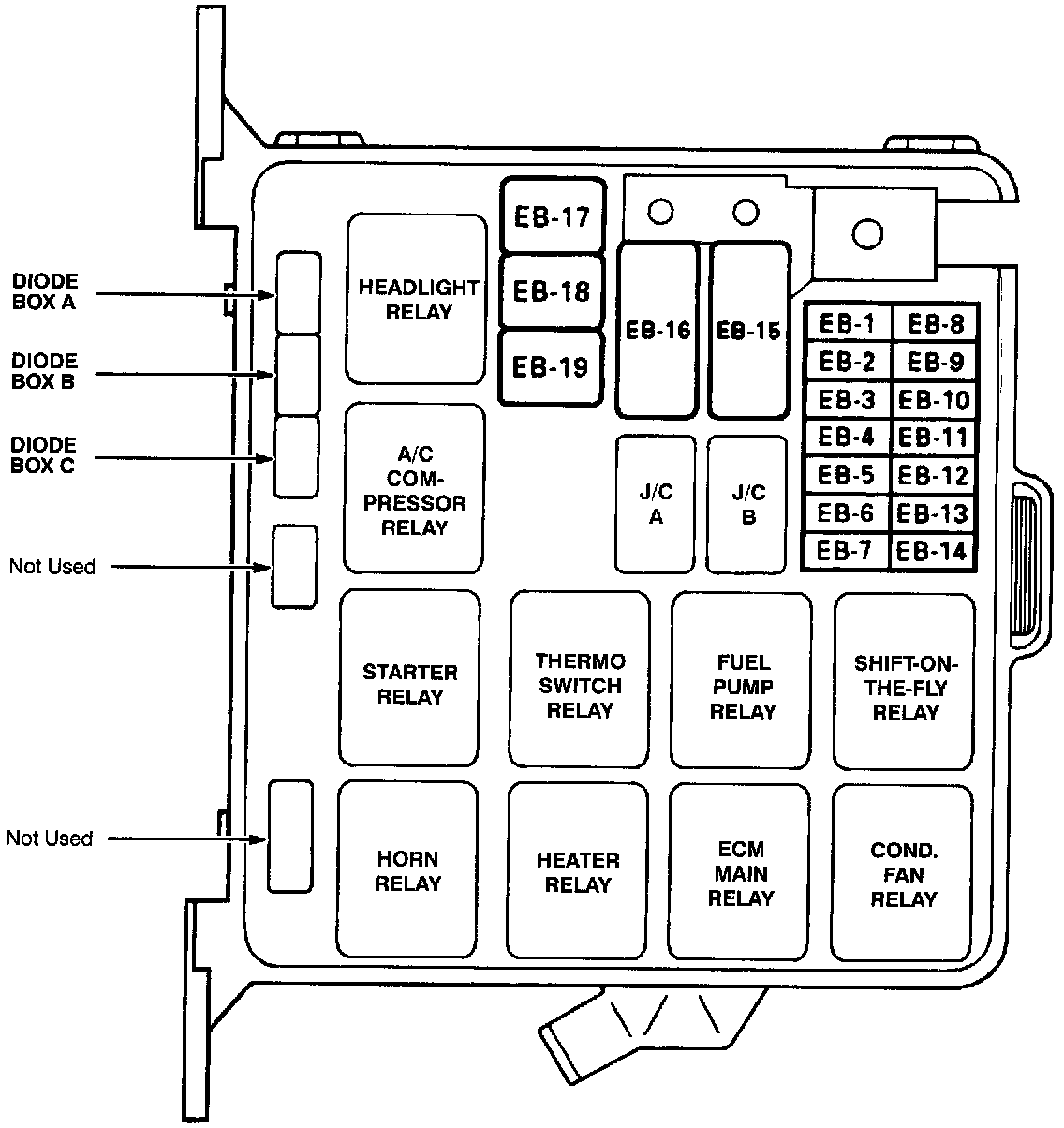

Fuse/Relay Box (Part 2 Of 2):
