Vehicle Speed Sensor/Transducer - Cruise Control: Testing and Inspection

VEHICLE SPEED SENSOR (INCORPORATED IN SPEEDOMETER)

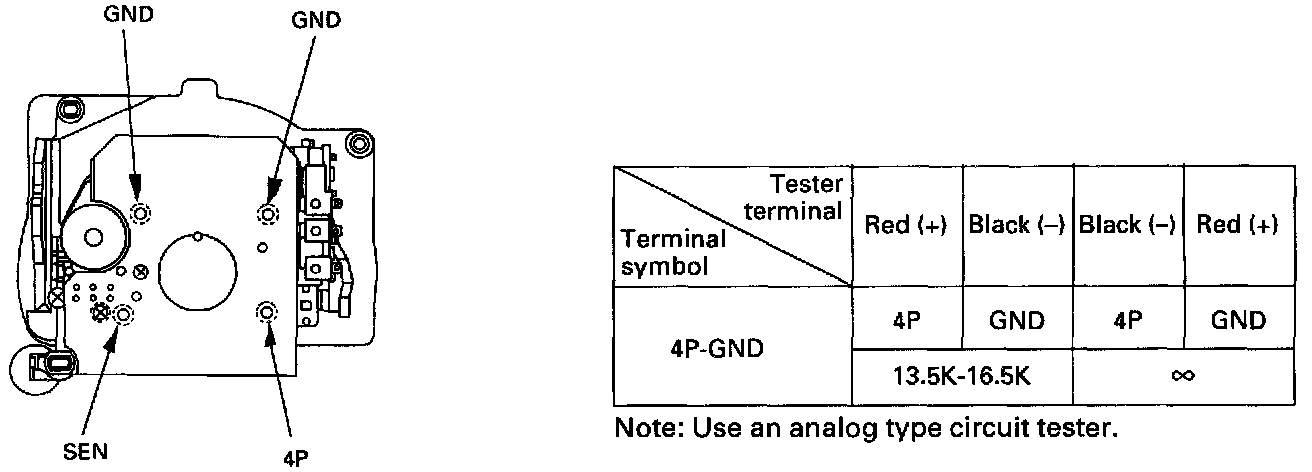

Remove the speedometer from the meter assembly, and measure the resistance value between the terminals. Replace the speedometer assembly when the result of inspection is found abnormal.
