Honda Truck
>>
1997
>>
Odyssey LX L4-2156cc 2.2L SOHC MFI (F22B6)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Testing and Inspection
>>
Passenger's Window Switch Test
Passenger's Window Switch Test
Passenger's Window Switch Test:
1.

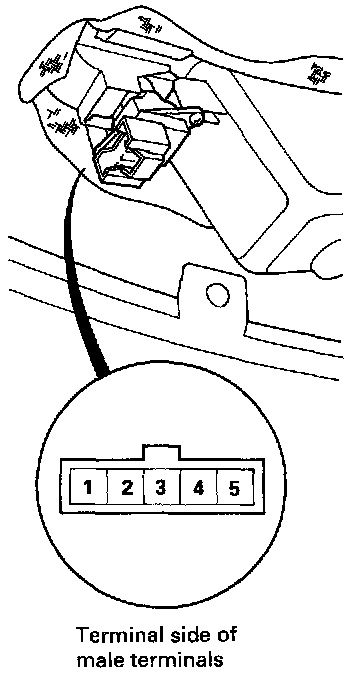

Remove the passenger's window switch.
Passenger's Window Switch Test:
2.

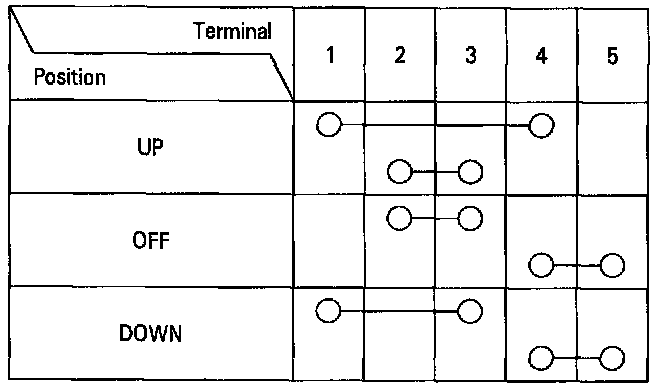

Check for continuity between the terminals in each switch position according to the tables.
