Relay Box
>>
Locations
>>

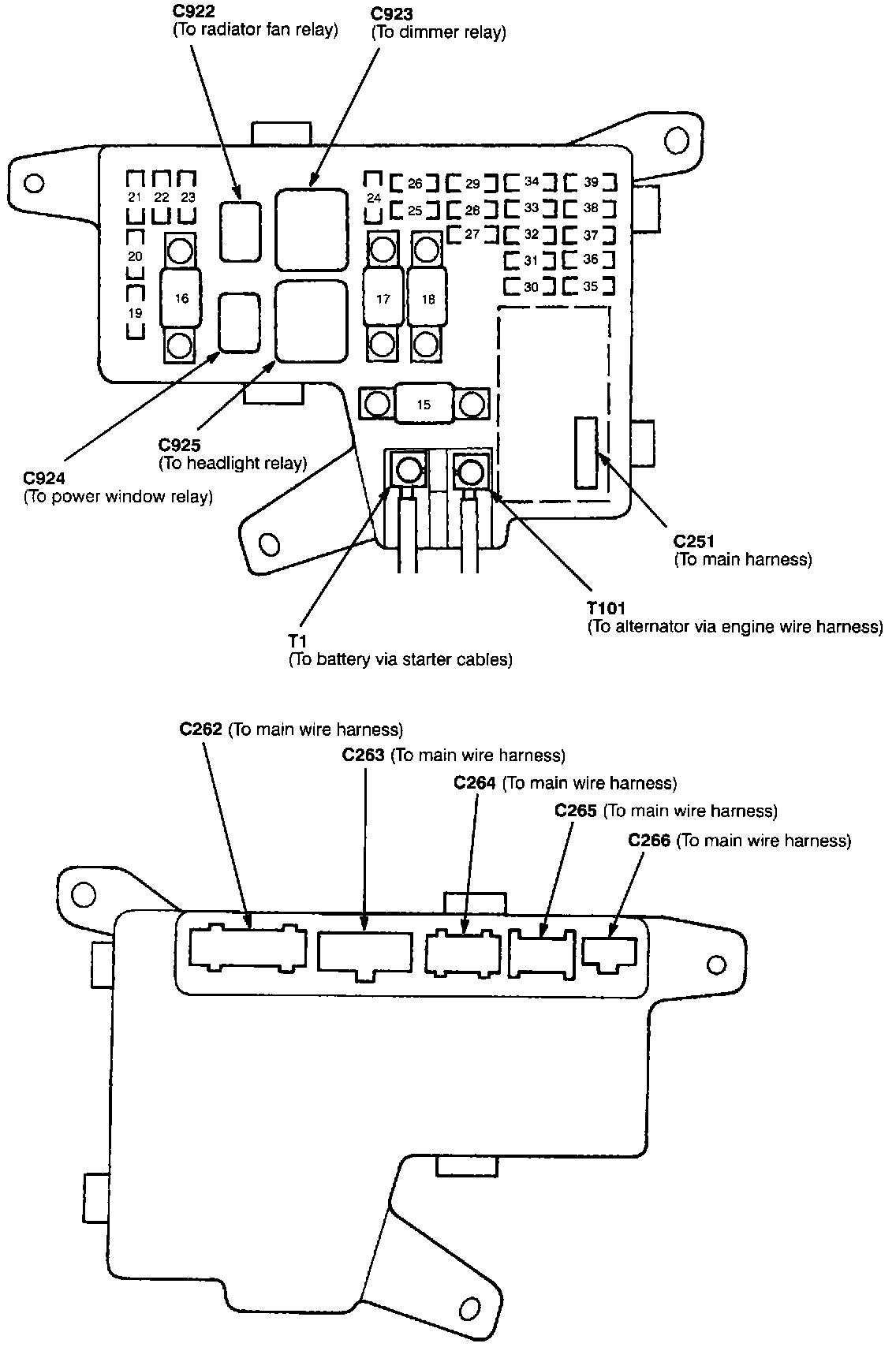

Under-Hood Fuse/Relay Box
>>
Alternative View
Alternative View

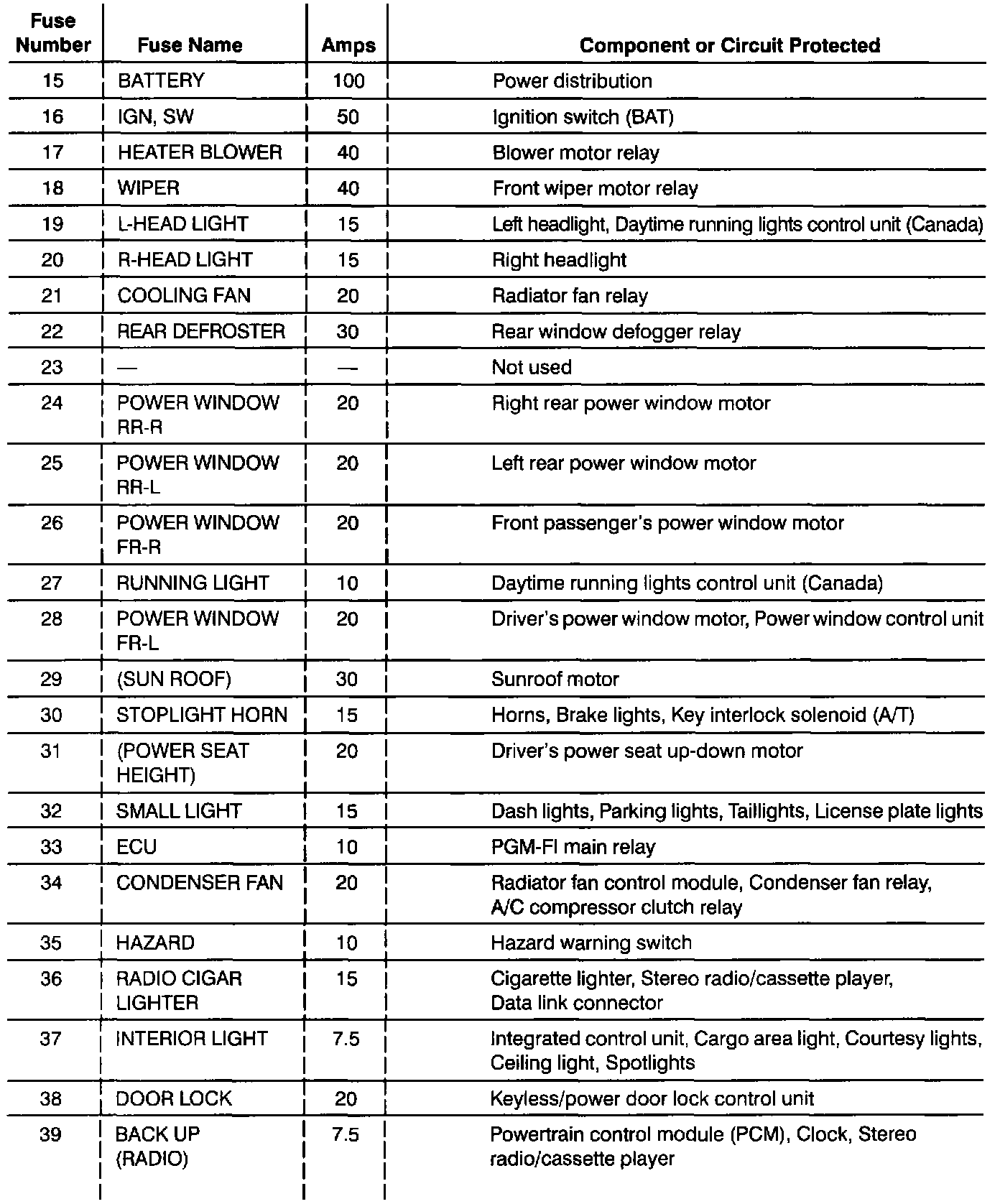

Fuse/Relay Information (Under-hood Fuse/Relay Box) (Part 1 Of 2):
Fuse/Relay Information (Under-hood Fuse/Relay Box) (Part 2 Of 2):
