Alternative View

Engine Compartment:

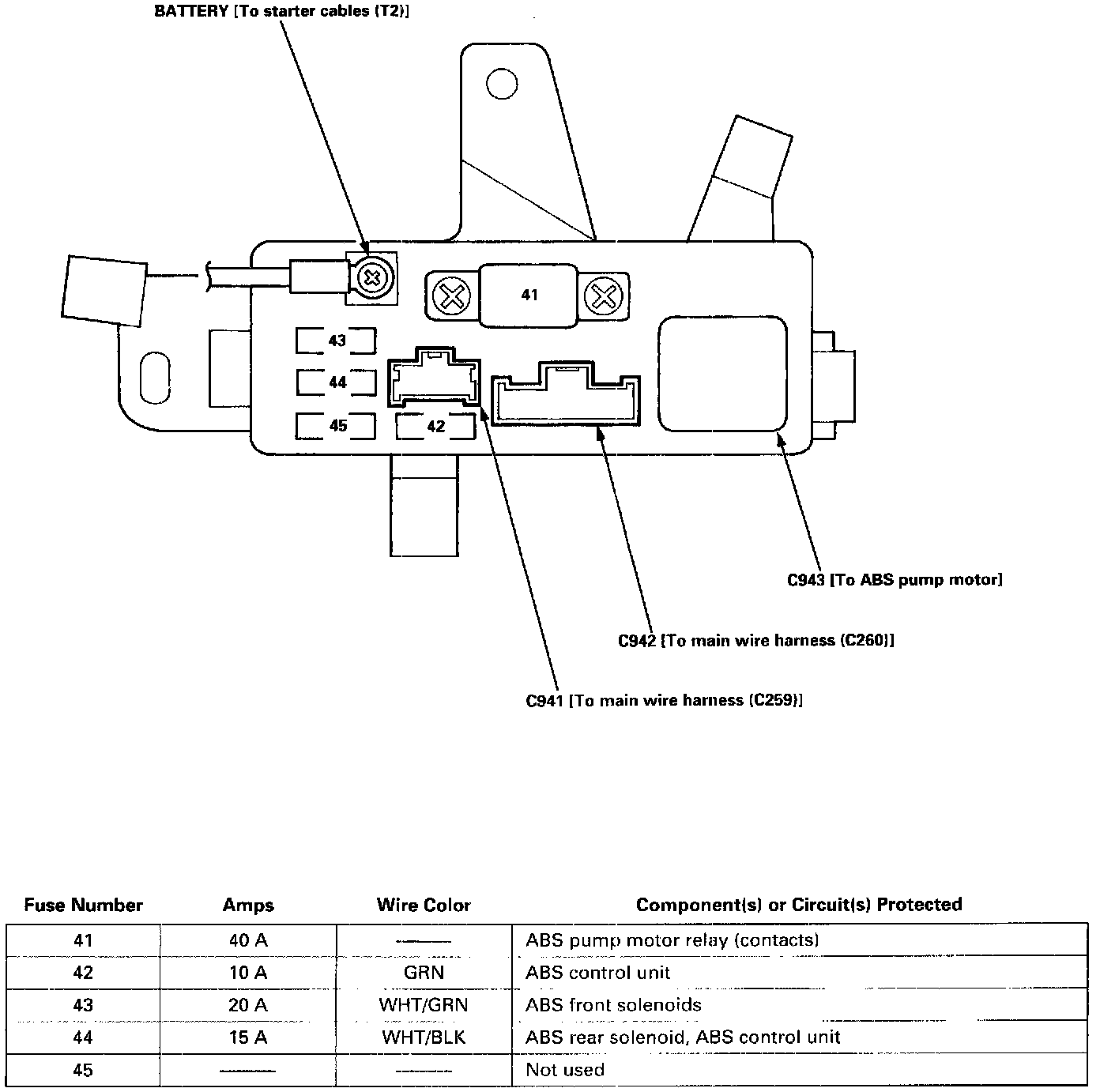

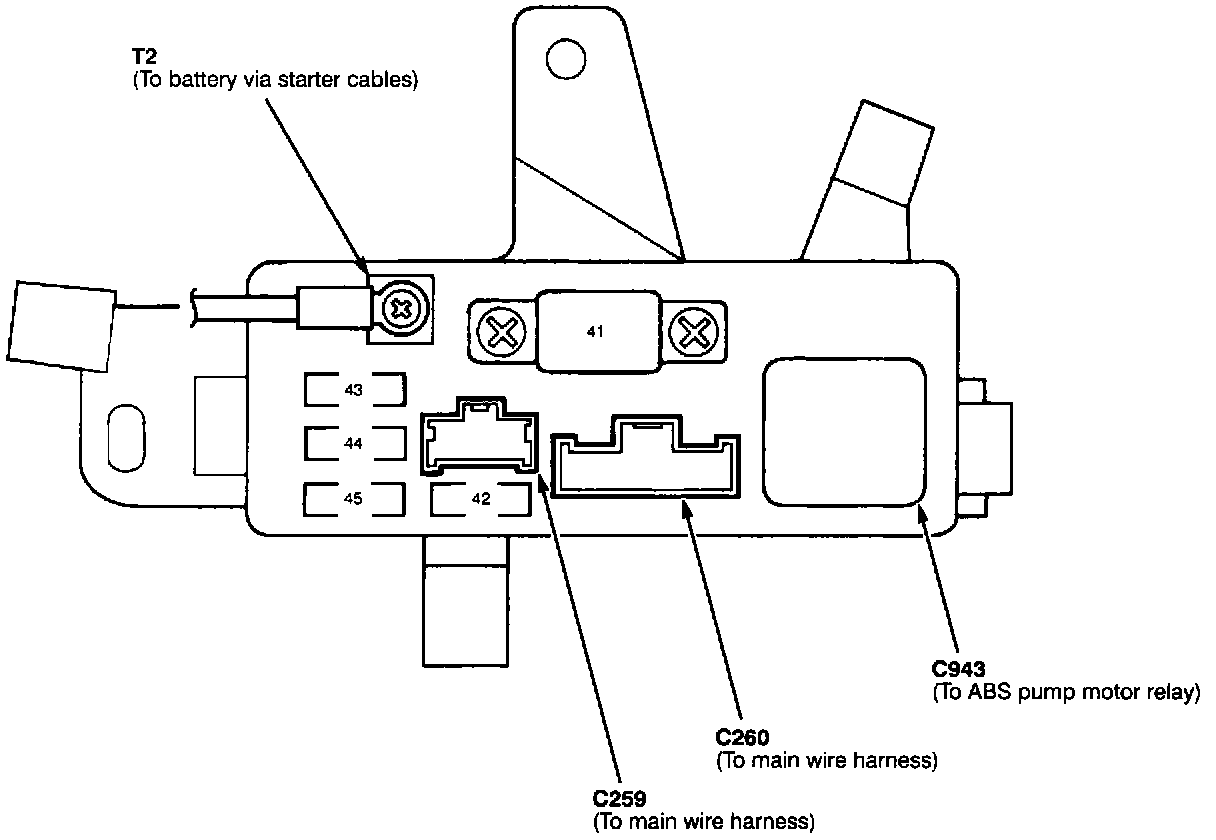

Under-hood ABS Fuse/Relay Box:

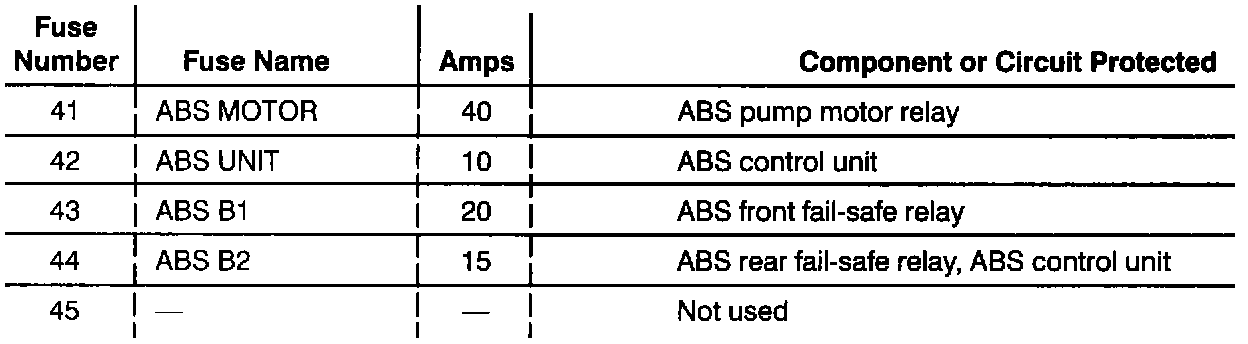

Fuse/Relay Information (Under-hood Anti-Lock Brake System Fuse/Relay Box):




Fuse/Relay Information (Under-hood Anti-Lock Brake System Fuse/Relay Box):
