Ignition Cable: Testing and Inspection

CAUTION: Carefully remove the ignition wires by pulling on the rubber boots. Do not bend the wires; you might break them inside.

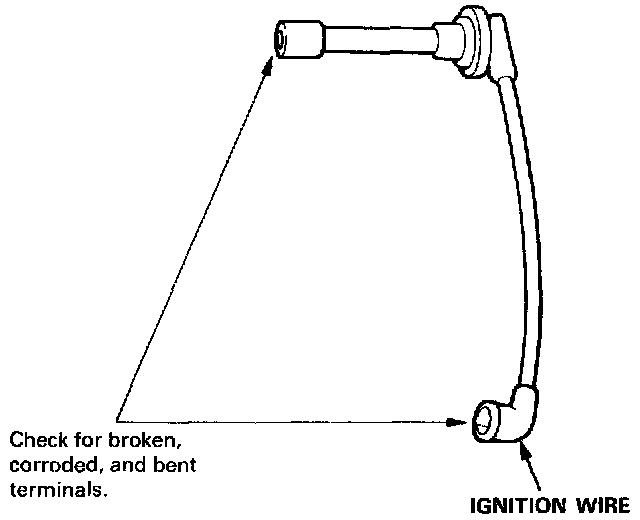

Ignition Wire Inspection And Test:

1. Check the condition of the wire terminals. If any terminal is corroded, clean it, and if it is broken or distorted, replace the wire.

Ignition Wire Inspection And Test:

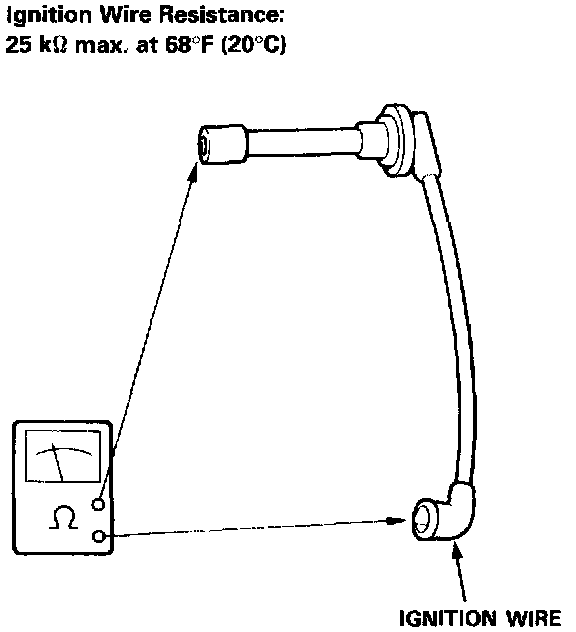

2. Connect ohmmeter probes and measure resistance.

Ignition Wire Resistance:
25 K Ohms max. at 68° F (20° C)

3. If resistance exceeds 25 K Ohms, replace the ignition wire.
