Home >> Honda Truck >> 1997 >> Odyssey LX L4-2156cc 2.2L SOHC MFI (F22B6) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Voltage Signal >> Testing and Inspection

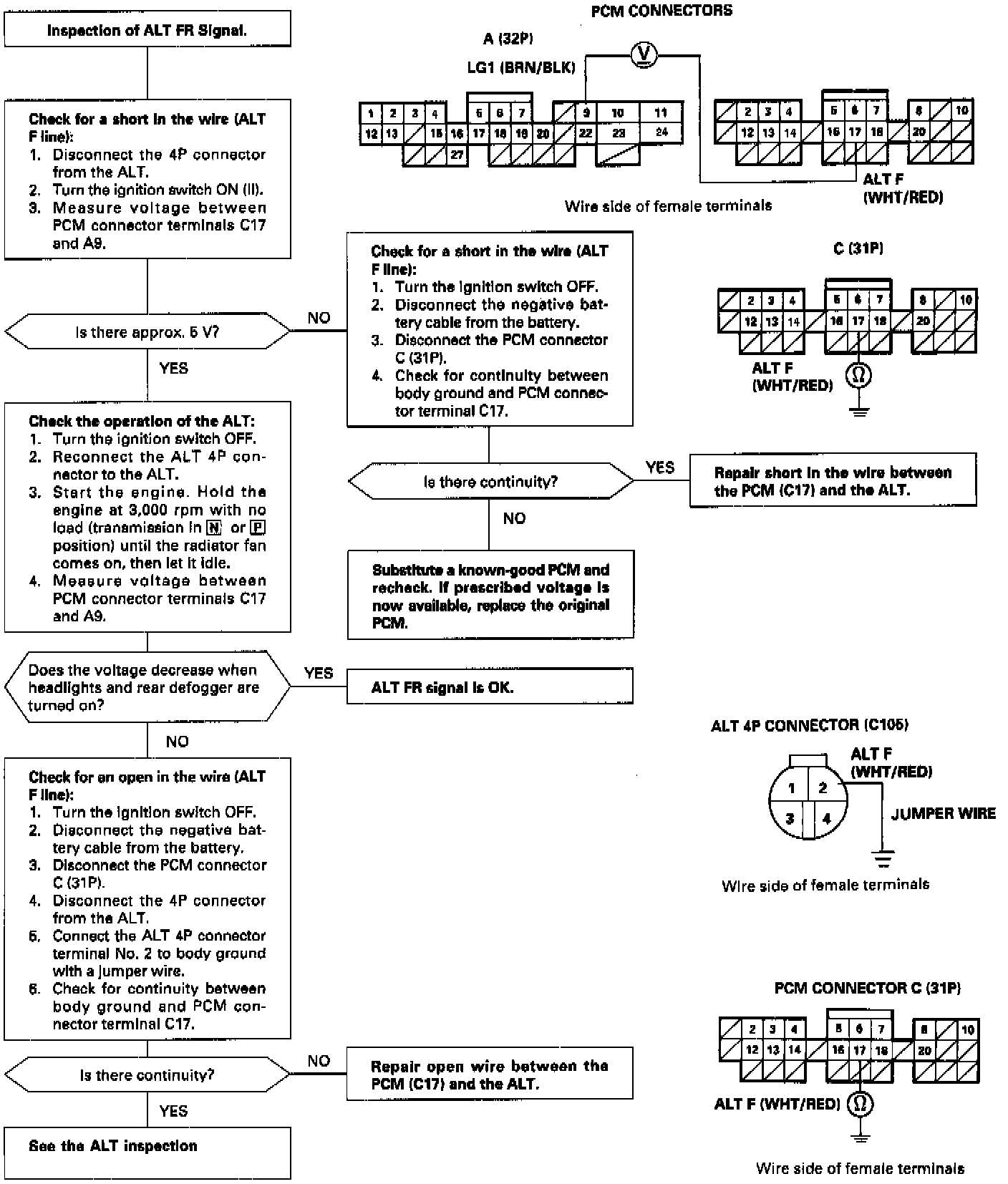

Voltage Signal: Testing and Inspection




This signals the PCM when the Alternator (ALT) is charging.
