Transmission Position Sensor/Switch: Testing and Inspection

A/T Gear Position Switch Test:

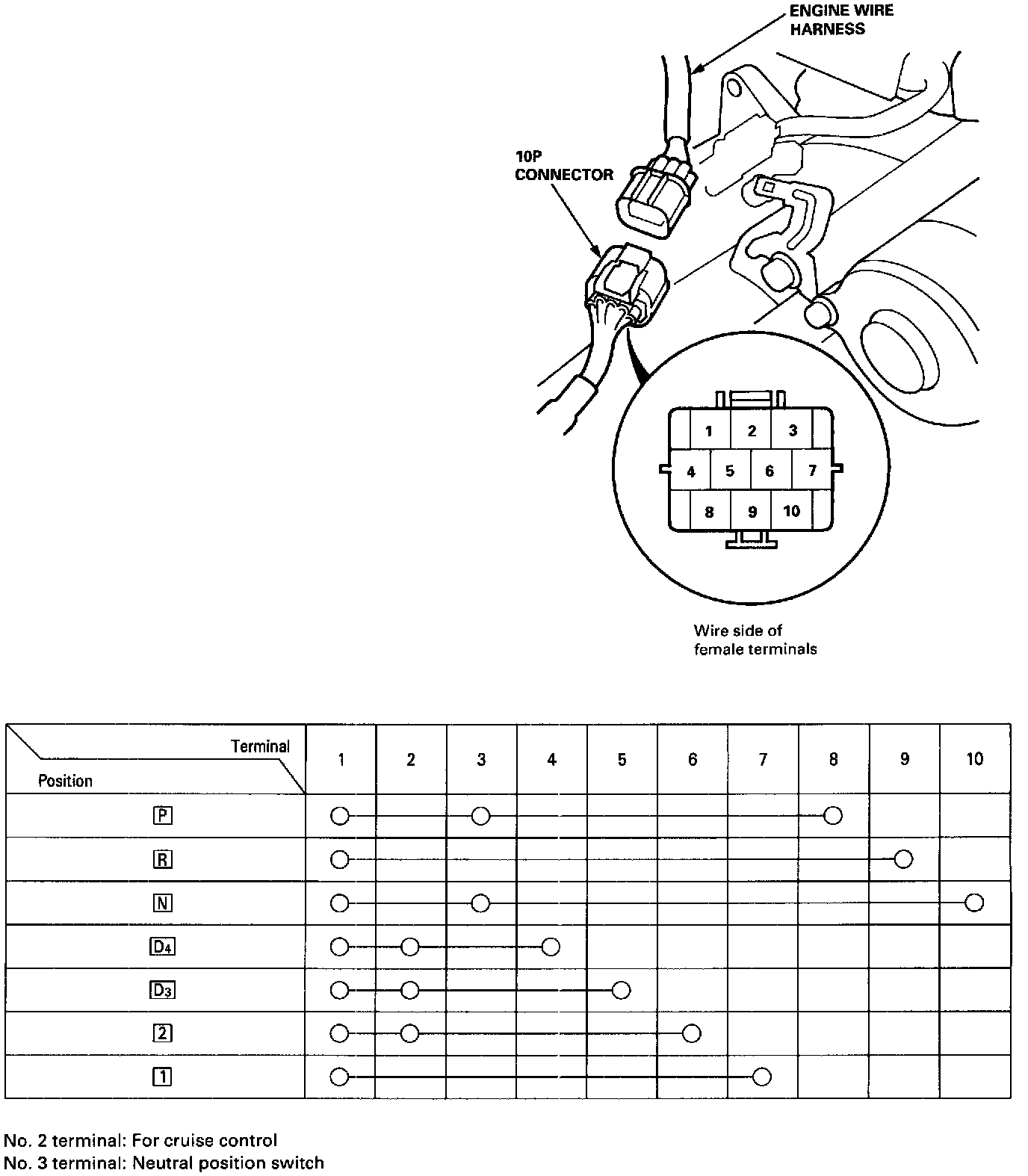

1. Disconnect the 10P connector from the Air gear position switch.
2. Check for continuity between the terminals in each shift lever position according to the table.

No. 2 terminal: For cruise control
No. 3 terminal: Neutral position switch
