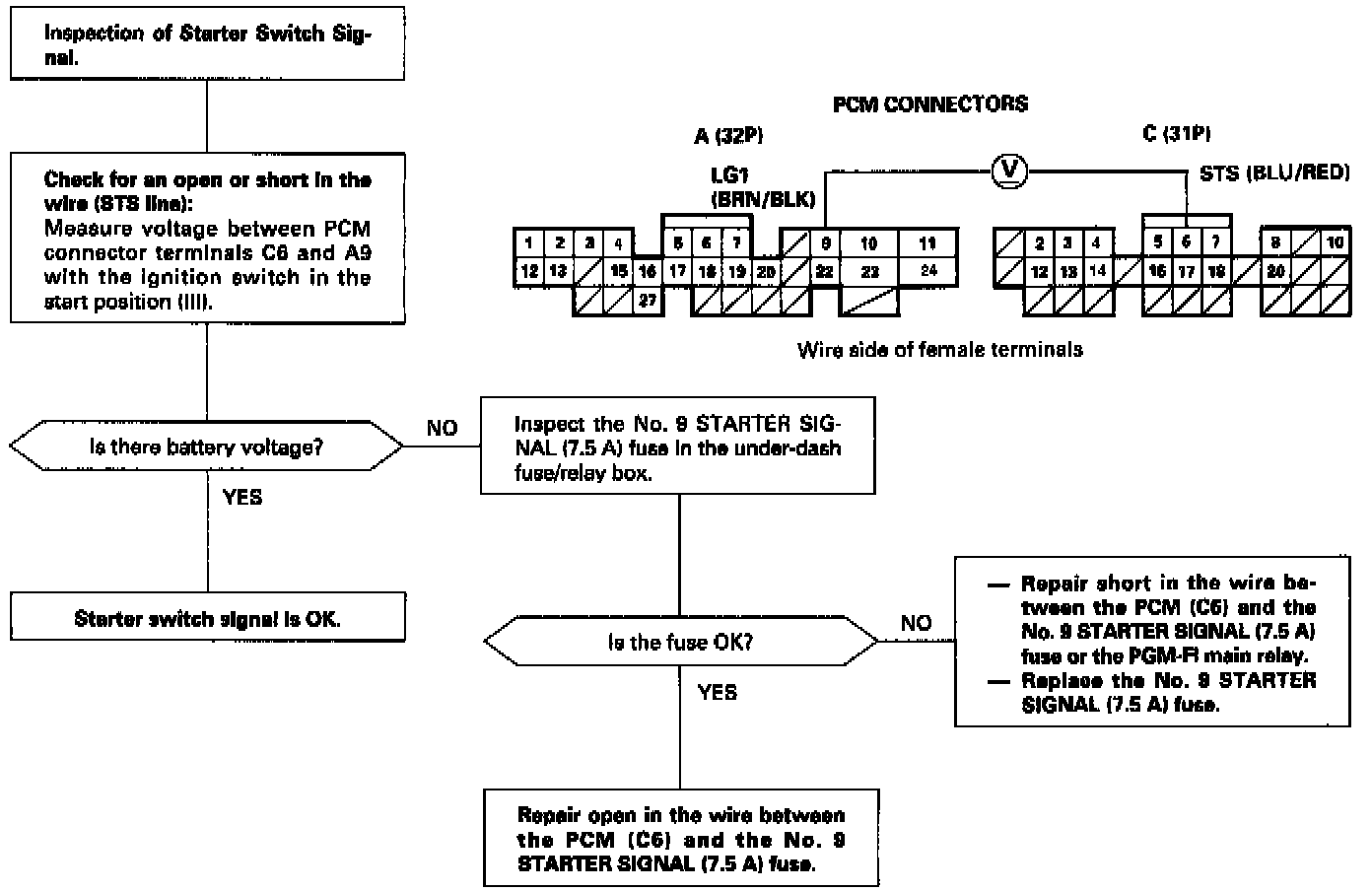

Starter Switch Signal




This signals the PCM when the engine is cranking.

NOTE: Transmission in [N] or [P] position.
