VSS Input Test
VSS Input Test

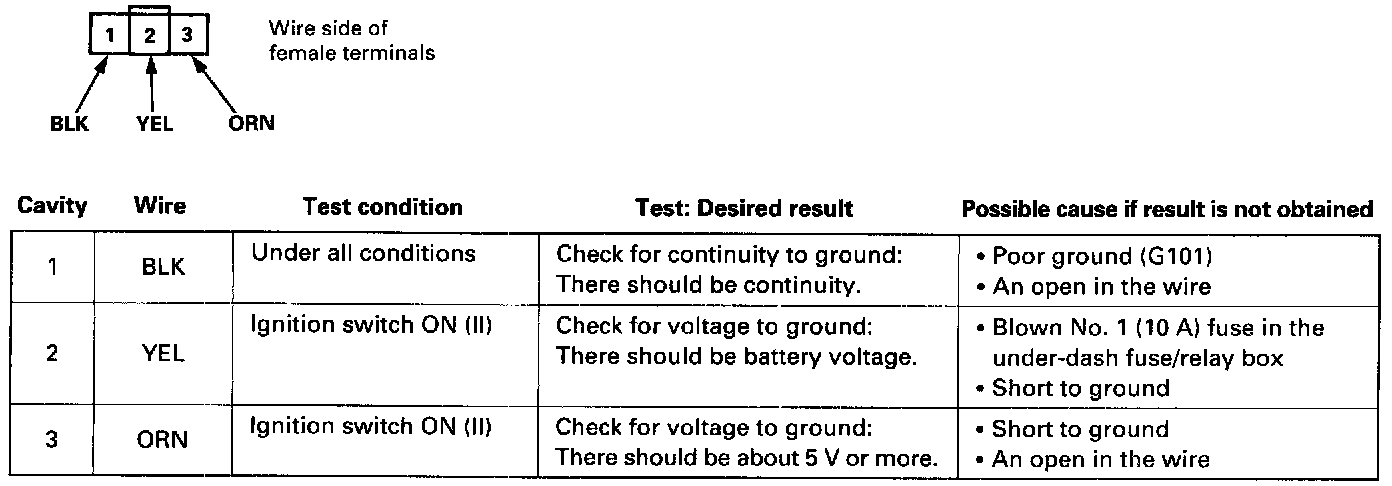

VSS Input Test:
NOTE:
A short to ground in the ORN wire can be caused by a short in any component connected to it.
