Home >> Honda Truck >> 1997 >> Odyssey LX L4-2156cc 2.2L SOHC MFI (F22B6) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Brake Signal >> Testing and Inspection

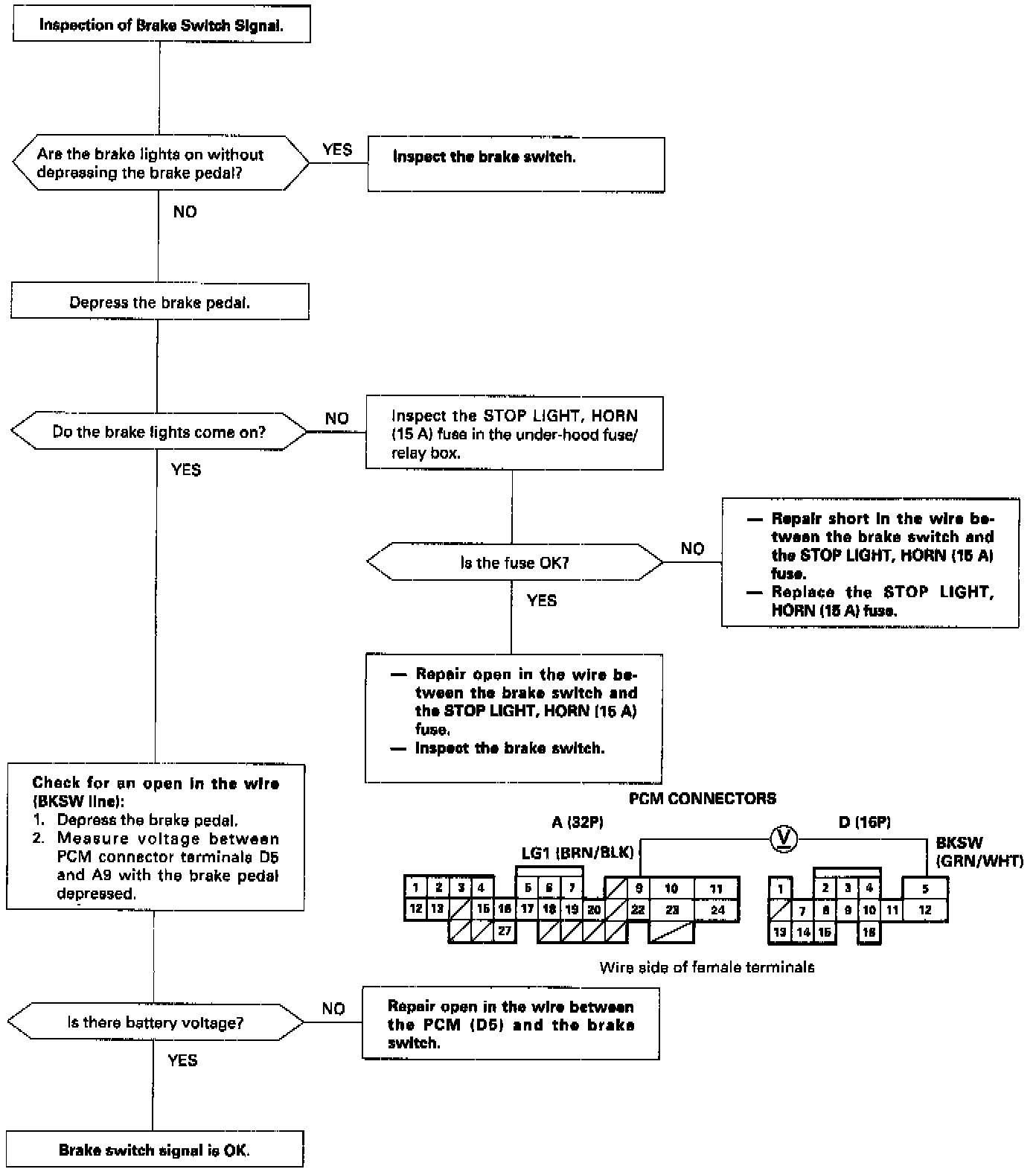

Brake Signal: Testing and Inspection




This signals the PCM when the brake pedal is depressed
