Home
>>
Honda Truck
>>
1997
>>
Odyssey LX L4-2156cc 2.2L SOHC MFI (F22B6)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>

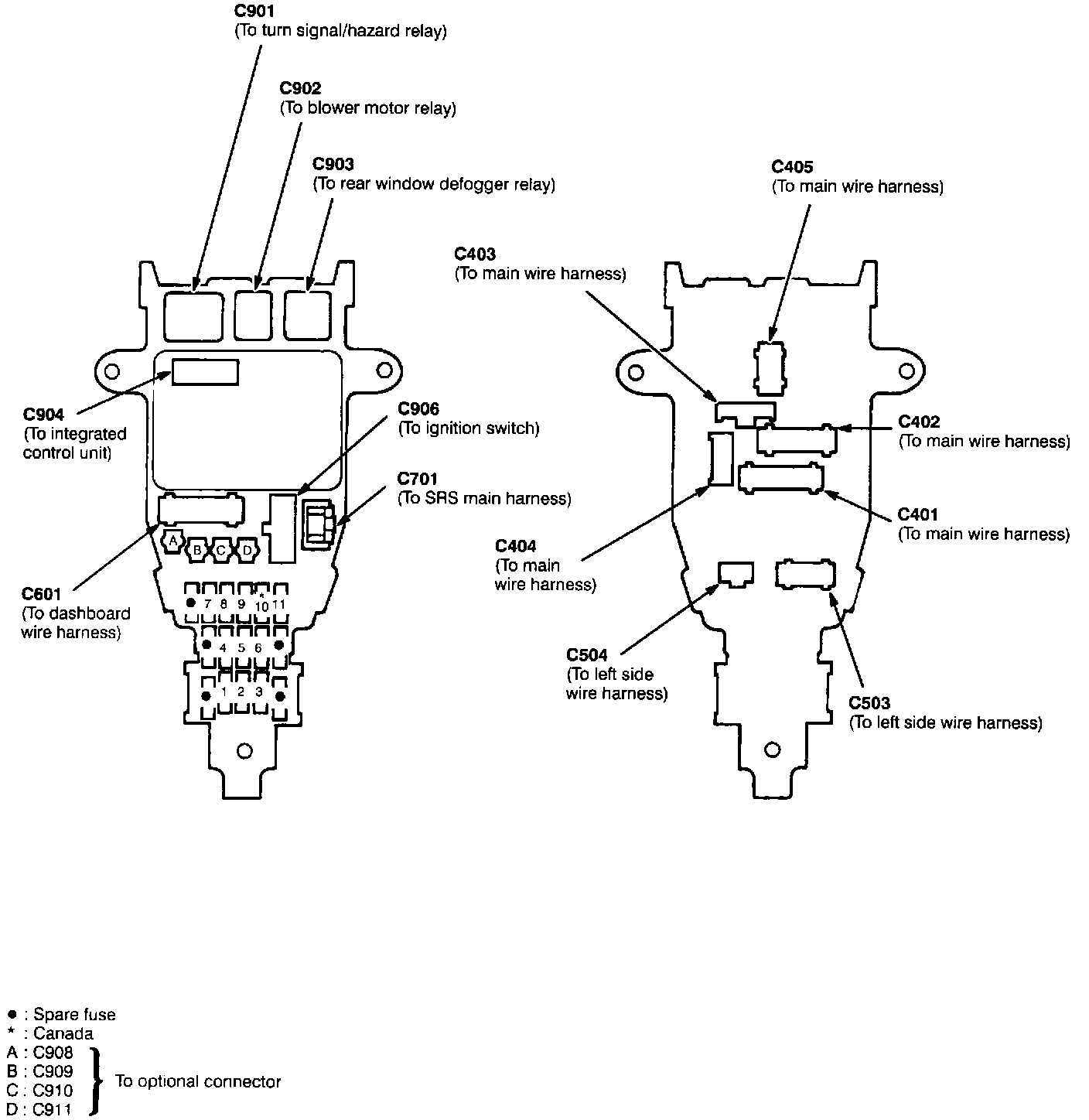

Under-Dash Fuse/Relay Box
>>
Under Dash Fuse/Relay Box
Under Dash Fuse/Relay Box

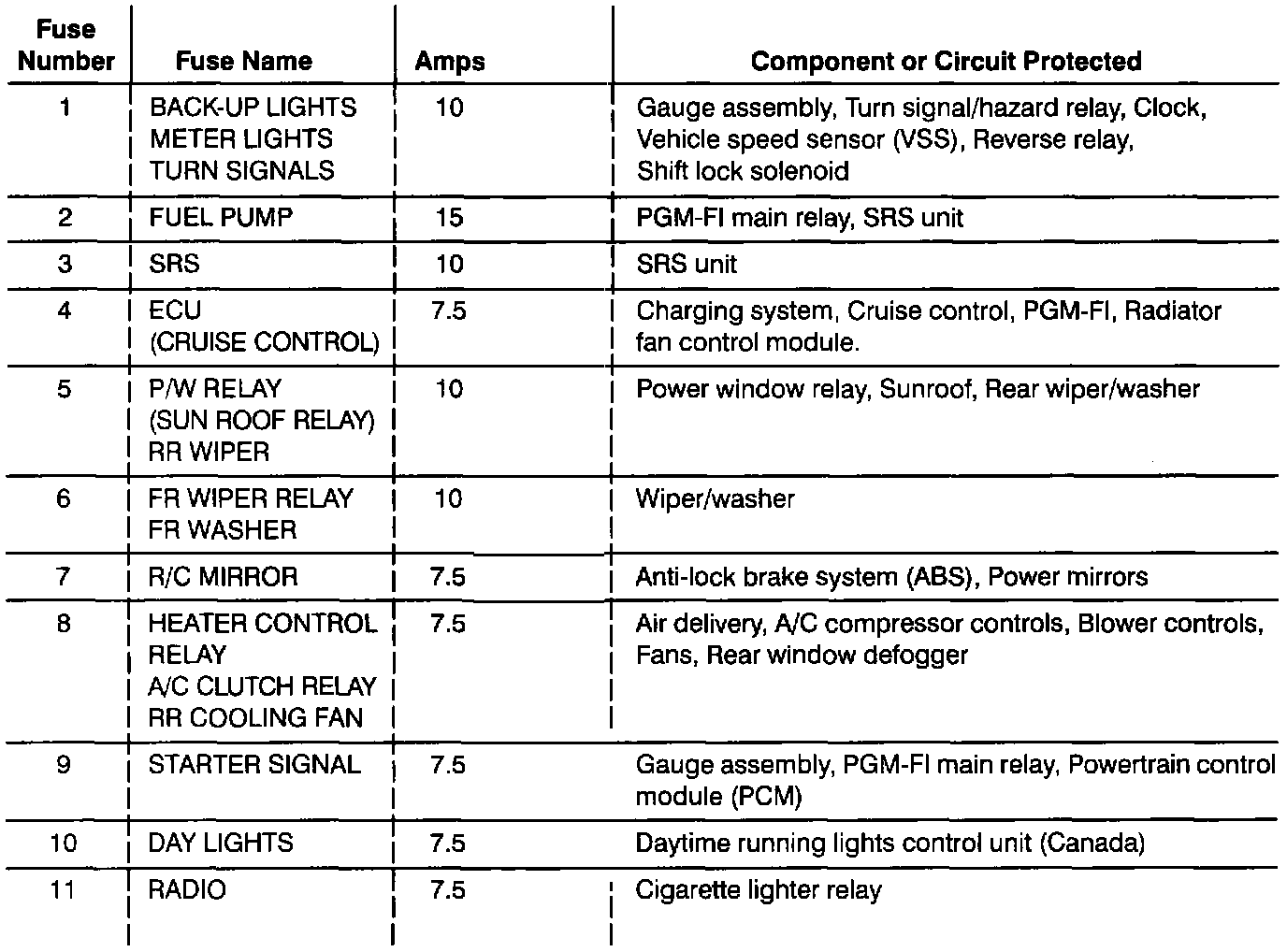

Fuse/Relay Information (Under-dash Fuse/Relay Box) (Part 1 Of 2):
Fuse/Relay Information (Under-dash Fuse/Relay Box) (Part 2 Of 2):
