Speedometer Module: Testing and Inspection

Troubleshooting:

NOTE:

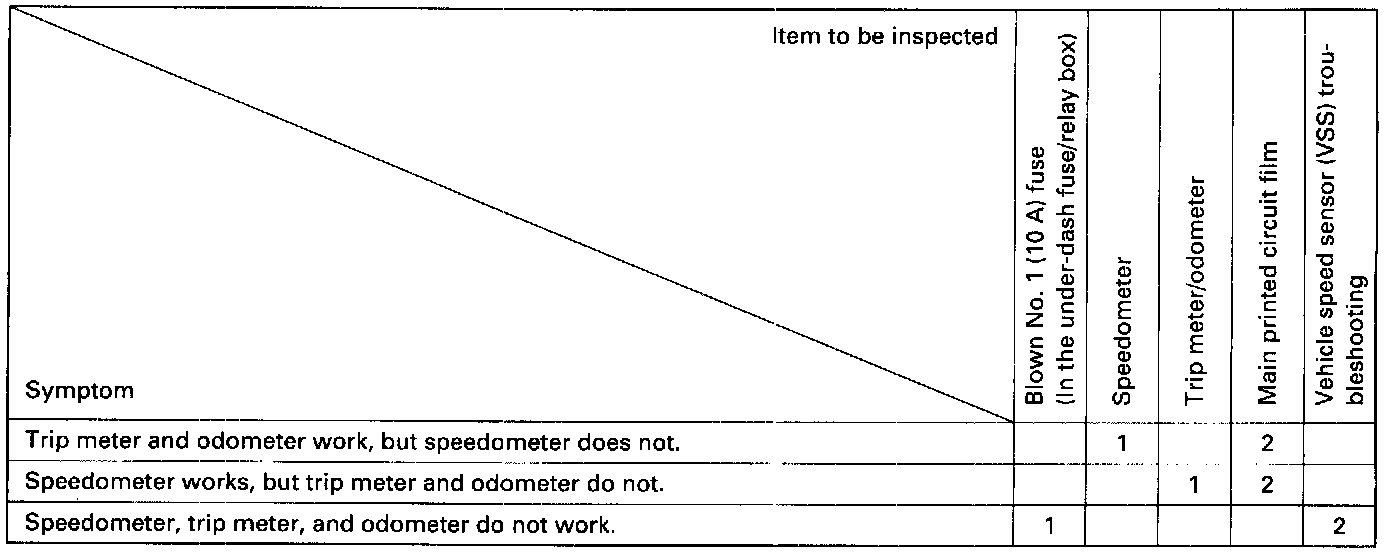

^ The numbers in the table show the troubleshooting sequence.
^ If necessary, replace the speedometer, trip meter, and odometer as a unit.
