Home >> Honda Truck >> 1997 >> Odyssey LX L4-2156cc 2.2L SOHC MFI (F22B6) >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Testing and Inspection >> Dual Air-Conditioning (Rear A/C Unit)

Dual Air-Conditioning (Rear A/C Unit)

Blower Motor Speed (part 1 Of 2):

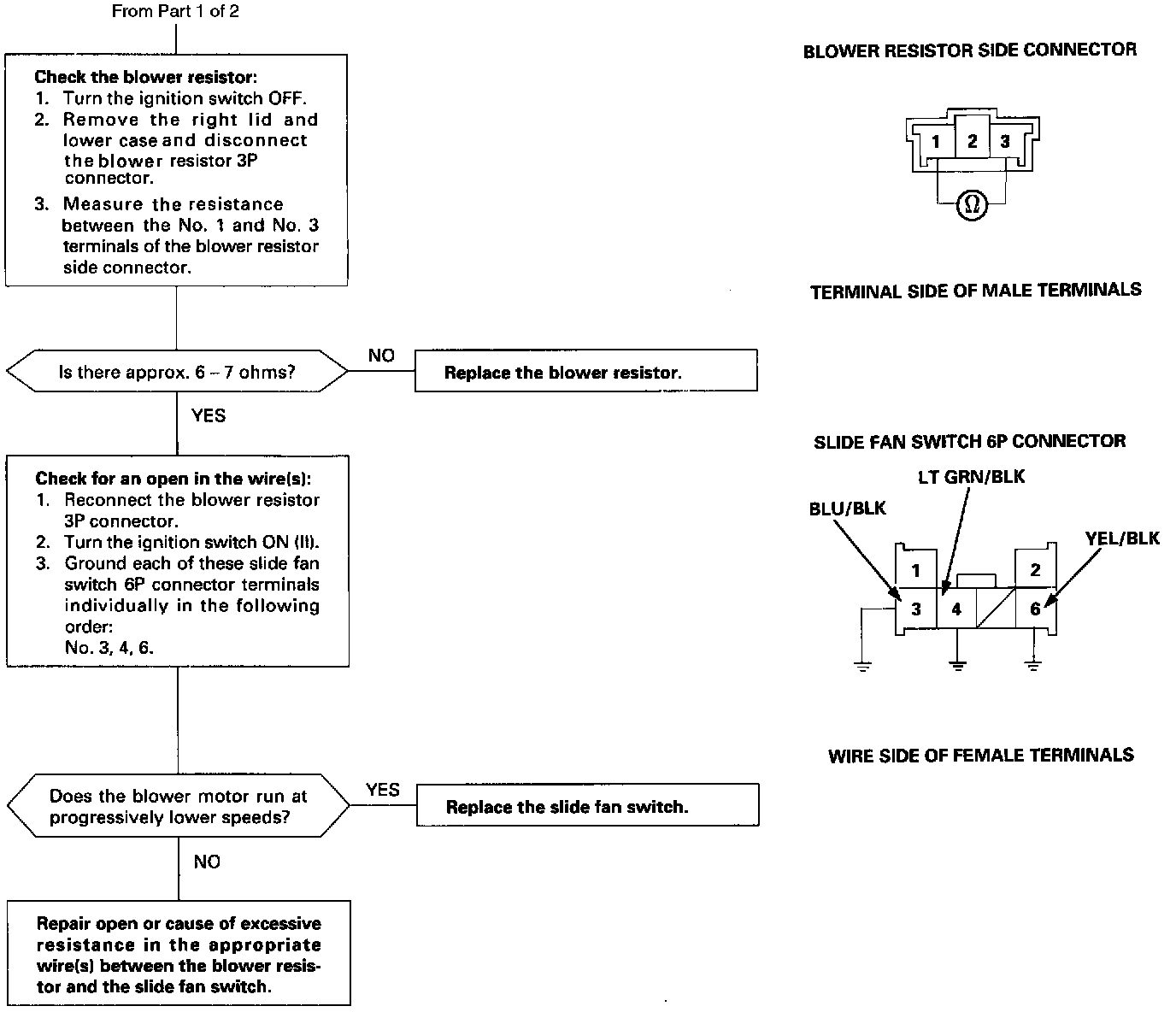

Blower Motor Speed (part 2 Of 2):
