Front A/C Unit

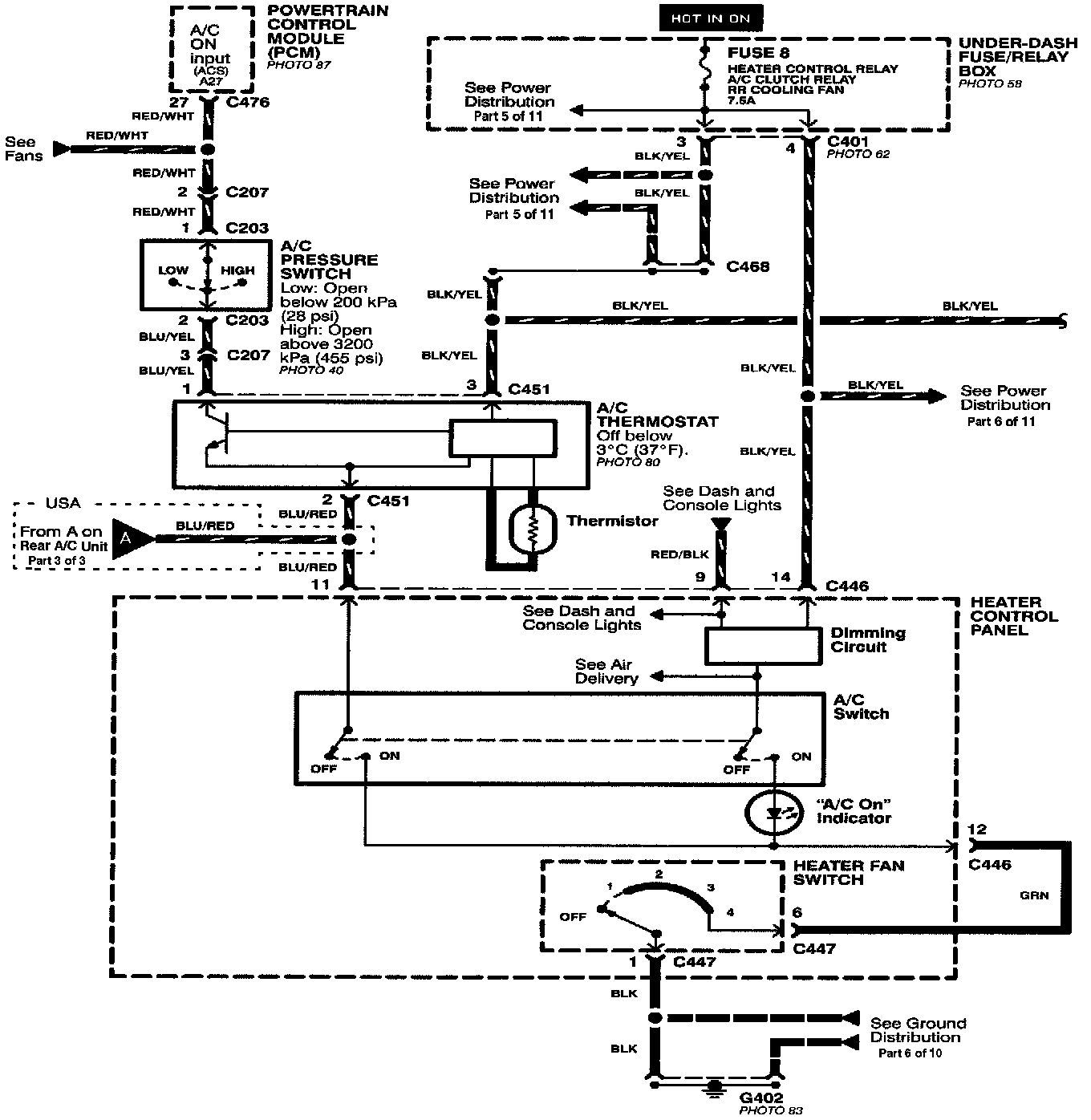

A/C Compressor Controls (Front A/C Unit) (Part 1 Of 2):

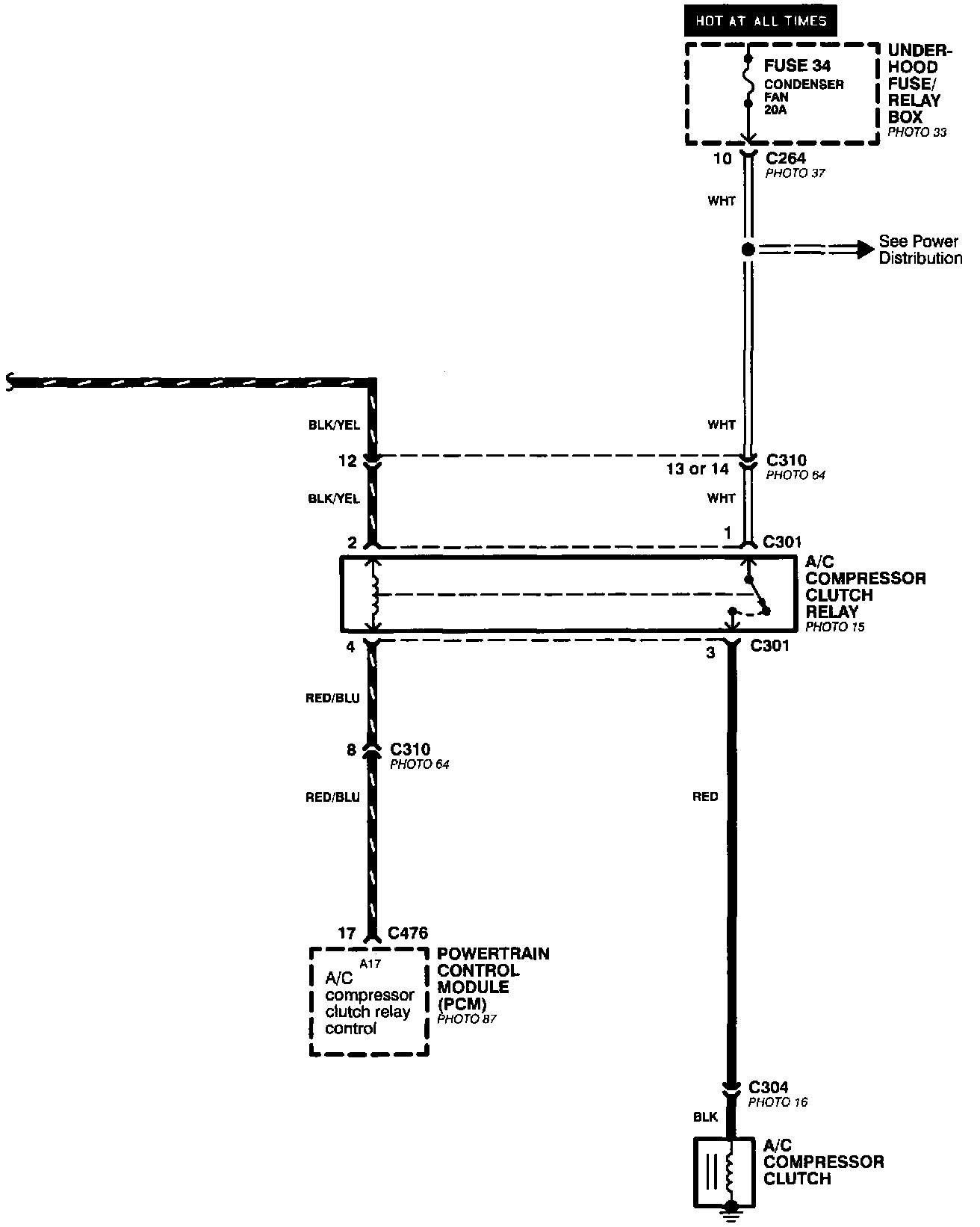

A/C Compressor Controls (Front A/C Unit) (Part 2 Of 2):

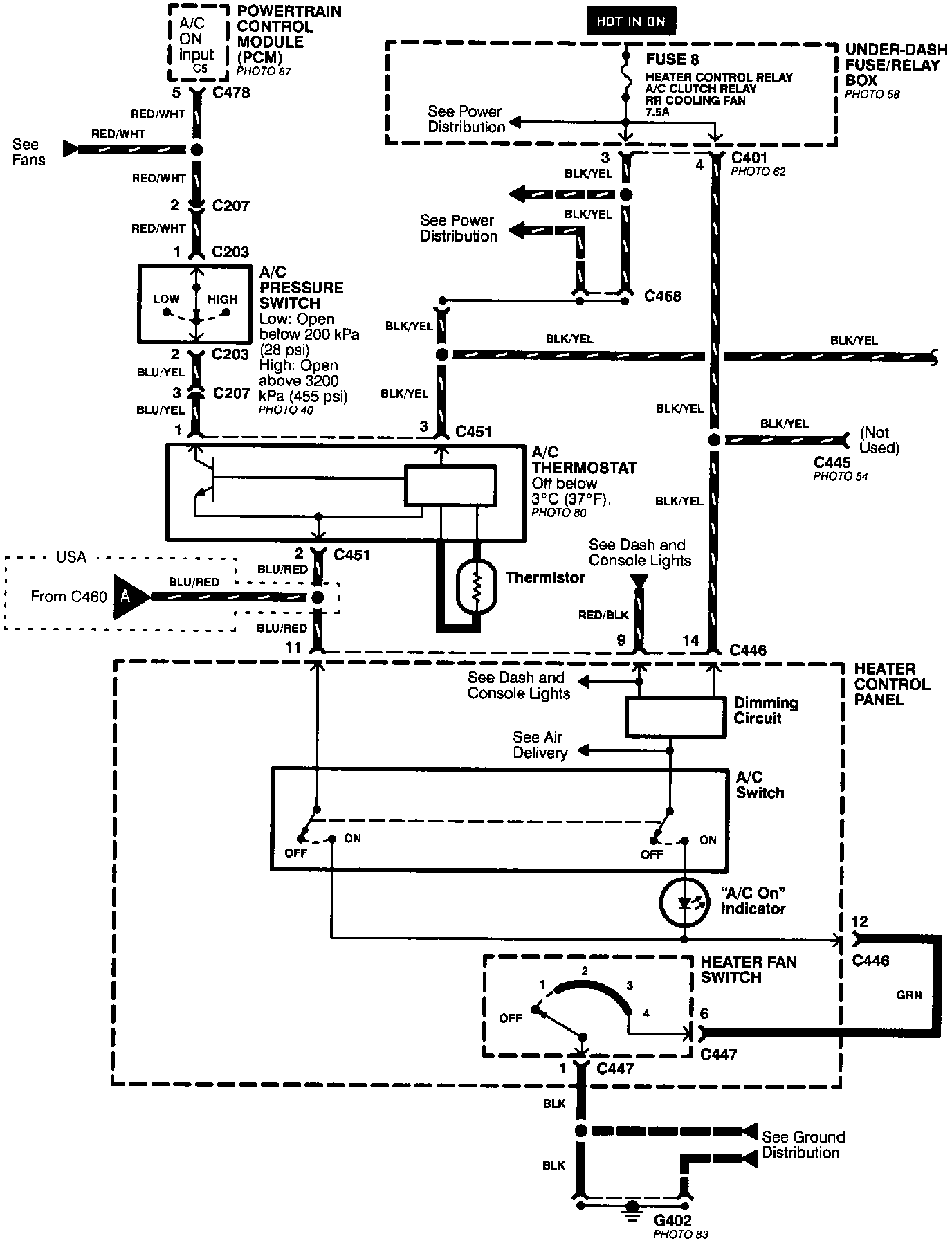

A/C Compressor Controls (Front A/C Unit) (Part 1 Of 2):

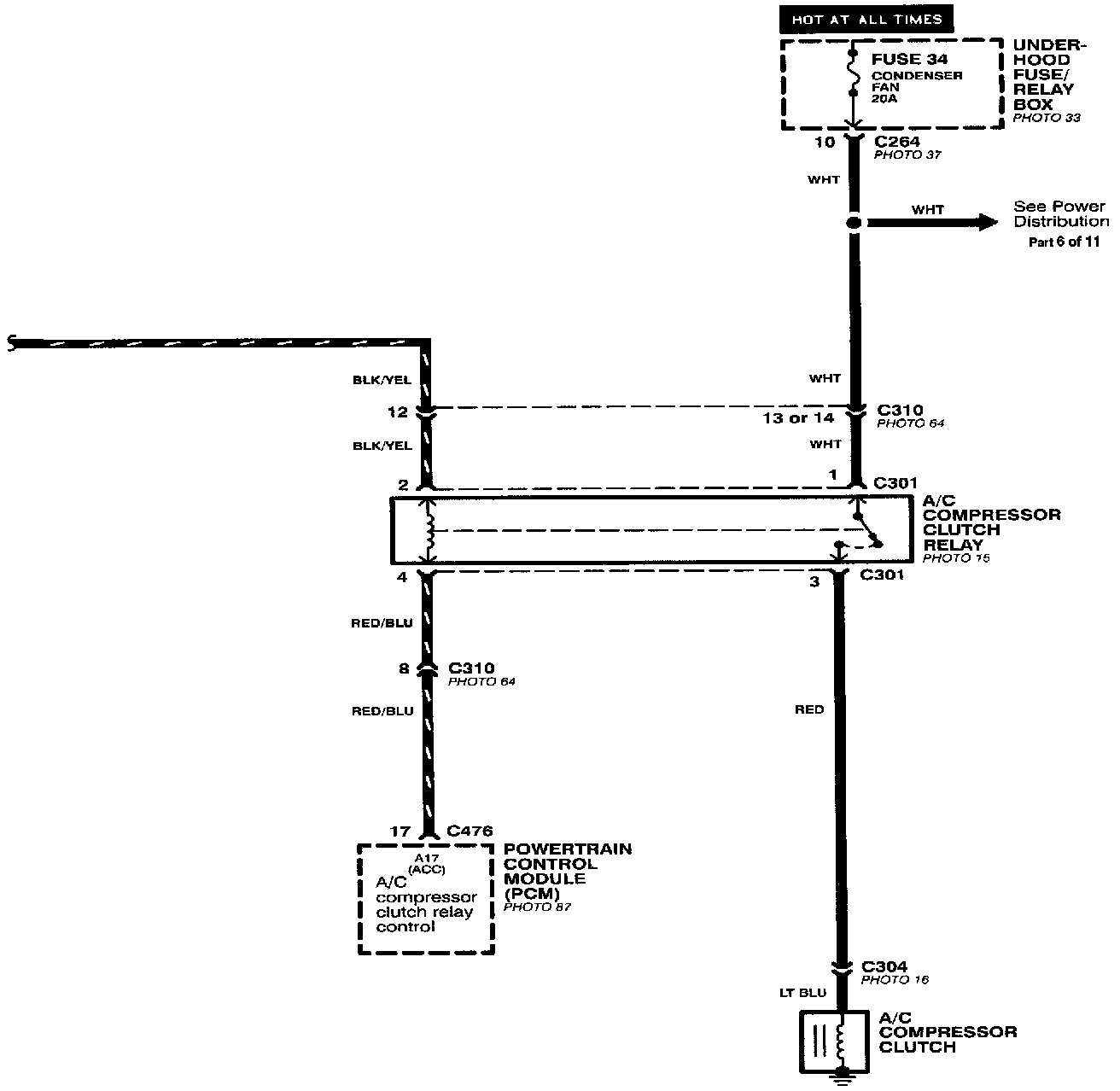

A/C Compressor Controls (Front A/C Unit) (Part 2 Of 2):
