Set/Resume Switch Test/Replacement

SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS section before performing repairs or service.

1. Make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset buttons.
2. Disconnect the battery negative cable, then disconnect the positive cable, and wait at least three minutes.
3. Disconnect the airbags.

Cruise Control-Set/Resume Switch Test/Replacement-Driver's Side:

Driver's Side:

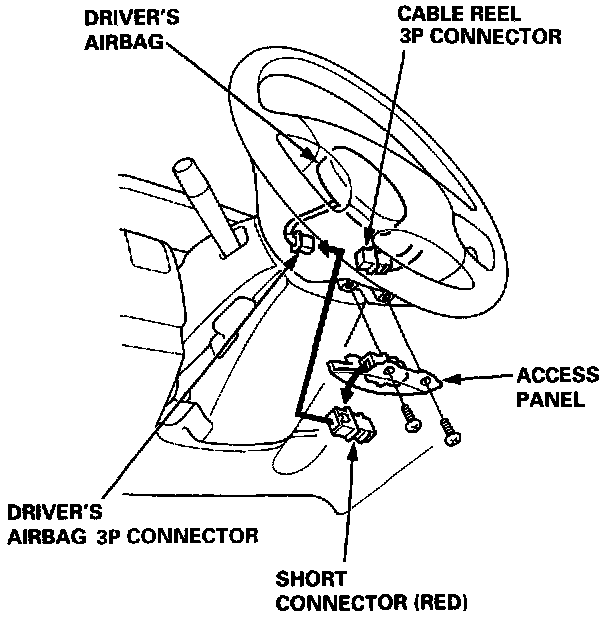

^ Remove the access panel from the steering wheel, then remove the short connector (RED) from the panel.
^ Disconnect the 3P connector between the driver's airbag and cable reel, then connect the short connector (RED) to the airbag side of the connector.

Cruise Control-Set/Resume Switch Test/Replacement-Front Passenger's Side:

Front Passenger's Side:
^ Remove the dashboard compartment.

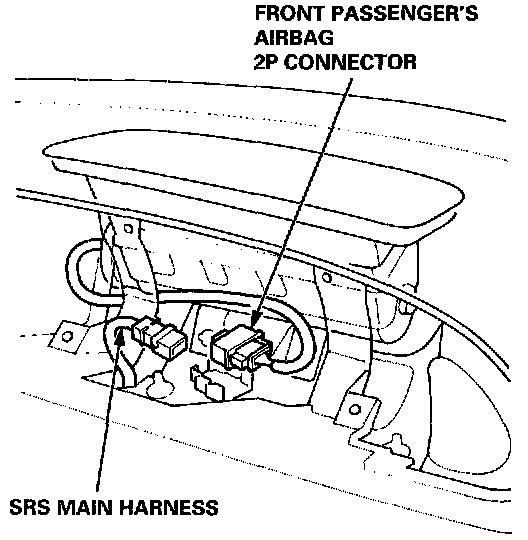

^ Disconnect the front passenger's 2P connector from the SRS main harness.

4. Remove the dashboard lower cover and knee bolster.

Cruise Control-Set/Resume Switch Test/Replacement-Front Passenger's Side:

5. Disconnect the cable reel 6P connector from the SRS main harness, then connect test harness C only to the cable reel side of the 6P connector.

Cruise Control-Set/Resume Switch Test/Replacement-Front Passenger's Side:

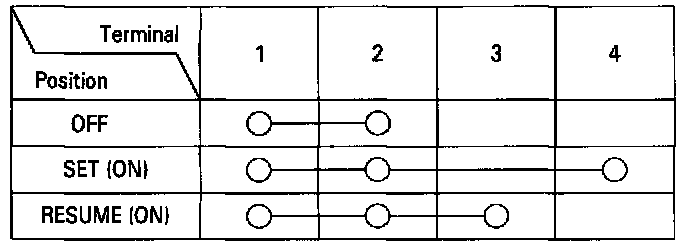

6. Check for continuity between the terminals of test harness C in each switch position according to the table.

^ If there is continuity, and it matches the table, the switch is OK.
^ If there is no continuity in one or both positions, go to step 7.

Cruise Control-Set/Resume Switch Test/Replacement-Front Passenger's Side:

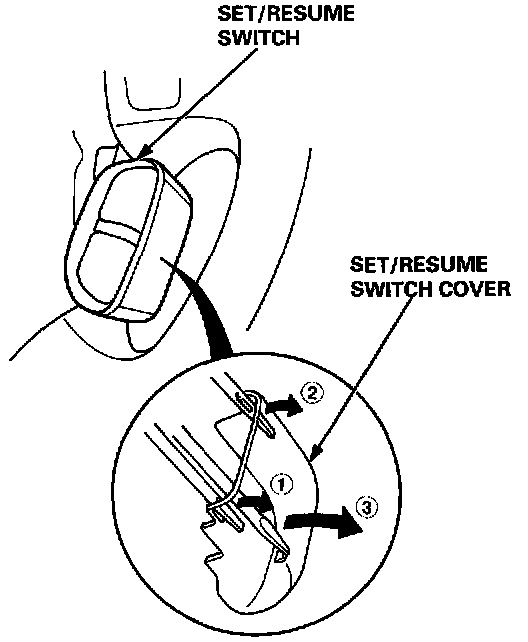

7. Carefully remove the set/resume switch cover by prying between the cover and the switch in the sequence shown.

Cruise Control-Set/Resume Switch Test/Replacement-Front Passenger's Side:

8. Remove the Torx bolts using a Torx T30 bit, then remove the driver's airbag assembly.

Cruise Control-Set/Resume Switch Test/Replacement-Front Passenger's Side:

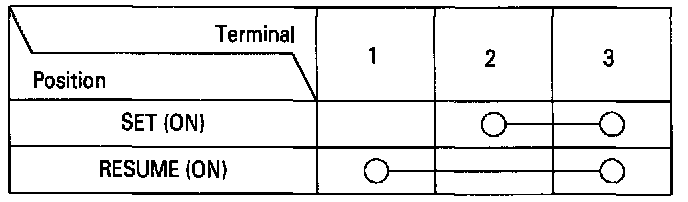

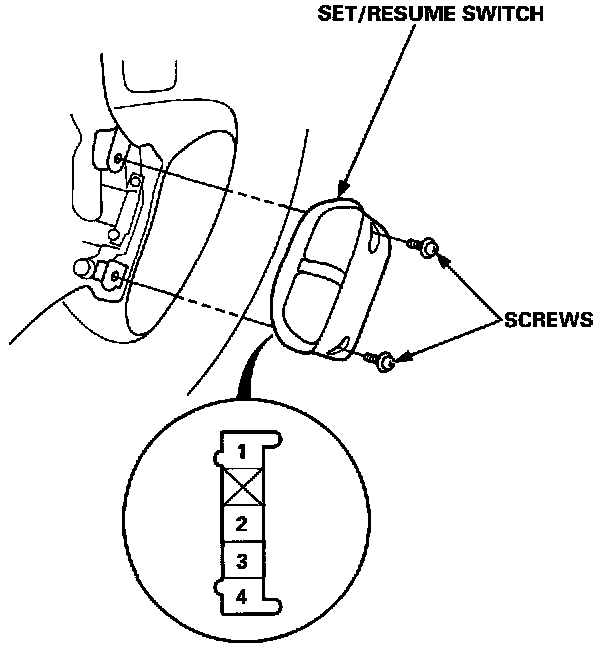

9. Check for continuity between the terminals in each switch position according to the table.

^ If there is continuity and it matches the table, replace the cable reel.
^ If there is no continuity in one or both positions, replace the switch.

10. If all the tests prove OK, reinstall and reconnect all removed parts, then reconnect the battery cables. Enter the anti-theft code for the radio, then enter the customer's radio station presets.
