Electronic Brake Control Module: Service and Repair

- Remove the right kick panel.
- Disconnect the ABS control unit connectors.

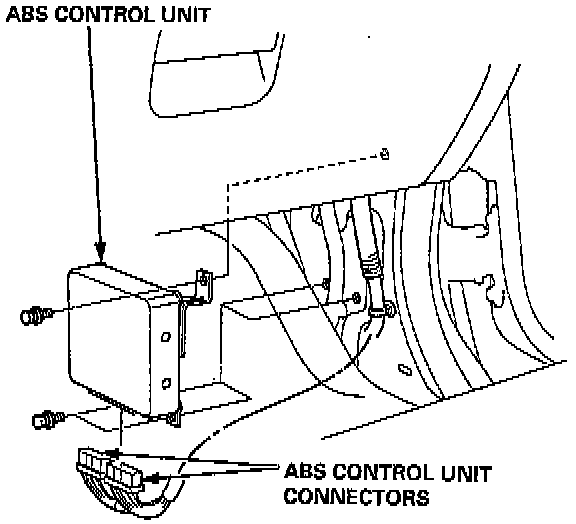

ABS Control Unit:

- Remove the ABS control unit mounting bolts, then remove the control unit.
- Install the ABS control unit in the reverse order of removal.
