Quarter Window Regulator: Service and Repair

Replacement

CAUTION: Put on gloves to protect your hands.

1. Remove:
- Door panel.
- Plastic cover.

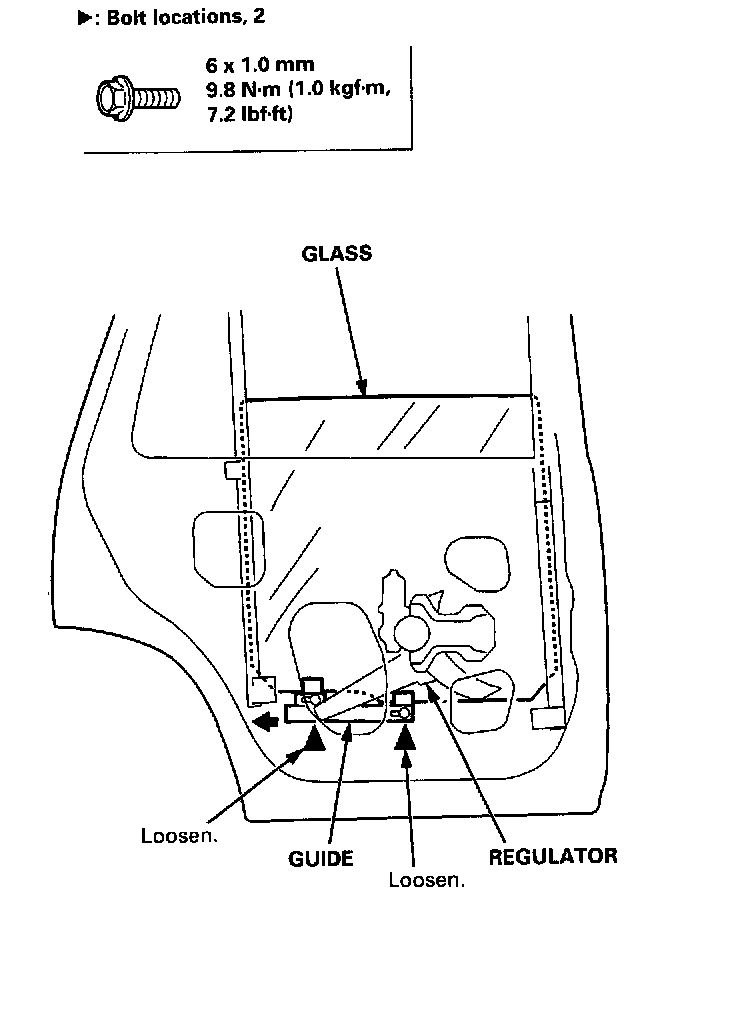

2. Carefully move the glass until you can see the bolts, then loosen them. Slide the guide to the rear, then remove the glass from the guide.

NOTE: Take care not to drop the glass inside the door.

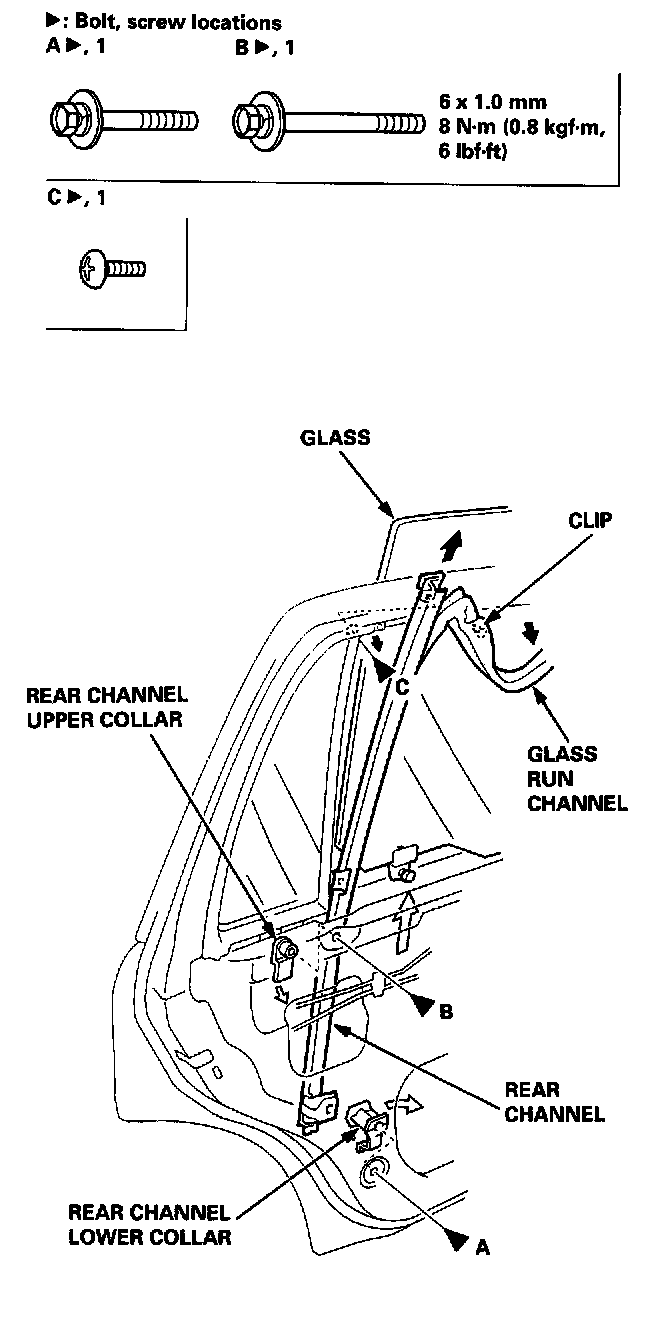

3. Carefully lower the glass. Remove the bolts and screw from the rear channel, then pull the rear channel up as shown. Remove the glass from the rear channel. Carefully pull the glass out through the window slot.

NOTE: Take care not to drop the glass inside the door.

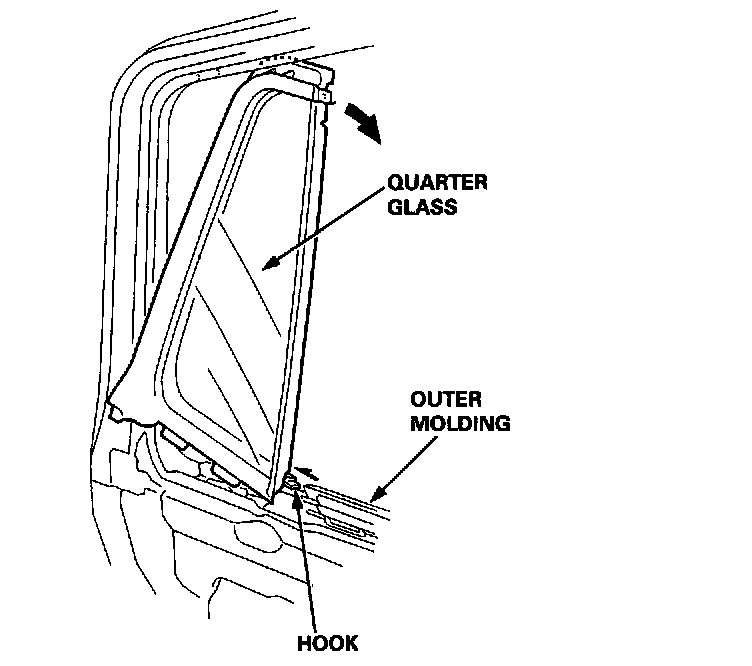

4. Remove the quarter glass.

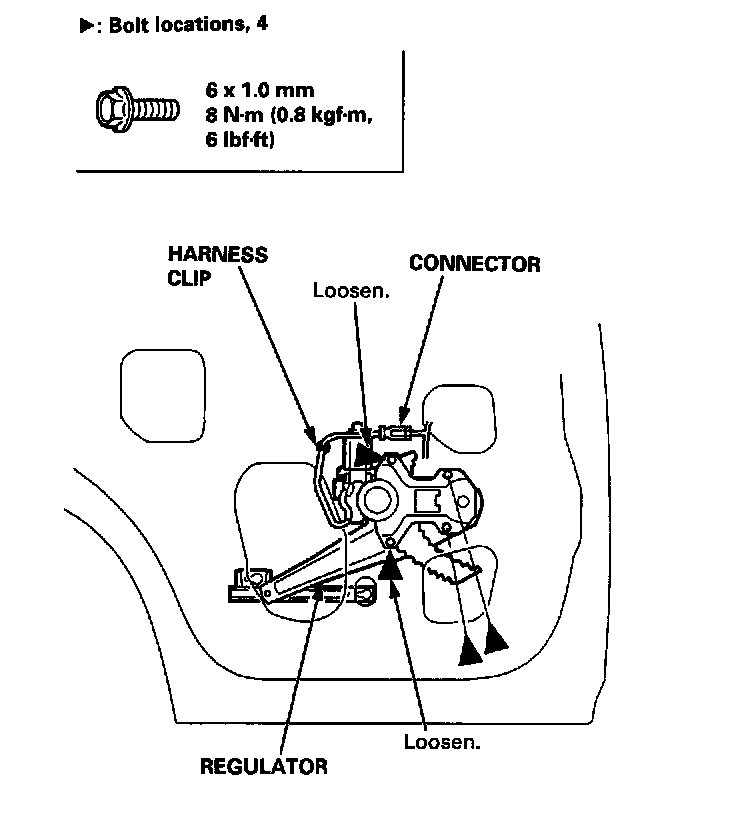

5. Disconnect the connector, and detach the harness clip, then remove the regulator through the hole in the door.

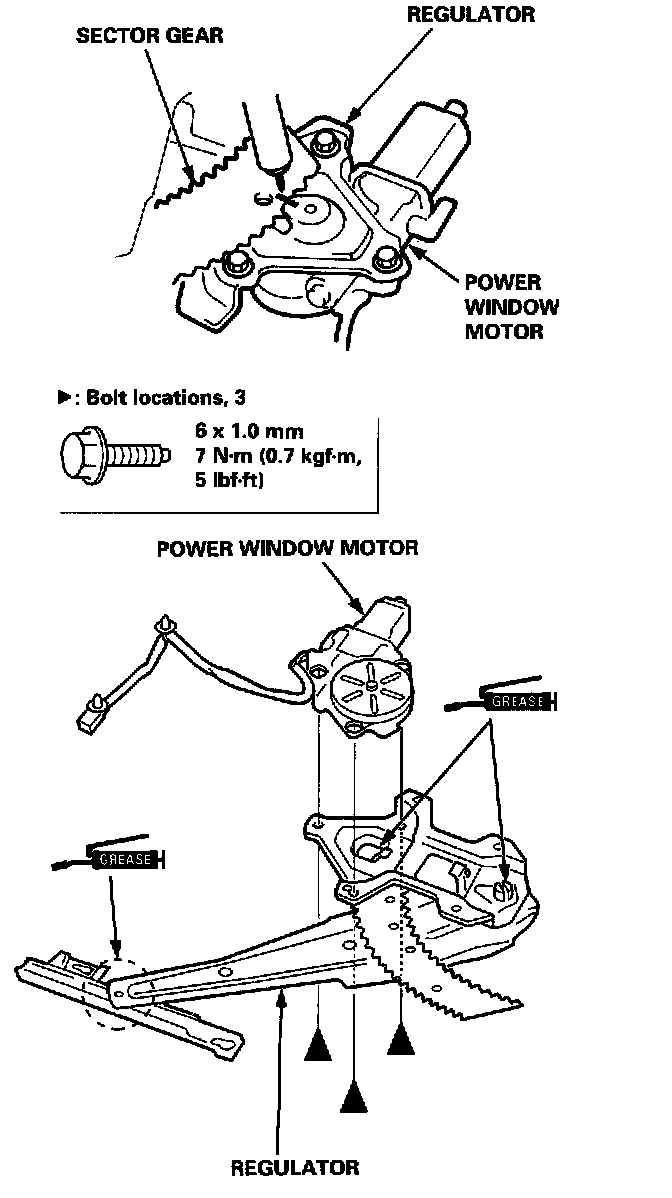

6. Grease all the sliding surfaces of the regulator where shown.

NOTE: If it is necessary to remove the power window motor from the regulator, scribe a line across the sector gear and regulator before you remove the power window motor.

7. Installation is the reverse of the removal procedure.

NOTE: Roll the glass up and down to see if it moves freely without binding. Also make sure that there is no clearance between the glass and glass run channel when the glass is closed. Adjust the position of the glass as necessary.
