Removal and Replacement

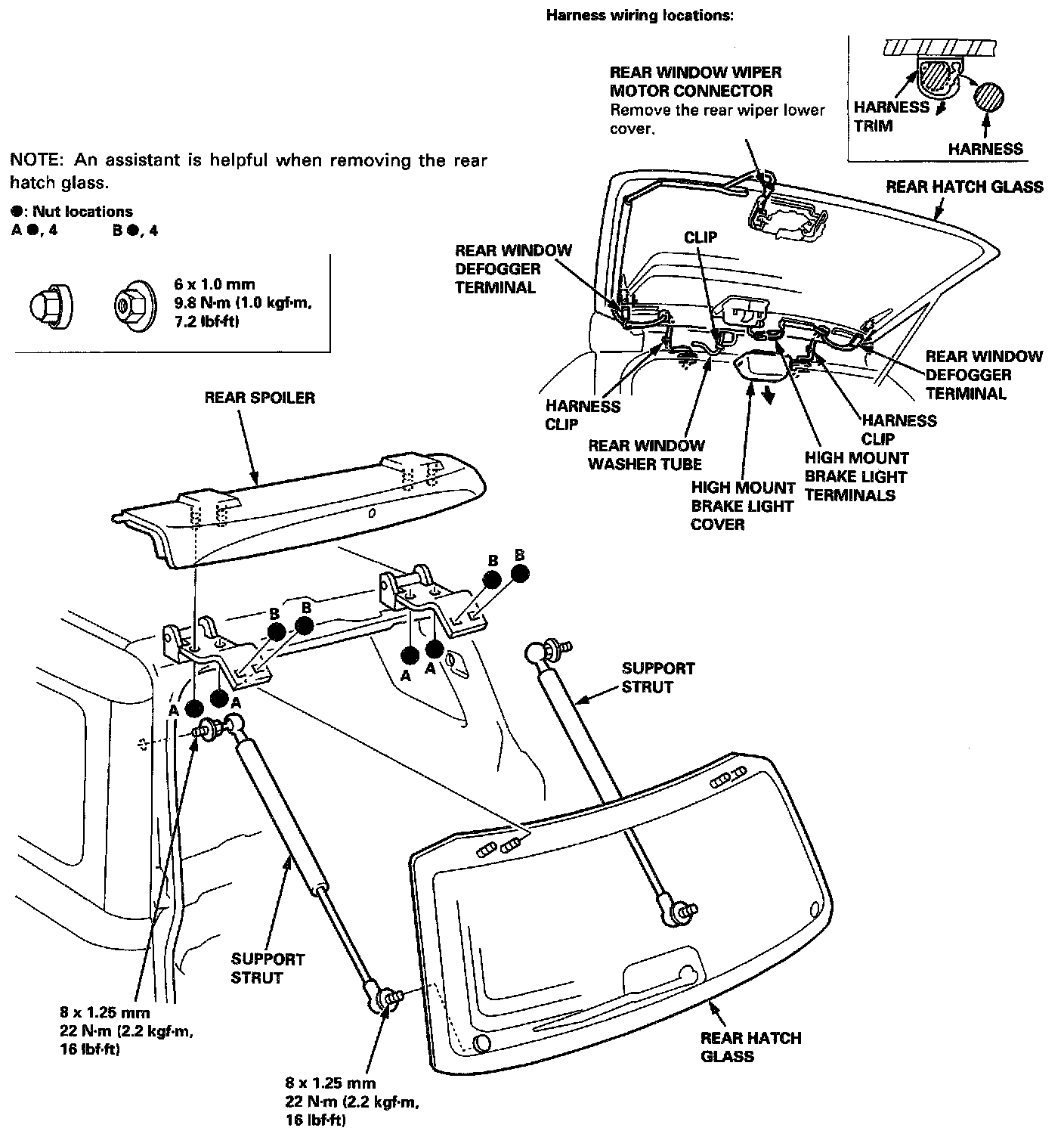

Rear Hatch Glass

Replacement






CAUTION:
- Put on gloves to protect your hands.
- Use seat covers to avoid damaging any surfaces.
- Do not damage the rear window defogger grid lines and terminals.

Installation is the reverse of the removal procedure

NOTE:
- Adjust the rear hatch glass alignment.
- Make sure the connector, terminals and washer tube are connected properly.
- Adjust the aim of the rear window washer nozzle.
