Overhaul

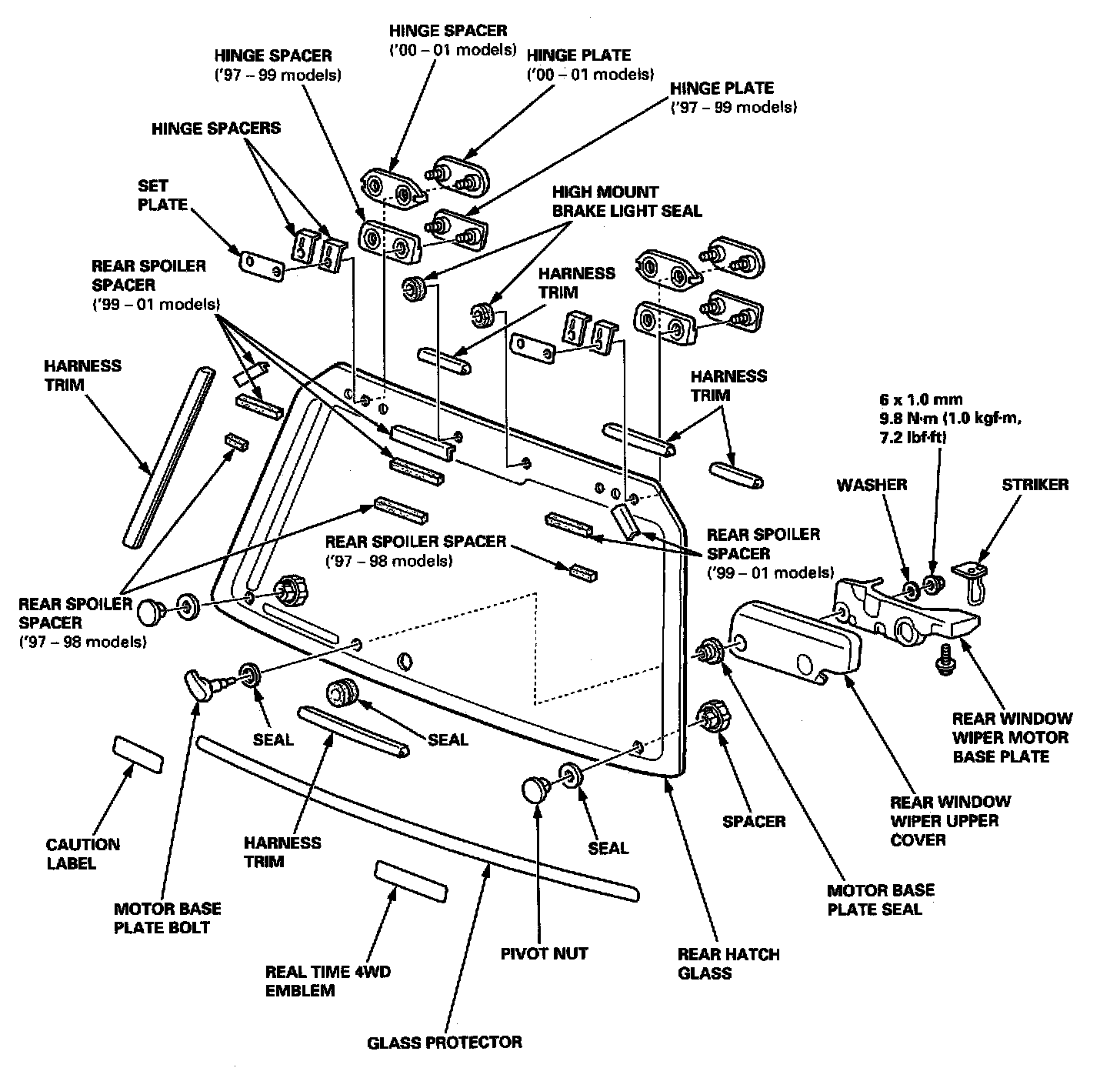

Rear Hatch Glass







Disassembly and Reassembly

NOTE:
- Take care not to scratch the rear hatch glass.
- If necessary, replace any damaged spacers and seals.
- Refer to rear window wiper motor removal and high mount brake light removal.

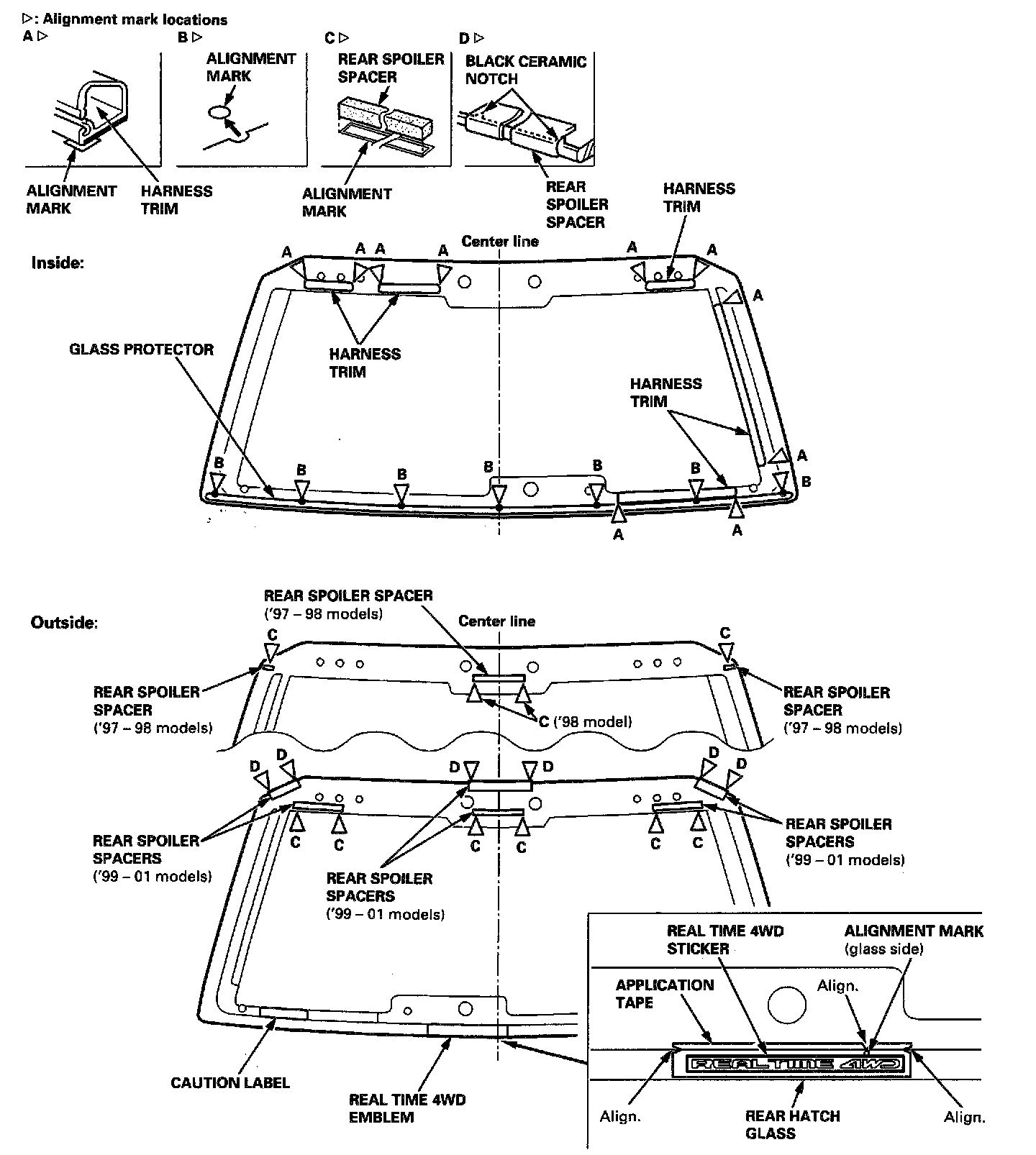

- Before installing the rear spoiler spacer, harness trim, caution label, real time 4WD emblem, and glass protector, clean the rear hatch glass bonding surface with a sponge dampened in alcohol.
