Liftgate Window Glass: Adjustments

Rear Hatch Glass

Adjustment

NOTE:
- After adjusting the tailgate door, adjust the rear hatch glass.
- Loosen the striker mounting bolts slightly.
- Remove the rear spoiler, and remove the support strut from body side.

1. Loosen the rear hatch glass mounting nuts.

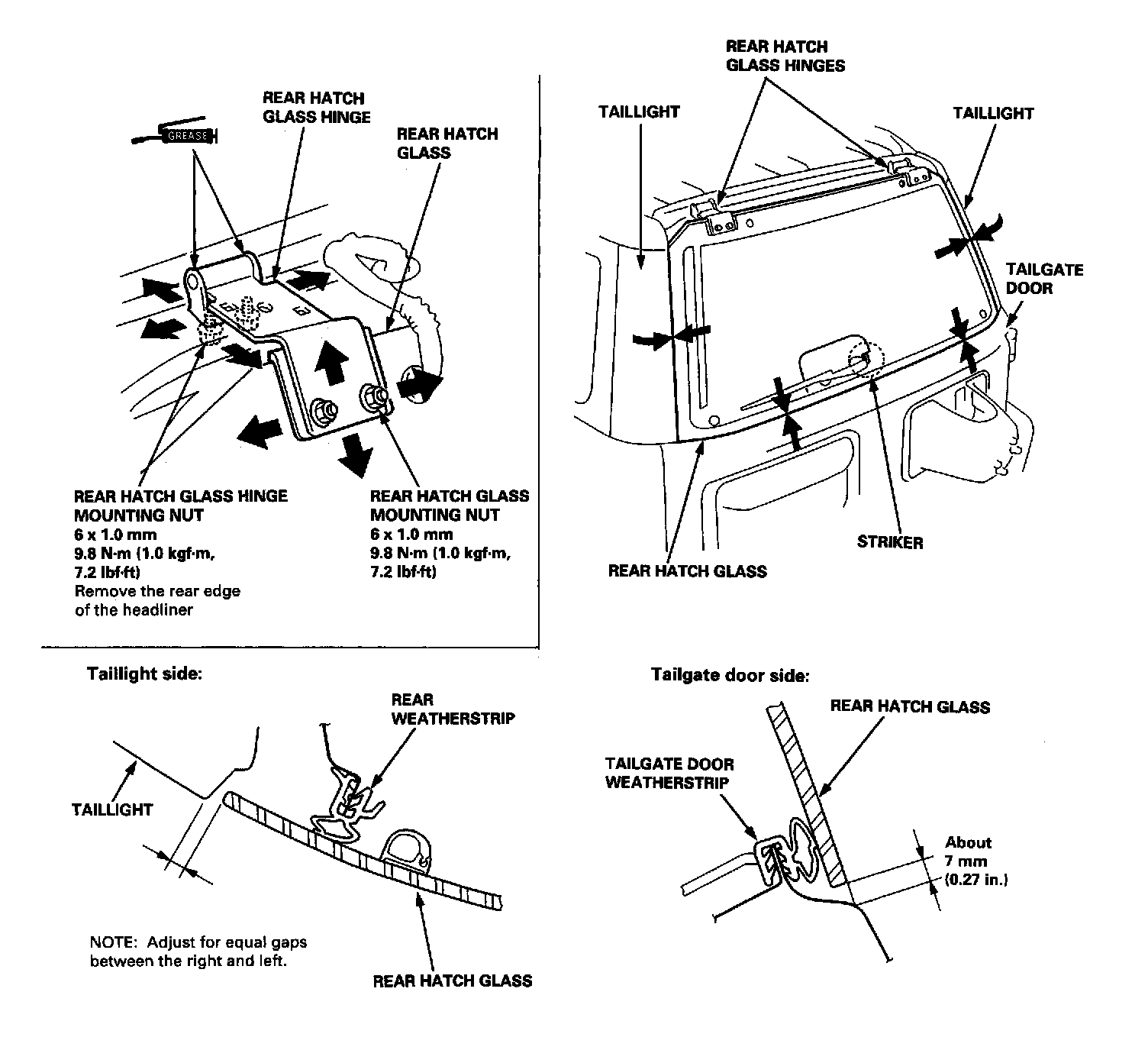

2. Adjust the rear hatch glass so there are equal gaps between the rear hatch glass, the taillights, and the tailgate door.

NOTE: If necessary, loosen the rear hatch glass hinge mounting nuts and move the rear hatch glass backward or forward to fit the rear weatherstrip and tailgate door weatherstrip.

3. After adjusting the rear hatch glass, tighten the rear hatch glass mounting nuts, and install the support strut.




4. Adjust the striker alignment.

NOTE:
- Move the striker fore or aft to make the rear hatch glass fit flush with the tailgate door.

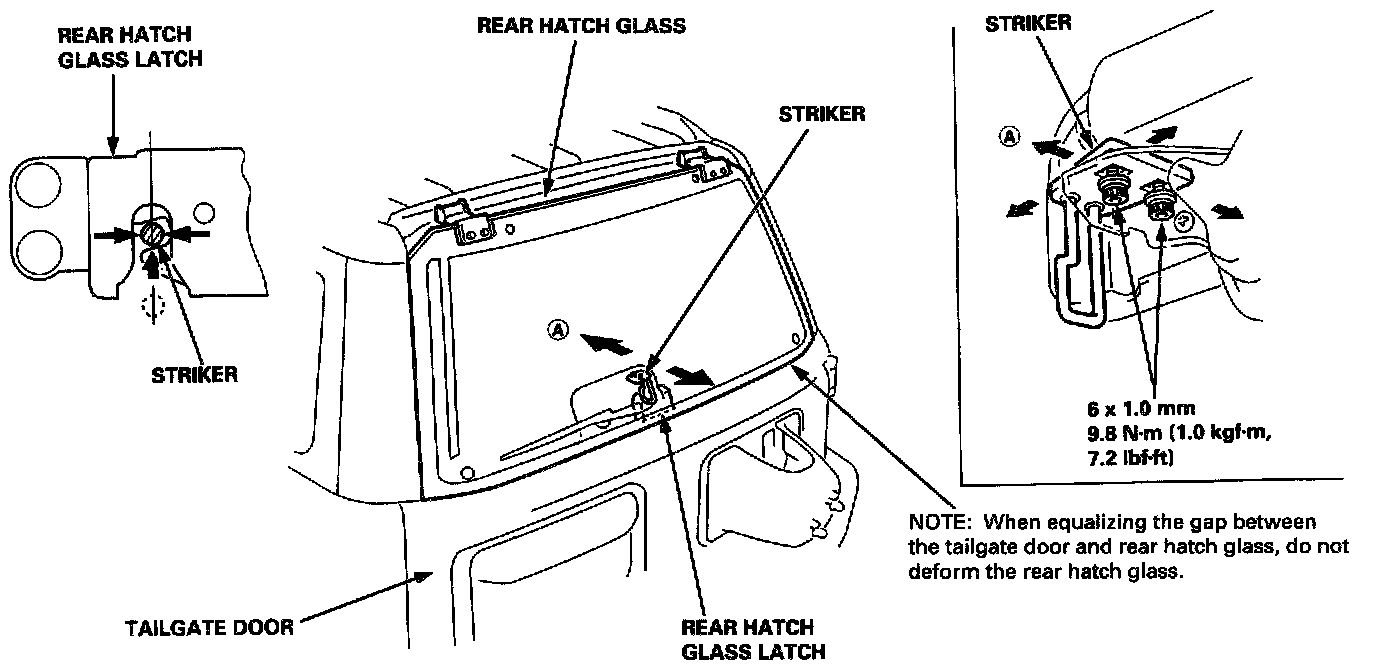

- Move the striker right or left until it's centered in the rear hatch glass latch as shown.

5. Tighten the striker mounting bolts.
6. Recheck the rear hatch glass alignment, and make sure the glass opens properly, and locks securely.




7. Install the rear spoiler, and adjust it.

NOTE: Adjust the rear spoiler so there are four equal gaps between the rear spoiler and the body.

8. Check for water leaks.

NOTE: Do not squeeze the tip of the hose.
