Passenger's Window Switch Test

1. Remove the inner handle.




2. Disconnect the 5P connector then remove the two mounting screws from the passenger's switch.

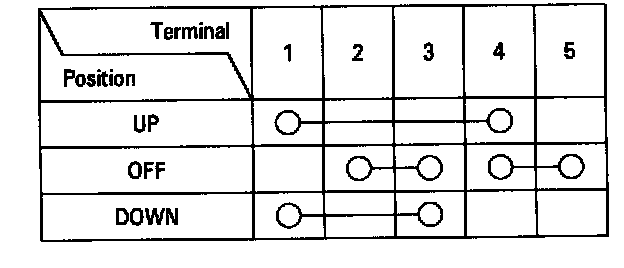

3. Check for continuity between the terminals in each switch position according to the table.
