Heated Glass Element Switch: Testing and Inspection

Input Test

NOTE: Before testing, check for blown No.17 (7.5 A) fuse in the under-dash fuse/relay box.

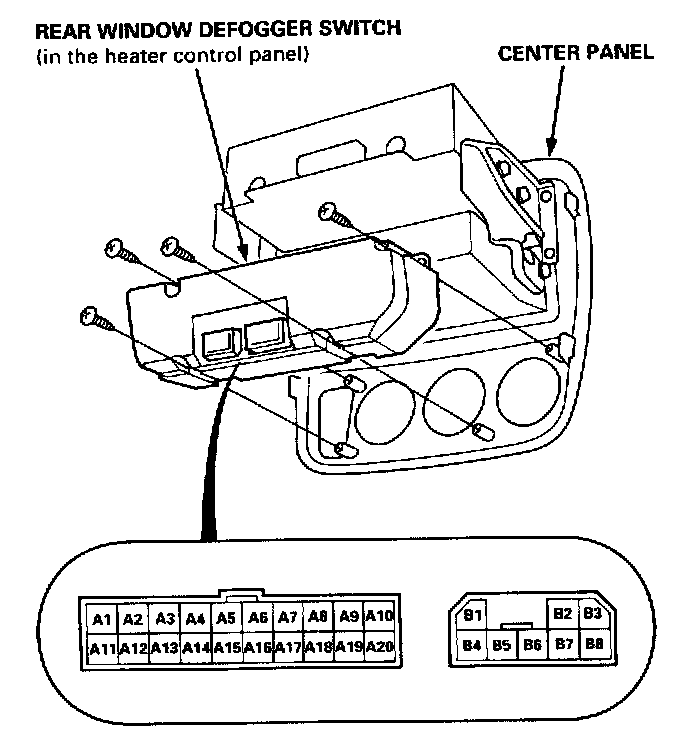

1. Remove the center panel.




2. Check for voltage between the B4 and B7 terminals in each switch position when battery power is connected to the B1 terminal.
