Symptom Troubleshooting Index

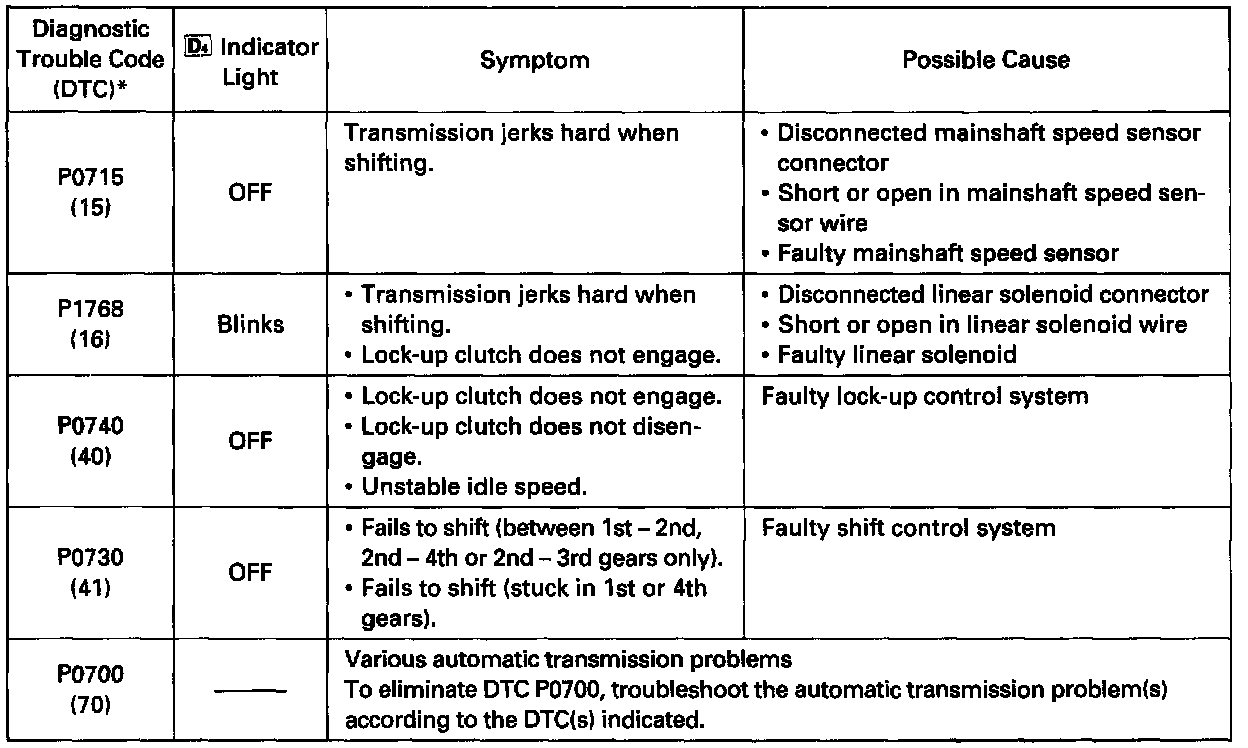

(DTC)*: The DTC in parentheses is the code the [D4] indicator light indicates when the service check connector is connected in the special tool (SCS service connector).

NOTE: When the OBD II Scan Tool or Honda PGM Tester indicate DTC(s) for the automatic transmission control system, the scan tool or tester indicates code P0700 simultaneously. Code P0700 means a detection of some automatic transmission problem in the PGM-FI control system.

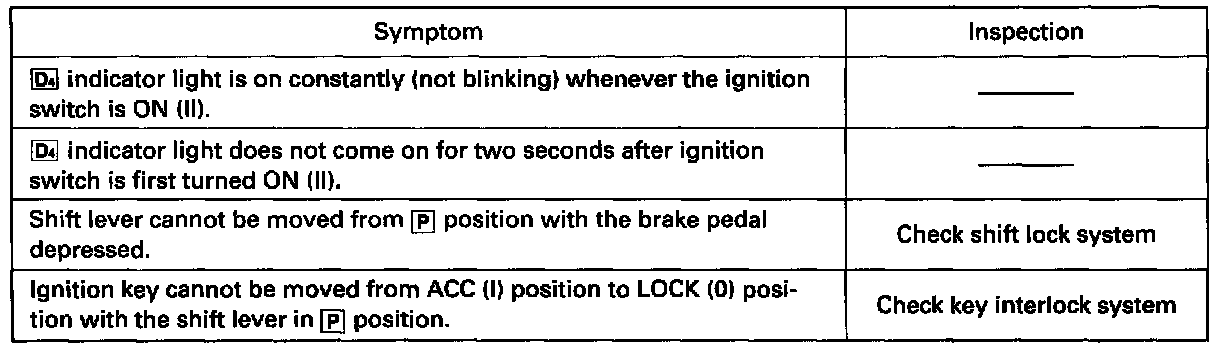

If the self-diagnostic [D4] indicator light does not blink, perform an inspection according to the table below.

NOTE: If a customer describes the symptom for code P1706 (6), it will be necessary to recreate the symptom by test-driving, then recheck the DTC.
