Transmission Speed Sensor: Service and Repair

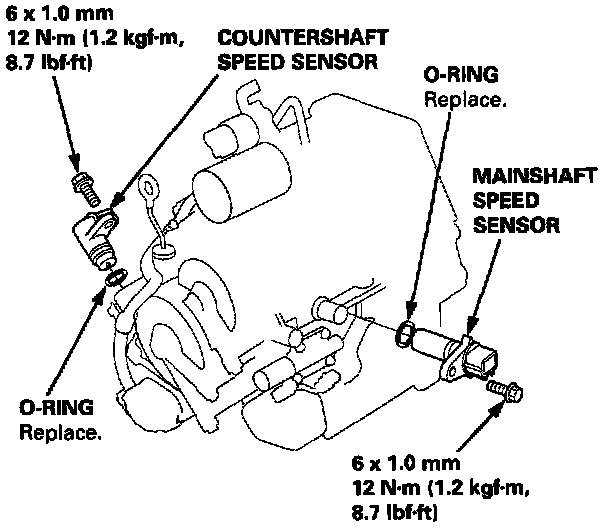

1. Remove the 6 mm bolt and the countershaft speed sensor from the right side cover.
2. Remove the 6 mm bolt and the mainshaft /speed sensor from the transmission housing.
3. Replace the O-ring with a new one before installing the countershaft speed sensor or the mainshaft speed sensor.
