Home >> Honda Truck >> 1997 >> CR-V L4-1972cc 2.0L DOHC MFI >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Relay >> Diagrams

Starter Relay: Diagrams

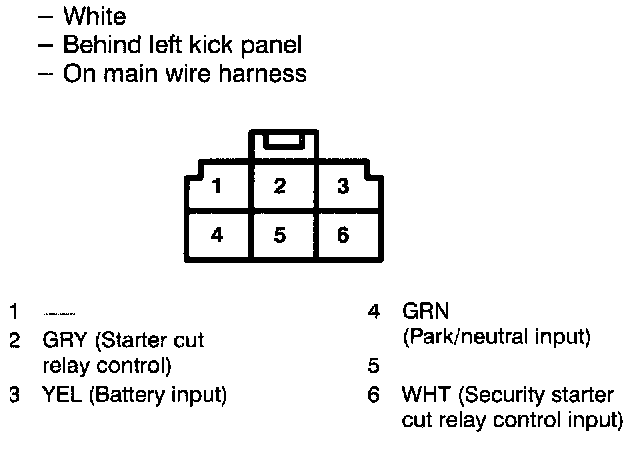

Security Starter Cut Relay - Honda Accessory:
